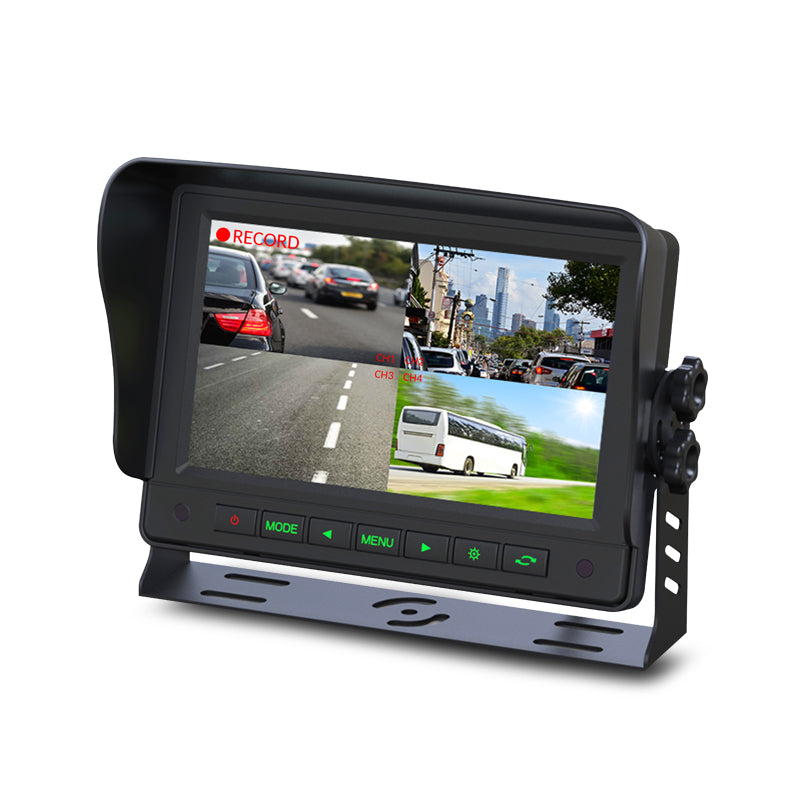

Gator GT704DVR 7" Commercial Grade Dash Mount Quad Display With DVR Function

SKU: GT704DVR
5.0 (1)
Sale price
$422.99
Regular price
$469.99
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Gator GT704DVR 7" Commercial Grade Quad Display Monitor with 4-Channel DVR

A 7-inch commercial grade display for up to 4 cameras single, dual, and quad view, built-in DVR recording to micro SD, PROLINK II connections, PAL/NTSC auto-switching, 12/24V. Monitor only cameras sold separately.

Product Overview

The Gator GT704DVR is a 7-inch commercial grade display monitor with 4 PROLINK II camera inputs and an integrated DVR function. It can display one, two, or four cameras simultaneously in single, dual split-screen, or quad view modes giving operators full all-round vehicle awareness.

The built-in DVR records to a micro SD card (up to 64GB, Class 10 or higher required, sold separately). The DVR records exactly what is displayed on screen — quad view records four cameras in a quad-split, dual view records two cameras in split screen, and single view records one camera.

DVR records in 1-minute loop files and automatically overwrites the oldest footage when the card is full.

Three of the four PROLINK II inputs have automatic reverse trigger capability. PAL/NTSC auto-switches for compatibility with any camera. Heavy duty metal mounting bracket and removable sunshade included.

Monitor only cameras are not included and must be purchased separately.

Features & Benefits

  • 7-inch 1024×600 commercial grade display, 450cd brightness
  • 4 PROLINK II camera inputs (3 with automatic reverse trigger)
  • Single, dual split-screen, and quad display modes
  • Built-in 4-channel DVR — records to micro SD up to 64GB
  • DVR records exactly what is displayed on screen
  • Image flip and reverse (mirror) image — selectable
  • PAL/NTSC auto-switching — compatible with any camera
  • High/low voltage cut-off and built-in short circuit protection
  • 12V/24V compatible
  • Adjustable metal bracket and removable sunshade included
  • Optional windscreen suction mount (GTSM1, sold separately)
  • SD card (Class 10 or higher) required for DVR — sold separately

Technical Specs

Specification Detail
SKU / Part Number GT704DVR
Brand Gator
Series Gator GT
Monitor Size 7.0 inch
Mount Type Adjustable metal bracket
Resolution 1024(H) × 600(V)
Brightness 450 candela
AHD No
Input Voltage 12V/24V
Video Inputs 4 (PROLINK II — 3 with auto-trigger)
Display Modes Single, dual split-screen, quad view
DVR Function Yes — 4-channel, micro SD up to 64GB (Class 10+ required)
DVR Recording 1-minute loop files, records what is displayed on screen
Image Flip Yes — selectable
Reverse Mirror Image Yes — selectable
Video Standard PAL/NTSC auto-switching
Image Adjustment Brightness, contrast, saturation
Connection Type PROLINK II
Circuit Protection High/low voltage cut-off, short circuit protection
Monitor Dimensions 129mm (H) × 195mm (W) × 30mm (D)
Monitor & Bracket 156mm (H) × 215mm (W) × 73mm (D)
Connection Type Wired
Cameras Included No
SD Card Included No

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Universal — heavy trucks, mining, industrial, construction, 4WDs, and commercial vehicles (12V/24V)

Goes Well With:

  • Gator GT50L heavy duty camera (PROLINK II connection)
  • Gator GT18AHD 720P AHD ball camera (confirm AHD compatibility with GT704DVR before purchasing)
  • Gator G354C heavy duty camera (with PROLINK II to RCA adaptor)
  • Gator GTSM1 windscreen suction mount (sold separately)
  • Class 10 or higher micro SD card up to 64GB (sold separately)

Frequently Asked Questions

Does the DVR record all four cameras simultaneously?

The DVR records exactly what is displayed on the monitor — not four independent streams. If quad view is selected, the DVR records the quad-split as displayed. If two cameras are shown in split screen, the DVR records two cameras in split screen. Individual camera recording is not supported.

What SD card does the GT704DVR require?

A Class 10 or higher micro SD card up to 64GB capacity. Class 10 is the minimum required for reliable DVR recording — lower speed cards may cause recording errors. The SD card is sold separately.

What is the difference between the GT704DVR and the GT700SD?

Both are 7-inch commercial monitors with PROLINK II connections and 12/24V compatibility. The GT700SD has 3 inputs and no DVR. The GT704DVR has 4 inputs, a built-in DVR, single/dual/quad display modes, and higher resolution (1024×600 vs 800×480). The GT704DVR is the more capable and higher-specified monitor.

Are cameras included with the GT704DVR?

No. The GT704DVR is a monitor only. Cameras with PROLINK II connectors (such as the Gator GT50L or GT14SD) must be purchased separately and connected via PROLINK II cables or adaptors.

Can this monitor be used with non-Gator cameras?

The GT704DVR uses PROLINK II connections. Non-Gator cameras with standard RCA output can be connected using a PROLINK II to RCA adaptor. PAL/NTSC auto-switching ensures compatibility with cameras in either format.
