Product features

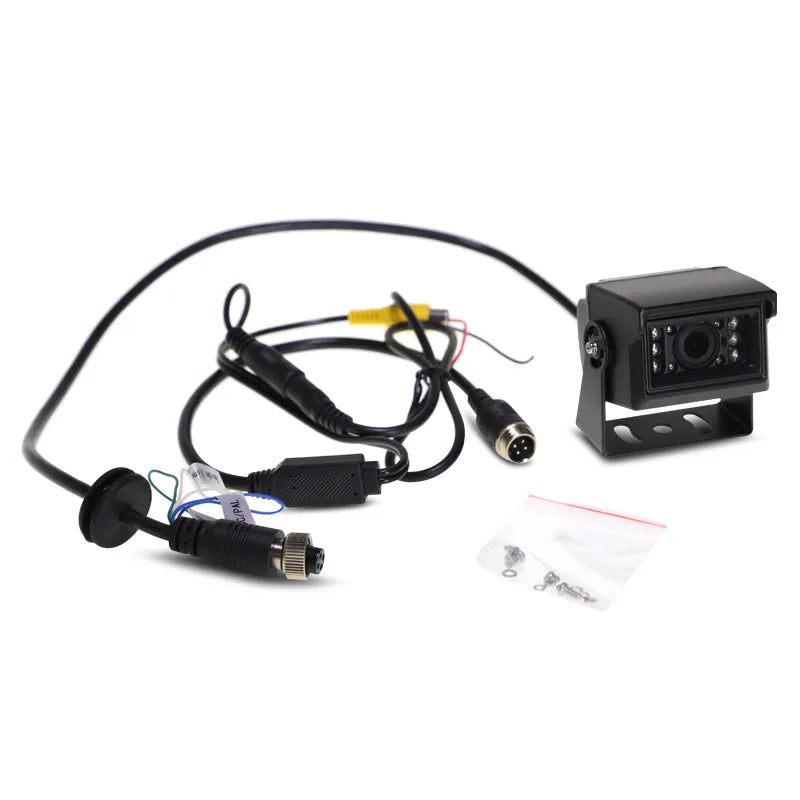

Gator GT50L Heavy Duty Surface Mount Camera, U-Bracket, IP68, Loop System

A heavy duty surface mount camera for trucks, mining loaders, and industrial vehicles IP68 rated, 120-degree CMOS, 10 infrared LEDs, PAL/NTSC and gridlines switchable via loop system, PROLINK II connector with RCA adaptor included. 12V and 24V compatible.

Product Overview

The Gator GT50L is a heavy duty surface mount camera from the Gator GT range, housed in a U-shaped mounting bracket for versatile positioning on trucks, mining equipment, and industrial vehicles. The U-bracket allows the camera to be angled for optimal coverage.

IP68 rated for continuous water submersion protection and resistant to mud and debris. Ten infrared LEDs provide 0.01 lux night vision for operations in extremely dark environments.

Three wire loops allow installer-adjustable settings:

  • Blue loop: Default NTSC → cut for PAL
  • Green loop: Default no gridlines → cut for parking gridlines
  • White loop: Default rear view image → cut for reverse (mirror) image

A PROLINK II to RCA adaptor is included, enabling connection to both Gator GT PROLINK II display systems and standard RCA monitors.

12V/24V compatible suitable for both passenger-sized vehicles and heavy commercial vehicles.

Features & Benefits

  • Heavy duty U-bracket surface mount for flexible angle adjustment
  • IP68 rated — continuous water submersion protection
  • 120-degree wide-angle CMOS lens — eliminates blind spots
  • 10 infrared LEDs — 0.01 lux night vision
  • PAL/NTSC switchable via blue loop
  • Switchable gridlines via green loop
  • Switchable rear view / reverse image via white loop
  • PROLINK II connector with PROLINK II to RCA adaptor included
  • 12V/24V compatible
  • Adjustable sunshade included
  • Aluminium case

Technical Specs

Specification Detail
SKU / Part Number GT50L
Brand Gator
Series Gator GT
Application Heavy vehicles — trucks, mining, industrial, construction
Mount Type Surface mount — U-shaped bracket
Image Sensor CMOS
AHD No
Lens Angle 120 degrees
Video Standard PAL/NTSC switchable (default NTSC)
Parking Gridlines Switchable on/off — default OFF (green loop)
View / Image Switchable rear view / reverse — default rear view (white loop)
IP Rating IP68
Voltage 12V / 24V
Minimum Illumination 0.01 lux (infrared)
LEDs 10 × infrared
Camera Connector PROLINK II
Adaptor Included PROLINK II to RCA adaptor
Cable Length 400mm (camera to PROLINK II connector)
Reverse Trigger N/A
Camera Dimensions 42mm (H) × 52mm (W) × 55mm (L)
Camera & Housing Dimensions 60mm (H) × 63mm (W) × 55mm (L)
Connection Type Wired
Other Features Adjustable sunshade included, loop system

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Universal — heavy trucks, mining loaders, construction and industrial vehicles

Goes Well With:

  • Gator GT PROLINK II display monitors and DVR systems
  • Standard RCA display monitors and head units (via included PROLINK II to RCA adaptor)
  • Gator G354C (non-loop standard heavy duty camera — for comparison)
  • Gator GT18AHD (AHD 720P ball camera — for comparison)

Frequently Asked Questions

What loop cuts are required for a standard Australian PAL installation?

The GT50L defaults to NTSC. For a standard Australian PAL installation — cut the blue loop to switch to PAL. Cut the white loop if a mirror (reverse) image is also needed. Cut the green loop if parking gridlines are required.

Can this camera connect to a standard RCA monitor?

Yes. Unlike the GT18AHD (AHD only), the GT50L includes a PROLINK II to RCA adaptor that allows connection to both Gator GT PROLINK II displays and standard RCA monitors.

What is the difference between IP67, IP68, and IP69K?

IP67 protects against temporary water submersion (up to 1m for 30 minutes). IP68 protects against continuous water submersion at greater depths (manufacturer-specified). IP69K protects against high-pressure, high-temperature water jets. The GT50L's IP68 rating makes it suitable for continuous wet environments and submersion, but not high-pressure hosing (for that, see the GT18AHD at IP69K).

How many infrared LEDs does this camera have and what does that mean for night vision?

The GT50L has 10 infrared LEDs and a minimum illumination of 0.01 lux — providing clear vision in near-total darkness. This is significantly better than 0.2 lux cameras, which require some ambient light, and matches the performance of the GT18AHD (0 lux with 6 LEDs).

Is this camera suitable for 24V commercial vehicles?

Yes. The GT50L accepts both 12V and 24V input, making it suitable for heavy commercial trucks and buses as well as standard passenger vehicles.
