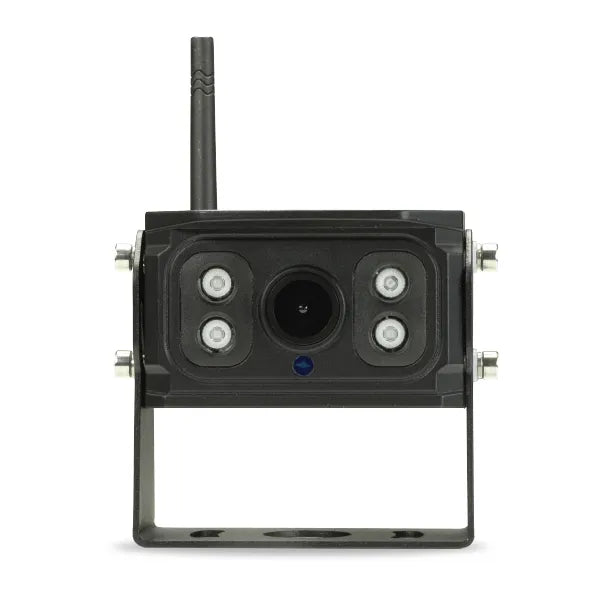

Gator GRVC7W Wireless 1080P HD Camera Suit Gator GRV7HDW

Extra Wireless 1080P Camera for Your Gator GRV7HDW 200m Range, IP69K, Night Vision.

Product Overview

The Gator GRVC7W is an optional additional wireless 1080P HD camera designed exclusively for use with the Gator GRV7HDW 7″ Wireless IPS Display Reverse Camera Kit. Adding one or more GRVC7W cameras to your GRV7HDW setup allows you to build up to 360-degree surround coverage of your vehicle, with the 110-degree wide-angle lens on each camera providing broad field of view coverage from multiple angles.

The GRVC7W connects wirelessly to the GRV7HDW monitor at up to 200 metres range via 2.4GHz digital wireless technology no additional cable runs required between camera and monitor. Four infrared LEDs deliver clear night vision performance down to 0.1 LUX, while the IP69K weatherproof rating ensures the camera withstands high-pressure, high-temperature wash-down conditions and harsh outdoor environments. The surface mount U-shaped bracket and 12/24V compatibility make installation straightforward across a wide range of vehicles. Parking guidelines are also available via the loop system.

Important: This camera is only compatible with the Gator GRV7HDW 7″ Wireless IPS Display Reverse Camera Kit. It is not compatible with any other brand or model.

Key Specifications

• Compatible with: Gator GRV7HDW only
• Resolution: 1080P HD
• Lens angle: 110-degree
• Image sensor: CMOS
• Wireless frequency: 2.4GHz
• Wireless range: Up to 200m (paired with GRV7HDW)
• Night vision: Yes 4 Infrared LEDs, 0.1 LUX minimum illumination
• IP rating: IP69K
• Parking guidelines: Yes (loop system)
• Voltage: 12V / 24V
• Mount type: Surface mount U-shaped bracket
• Antenna height: 70mm
• Camera dimensions: 77mm (W) x 47mm (H) x 81mm (D)
• Camera and bracket dimensions: 81mm (W) x 65mm (H) x 80mm (D)
• Weight: 0.40kg
• Brand: Gator
• SKU: GRVC7W

Features & Benefits

• 1080P HD wireless streaming: Delivers razor-sharp 1080P HD video to the GRV7HDW monitor wirelessly, maintaining high-definition image quality without cable runs
• Up to 200m wireless range: Digital 2.4GHz wireless technology provides up to 200 metres of range when paired with the GRV7HDW, eliminating cable routing across long vehicles such as caravans, trailers, and trucks
• 110-degree wide-angle lens: Broad field of view on each camera means multiple GRVC7W units can be combined to achieve up to 360-degree surround coverage around your vehicle
• 4 Infrared LEDs 0.1 LUX night vision: Clear night vision performance in low-light and no-light conditions, essential for reversing in poor lighting environments
• IP69K weatherproof rating: The highest waterproof rating available for automotive cameras withstands high-pressure, high-temperature water jets and harsh outdoor environments year-round
• Parking guidelines via loop system: Optional parking gridline overlay can be enabled or disabled via the loop wire system without menu access
• 12V and 24V compatible: Suits cars, utes, vans, trucks, and caravans across both 12V and 24V electrical systems
• Surface mount U-shaped bracket: Flexible mounting suitable for rear, side, or front camera positions on a wide range of vehicle body types

Technical Specs

Compatible With

Compatible with:

• Gator GRV7HDW 7″ Wireless IPS Display Reverse Camera Kit confirmed compatible (required)

Frequently Asked Questions

Is this camera compatible with monitors other than the Gator GRV7HDW?

No the GRVC7W is exclusively compatible with the Gator GRV7HDW 7″ Wireless IPS Display Reverse Camera Kit. It is not compatible with any other Gator model or third-party monitor. Always confirm you own the GRV7HDW before purchasing.

How many GRVC7W cameras can I add to my GRV7HDW system?

The GRV7HDW supports multiple GRVC7W cameras simultaneously, enabling up to 360-degree surround coverage around your vehicle. Refer to the GRV7HDW documentation for the maximum number of supported cameras.

What does the IP69K rating mean?

IP69K is the highest level of waterproof protection available for automotive cameras. It certifies the camera can withstand close-range, high-pressure, and high-temperature water jet spraying making it suitable for vehicles in harsh outdoor, agricultural, and wash-down environments.

Does this camera have parking guidelines?

Yes optional parking guidelines are available via the loop system. The guideline overlay can be enabled or disabled by adjusting the relevant loop wire without requiring menu access.

What is the wireless range of this camera?

The GRVC7W operates on 2.4GHz digital wireless technology and provides up to 200 metres of wireless range when paired with the GRV7HDW monitor suitable for long vehicles including trucks, caravans, and trailers.
