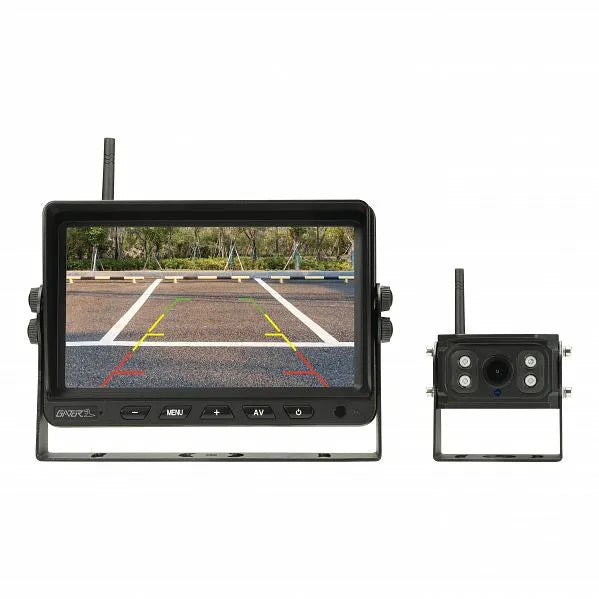

Gator GRV7HDW 7" IPS Display Digital Wireless 1080P HD Camera Kit

7″ IPS Wireless 1080P HD Camera Kit Up to 4 Cameras, 200m Range, IP69K, Loop Recording.

Product Overview

The Gator GRV7HDW is a premium 7″ IPS display wireless 1080P HD camera kit built for drivers who need comprehensive, reliable all-around vehicle coverage. Where the GRV5HDW provides single-camera coverage, the GRV7HDW steps up with support for up to four wireless cameras simultaneously enabling split and quad display views for true 360-degree coverage of your vehicle and surroundings when paired with additional GRVC7W cameras (sold separately).

The 7″ IPS display delivers 500 cd luminance for excellent sunlight visibility, while the included 1080P HD camera records at 1920 x 1080 resolution across a 110-degree wide-angle field of view. Digital wireless technology at 2.4GHz provides up to 200 metres of cable-free range ideal for trucks, caravans, trailers, and large commercial vehicles. Four infrared LEDs deliver clear night vision performance down to 0.1 LUX, and the IP69K-rated camera withstands high-pressure, high-temperature wash-down conditions year-round. Loop recording in 1, 3, or 5-minute segments adds a security and incident documentation layer to every journey. Compatible with 10–32V systems and designed for user-friendly adhesive or bracket mounting.

Key Specifications

• Display: 7″ IPS
• Monitor resolution: 1024 x 600
• Camera resolution: 1920 x 1080 (1080P HD)
• Lens angle: 110-degree
• Wireless frequency: 2.4GHz
• Wireless range: 200 metres
• Maximum cameras: Up to 4 wireless cameras
• Display modes: Single, split, quad
• Loop recording: 1, 3, or 5-minute segments
• Luminance: 500 cd
• Light sensitivity: 0.1 LUX (IR on)
• Electronic shutter: Auto
• Night vision: 4 Infrared LEDs
• IP rating: IP69K
• Power supply: 10–32V DC (car socket or hardwired)
• Monitor dimensions: 197mm (L) x 62.3mm (W) x 136mm (H)
• Camera dimensions: 81mm (L) x 65mm (W) x 80mm (H)
• Weight: 2.90kg
• Brand: Gator
• SKU: GRV7HDW

Features & Benefits

• 7″ IPS display 500 cd luminance: Large, bright IPS display with superior sunlight visibility for clear monitoring in direct Australian outdoor conditions
• 1080P HD wireless streaming: 1920 x 1080 resolution delivers sharp, detailed footage for accurate vehicle monitoring and incident documentation
• Up to 4 wireless cameras: Expand from single-camera to full quad-camera coverage by adding optional GRVC7W cameras (sold separately), with split and quad display modes for 360-degree surround monitoring
• 200m digital wireless range: 2.4GHz wireless technology provides up to 200 metres of cable-free connectivity suitable for the longest trucks, caravans, and trailers
• Loop recording in 1, 3, or 5-minute segments: Continuous loop recording ensures footage is always captured and critical incident moments are preserved with configurable segment lengths
• 4 Infrared LEDs 0.1 LUX night vision: Clear, reliable night vision in low-light and no-light conditions for 24/7 reversing and monitoring safety
• IP69K weatherproof rating: Highest-grade automotive waterproofing, resistant to high-pressure, high-temperature water jet exposure and harsh outdoor environments
• Optional parking guidelines: Parking line overlay available to assist with precision manoeuvring in tight spaces
• 12V and 24V compatible: Suits passenger vehicles, commercial trucks, caravans, and trailers across both 12V and 24V electrical systems
• User-friendly adhesive and bracket mounting: Adhesive mounting and included bracket minimise installation time and complexity

Technical Specs

What's in the Box

• 7″ Wireless IPS Monitor
• Wireless 1080P HD Reverse Camera
• Monitor Mount
• Sunvisor
• 1.5m Monitor Cable
• 1.7m Power Adaptor (DC Jack)
• 2.5m Camera Cable

Compatible With

Universal suits all 10–32V vehicles including:

• Passenger cars, utes, vans, and SUVs
• Trucks and heavy commercial vehicles
• Caravans and trailers
• Agricultural and construction equipment

Frequently Asked Questions

How many cameras can the GRV7HDW support?

The GRV7HDW supports up to four wireless cameras simultaneously, enabling split and quad display modes for comprehensive 360-degree surround coverage. One camera is included in this kit. Up to three additional Gator GRVC7W cameras (sold separately) can be added.

What display modes are available on the GRV7HDW?

The GRV7HDW offers single, split, and quad display modes, allowing you to monitor one, two, or four camera feeds simultaneously on the 7″ IPS display.

How does loop recording work?

Loop recording captures footage in configurable 1, 3, or 5-minute segments on a continuous basis. When storage is full, the oldest segments are automatically overwritten by new recordings, ensuring footage is always being captured without manual SD card management.

What is the wireless range of the GRV7HDW system?

The GRV7HDW operates on 2.4GHz digital wireless technology with a range of up to 200 metres between each camera and the monitor suitable for long caravans, trailers, and heavy trucks.

Is the GRV7HDW compatible with the GRVC7W additional cameras?

Yes the Gator GRVC7W wireless 1080P HD camera is the confirmed compatible additional camera for the GRV7HDW. Up to three additional GRVC7W cameras can be added to reach the four-camera maximum.
