Gator GRV70TKT 7
Click to open expanded view
GATOR logo

Discontinued

Gator GRV70TKT 7" Caravan/Trailer Rear View Camera Kit

SKU: GRV70TKT

No Longer Available. Please contact us for recommendations or alternatives. (02) 4257-2636

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Gator GRV70TKT 7" Caravan & Trailer Reverse Camera Kit

A purpose-built towing reverse camera kit 7-inch display with mirror image, vehicle camera (IP67, gridlines), heavy duty trailer camera (IP68, 10 IR LEDs), quick-connect trailer system, PROLINK II, 12/24V.

Product Overview

The Gator GRV70TKT is a complete reverse camera kit designed specifically for vehicles towing caravans and trailers. It includes a 7-inch display, two cameras, and a quick-connect trailer connection system for easy attach and detach.

Vehicle camera (small, IP67): Compact surface mount CMOS, 120-degree, parking guidelines built in, PROLINK II. Connects via 6m main cable.

Trailer camera (large, IP68): Heavy duty CMOS, 120-degree, 10 infrared LEDs for night vision, PROLINK II. Connects via 10m extension cable. Parking guidelines can be activated via the monitor's menu settings.

The trailer camera takes priority over the vehicle camera when reverse gear is engaged displaying the trailer rear first. Both cameras can also be activated on demand via the channel buttons on the display. A third PROLINK II input accepts an additional camera if needed.

Features & Benefits

  • Purpose-built for towing — two cameras (vehicle + trailer) with quick-connect system
  • 7-inch 800×480 colour display, 350cd, 16:9
  • Mirror image supported — use as reverse or rear view
  • Trailer camera takes priority on reverse
  • IP67 vehicle camera with built-in parking guidelines
  • IP68 heavy duty trailer camera with 10 IR LEDs — night vision
  • Quick-connect trailer system — easy attach/disconnect
  • 3 camera inputs (PROLINK II) — third input for optional extra camera
  • PAL/NTSC auto-switching
  • 12/24V compatible — 4WDs, light commercial vehicles, cars
  • High/low voltage and short circuit protection

Technical Specs

Monitor:

Specification Detail
Display Size 7 inch
Resolution 800 × 480
Brightness 350cd
Aspect Ratio 16:9
Video Inputs 3 (PROLINK II, all with trigger)
Video Standard PAL/NTSC auto-switching
Mirror Image Yes
Rear View Delay 0–15 seconds (adjustable)
Protection High/low voltage, short circuit

Vehicle Camera (Small):

Specification Detail
Image Sensor CMOS
Lens Angle 120 degrees
IP Rating IP67
Parking Guidelines Yes — built in
Connection Type 4-pin PROLINK II

Trailer Camera (Large):

Specification Detail
Image Sensor CMOS
Lens Angle 120 degrees
IP Rating IP68
Parking Guidelines Via monitor menu settings
IR LEDs 10
Connection Type 4-pin PROLINK II

Kit:

Specification Detail
Connection Type Wired (PROLINK II)
Weight 1.00 kg

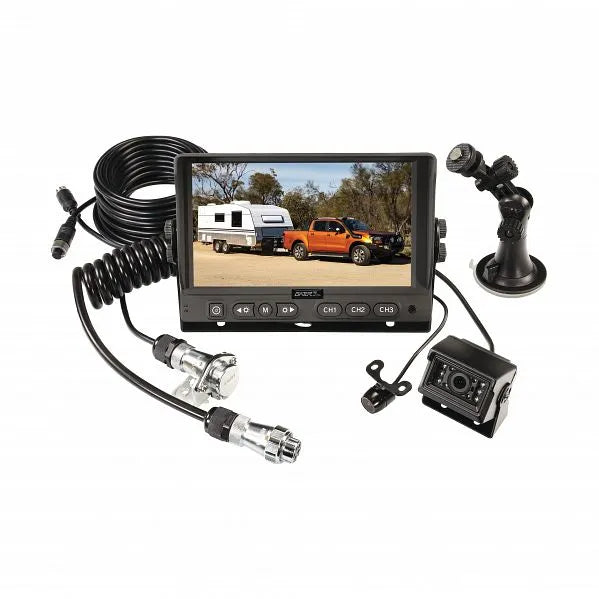

Includes 7" monitor, windscreen & dash mounts, detachable sunshade, vehicle camera, heavy duty trailer camera, 6m main cable, 10m extension cable, trailer connection kit

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Universal — 12V/24V vehicles towing caravans, trailers, or horse floats

Goes Well With:

  • Additional camera for third PROLINK II input (optional)
  • Gator PLC10, PLC15, PLC20 PROLINK II extension cables (for very long trailer setups)

Frequently Asked Questions

What is the difference between the GRV70TKT and the GT70SDTK?

Both are 7-inch towing reverse camera kits with two cameras and a quick-connect trailer system. The GRV70TKT uses a standard 7-inch RCA-style display (PAL/NTSC, mirror image, windscreen/dash mounts, 350cd). The GT70SDTK uses the Gator GT commercial PROLINK II monitor platform (also 7-inch, 350cd, but commercial grade with heavier-duty PROLINK connections throughout). Confirm which platform better suits your vehicle and use case with the F.A.E. team.

Which camera displays when I engage reverse?

The trailer camera takes priority — when reverse gear is engaged, the trailer rear view displays automatically. The vehicle camera and trailer camera can both be activated manually at any time using the channel select buttons on the display.

Can parking guidelines be displayed on the trailer camera?

The trailer camera does not have built-in parking guidelines, but the monitor has a parking line overlay option in the menu settings — this can be enabled to display guidelines over the trailer camera feed.

Can I add a third camera to this system?

Yes. The monitor has three PROLINK II inputs (vehicle camera, trailer camera, and one spare). A third camera — such as a side camera — can be added to the third input.

Is this kit suitable for horse floats?

Yes. The IP68-rated trailer camera, quick-connect system, and 10m extension cable make the GRV70TKT well suited to horse float use. The quick-connect system allows the float to be attached and detached quickly without re-wiring.

Weight

1.00 kg
