Gator GRV43KT 4.3" Dash Mount Display Reverse Camera Kit

SKU: GRV43KT
Sale price
$121.49
Regular price
$134.99
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

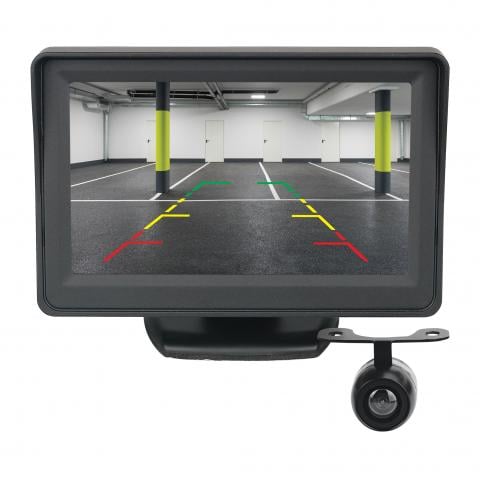

Gator GRV43KT 4.3" Dash Mount Reverse Camera Kit

A complete wired reverse camera kit for almost any vehicle 4.3-inch 500cd high-brightness dashboard monitor, 150-degree IP67 butterfly mount camera with built-in gridlines, 5.5m cable. Two camera inputs for optional front camera expansion.

Product Overview

The Gator GRV43KT is a complete wired reverse camera kit comprising a 4.3-inch dashboard display and a butterfly mount reverse camera. The high-brightness 500cd display is mounted on the dashboard via an adjustable adhesive mount, while the compact IP67-rated CMOS camera mounts on the rear of the vehicle via a butterfly surface mount.

The monitor features two video inputs a second or front camera can be added to expand the system's viewing capabilities. Picture adjustment buttons (brightness, contrast, saturation) are located on the rear of the monitor for a clean front face.

Features & Benefits

  • 4.3-inch 480×272 colour display, 500cd high brightness — clear day and night viewing
  • Adjustable adhesive dashboard mount
  • 150-degree wide angle camera lens — eliminates rear blind spots
  • IP67 rated camera — waterproof and dust-proof
  • Built-in parking gridlines
  • 5.5m video cable with reverse trigger
  • Two camera video inputs — add a second or front camera
  • Easy wired installation for DIY enthusiasts

Technical Specs

Monitor:

Specification Detail
Monitor Size 4.3 inch
Mount Type Adjustable adhesive dashboard mount
Resolution 480(H) × 272(V)
Brightness 500 candela
Input Voltage 12V
Video Inputs 2 (RCA)
Display Configuration Single
Image Flip No
Reverse Mirror Image No
Video Standard PAL/NTSC
Image Adjustment Brightness, contrast, saturation
Monitor Dimensions 88mm (H) × 116mm (W) × 34mm (D)

Camera:

Specification Detail
Mount Type Butterfly surface mount
Camera Type Reverse
Lens Angle 150 degrees
Image Sensor CMOS
Parking Gridlines Yes — built in
Video Standard NTSC
IP Rating IP67
Input Voltage 12V
Minimum Illumination 0.2 lux
Camera Connector 4-pin micro DIN plug
Monitor Connector RCA
Video Cable Length 5.5m
Reverse Trigger on Cable Yes
Camera Dimensions 18mm (H) × 38mm (W) × 30mm (L)

Kit:

Specification Detail
Connection Type Wired

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Universal — suitable for any 12V vehicle

Goes Well With:

  • Second or front camera (for use with the second video input)
  • Gator G55CL or G30CL cameras (as a second camera on the second input)
  • Gator GRCANFLT CANBUS filter (for CANBUS vehicles experiencing interference)

Frequently Asked Questions

Does the monitor display a mirrored (reverse) image?

No. The GRV43KT monitor does not have an image flip function. The camera outputs in rear view orientation (non-mirrored). Most reversing cameras display a mirrored image — confirm whether non-mirrored suits your preference before purchasing, or contact the F.A.E. team for advice.

Can I add a second camera to this system?

Yes. The GRV43KT monitor has two RCA video inputs — a second camera (such as a front view camera) can be added and switched between on the monitor.

Is this kit compatible with my vehicle?

The GRV43KT is a universal 12V kit compatible with virtually any passenger car, van, ute, or SUV. It is not designed for 24V commercial vehicles.

What type of camera mount does this kit include?

The included camera uses a butterfly surface mount — a compact low-profile bracket that mounts the camera on a flat or slightly curved surface on the vehicle exterior. No drilling is required for the standard butterfly mount.

Is the installation suitable for a DIY enthusiast?

Yes. The GRV43KT is designed for straightforward DIY installation — the camera mounts with the butterfly bracket, the monitor attaches via adhesive to the dashboard, and the cable connects between them. The reverse trigger wire connects to the reverse light circuit to activate the display automatically.
