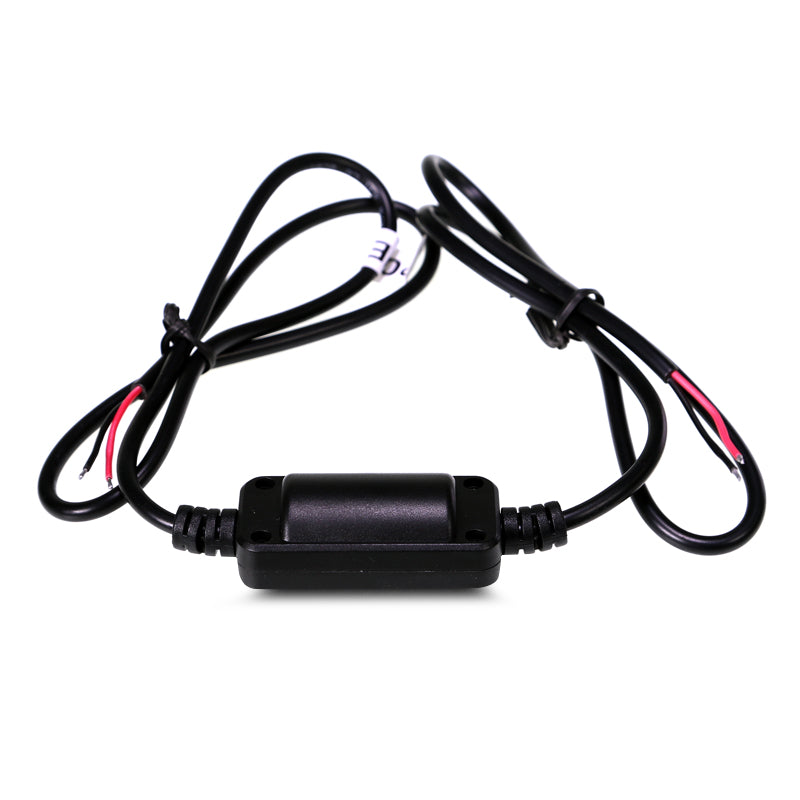

Gator GRCANFLT CANBUS Filter For Reverse Systems

Gator GRCANFLT CANBUS Filter for Reverse Camera Systems

Eliminates video signal interference caused by CANBUS electrical systems when installing a reverse camera compatible with all CANBUS vehicles and all Gator reversing systems.

Product Overview

The Gator GRCANFLT is a CANBUS filter designed for use when installing reverse cameras into CANBUS-equipped vehicles. Many modern vehicles use CANBUS (Controller Area Network Bus) electrical systems, which can introduce interference into reverse camera video signals appearing as noise, flickering, or distortion on the display. The GRCANFLT filters this interference, providing a clean video signal between the camera and the display.

Compatible with all CANBUS vehicles and all Gator reversing systems.

Features & Benefits

• Eliminates CANBUS-induced video signal interference in reverse camera systems
• Compatible with all CANBUS vehicles
• Compatible with all Gator reversing camera systems
• Simple inline installation between camera and display

Technical Specs

Compatible With / Goes Well With

Direct Vehicle Fit:

• Universal: compatible with all CANBUS vehicles

Goes Well With:

• All Gator reverse camera systems
• Gator G45CL, G55CL, G30CL universal cameras (when installed in CANBUS vehicles)
• Gator G12VS, G15VS, G110VS vehicle-specific cameras (when used in CANBUS vehicles)
• Aftermarket head units with reverse camera input in CANBUS vehicles

Frequently Asked Questions

What is CANBUS and why does it cause camera interference?

CANBUS (Controller Area Network Bus) is a vehicle communication system used in most modern vehicles to allow the various electronic control units (ECUs) to communicate with each other. The electrical signals on the CANBUS network can induce interference into camera video signals: particularly visible as flickering, noise, or rolling lines on the display when the reverse camera is active.

How do I know if my vehicle is CANBUS?

Most vehicles manufactured after approximately 2005 to 2008 use CANBUS. If you are experiencing interference on your reverse camera display that wasn't present before installation, CANBUS interference is a likely cause. Confirm whether your vehicle uses CANBUS with the F.A.E. team.

Is the GRCANFLT required for every CANBUS vehicle installation?

Not necessarily. Some CANBUS vehicle installations do not experience interference, while others do. The GRCANFLT is the solution when interference is observed. It may be worth having on hand when installing a reverse camera in a newer CANBUS vehicle as a precaution.

How is the GRCANFLT installed?

The GRCANFLT is installed inline in the video signal cable between the reverse camera and the display or head unit. Specific wiring instructions will depend on your camera and vehicle. Contact the F.A.E. team for installation guidance.

Is this filter compatible with non-Gator reverse cameras?

The GRCANFLT is specified as compatible with all Gator reversing systems. Compatibility with non-Gator camera systems is not confirmed in the available supplier data. Contact the F.A.E. team to confirm.

Weight

0.20 kg
