Product features

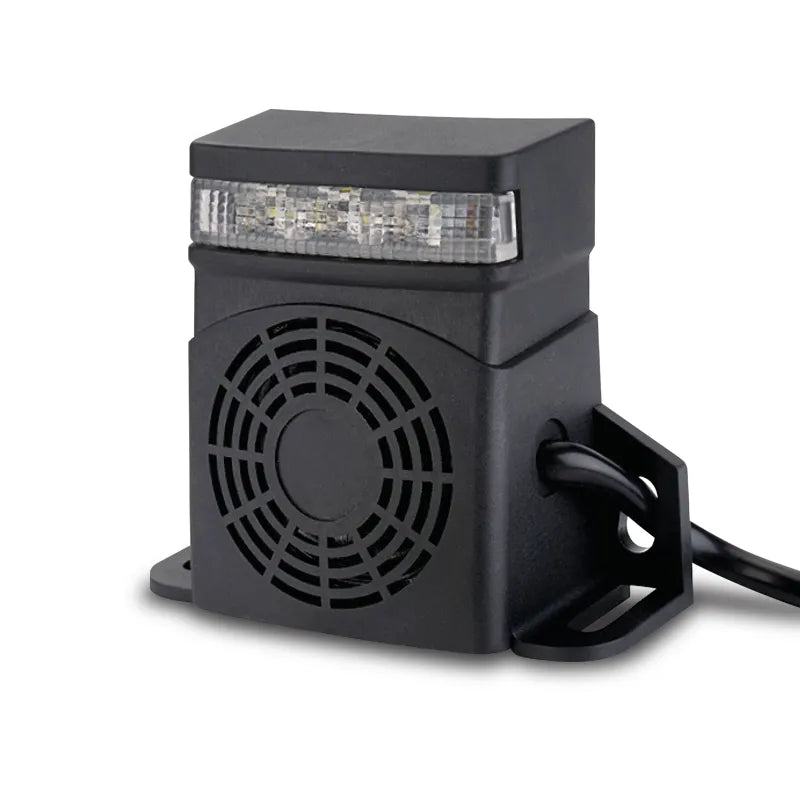

Gator GHDRASLD Heavy Duty Squawker Back-Up Alarm with Flashing White LED, 105dB, IP67

A combined audible and visual reverse warning 105dB squawk alarm with a flashing white LED. IP67 rated, 12–80V, nylon housing, –40°C to +80°C. Suits trucks, trailers, loaders, forklifts, utes, vans, and 4WDs.

Product Overview

The Gator GHDRASLD is a heavy duty reverse alarm that combines a 105dB squawk-type audible alarm with a flashing white LED providing both audible and visual warnings to pedestrians and workers when the vehicle is reversing.

12V to 80V DC input range makes it compatible with standard 12V vehicles, 24V commercial trucks, 48V electric forklifts, and other high-voltage machinery. IP67 rated nylon housing withstands harsh industrial environments. Wire-type connections for straightforward installation.

Key upgrade over GHDRASQ: The GHDRASLD adds a flashing white LED visual alert and extends the voltage range from 12–24V to 12–80V.

Features & Benefits

  • 105dB (±4dB) squawk-type reverse alarm
  • Flashing white LED visual alert
  • IP67 rated — waterproof and dustproof
  • 12–80V DC compatible — standard vehicles, trucks, forklifts, electric vehicles
  • Durable nylon housing — impact and vibration resistant
  • Universal surface mount
  • Wire-type electrical connections
  • Operating temperature: –40°C to +80°C
  • Suits trucks, trailers, loaders, forklifts, utes, vans, 4WDs

Technical Specs

Specification Detail
SKU / Part Number GHDRASLD
Brand Gator
Sound Type Squawk
Sound Level 105 ± 4dB
IP Rating IP67
Input Voltage 12–80V DC
Current Draw 0.1–0.9A
Connection Type Wire
Mount Type Universal surface mount
LED Warning Light Yes — white, flashing
Housing Material Nylon
Operating Temperature –40°C to +80°C
Dimensions 87mm (H) × 101mm (W) × 42mm (D)
Weight 0.60 kg

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Universal — 12–80V vehicles and equipment including trucks, trailers, mining loaders, forklifts, electric forklifts, utes, vans, and 4WDs

Goes Well With:

  • Gator GT700SD, GT704SD, GT904SD commercial reverse camera kits
  • Gator GHDRASQ (audible-only version for comparison)

Frequently Asked Questions

What is the difference between the GHDRASLD and the GHDRASQ?

Both are 105dB IP67 squawk-type reverse alarms with nylon housing and the same operating temperature range. The GHDRASLD adds a flashing white LED visual alert and extends the voltage input range from 12–24V (GHDRASQ) to 12–80V (GHDRASLD). Choose the GHDRASLD for combined visual and audible warning, or for higher-voltage equipment such as electric forklifts.

Why would I need a visual LED warning in addition to the audible alarm?

In very loud environments such as factories, construction sites, and mining operations, workers may wear hearing protection that reduces the effectiveness of audible alarms. A flashing white LED provides a supplementary visual warning — ensuring pedestrians and workers are alerted even when hearing protection is worn.

Is this compatible with electric forklifts and 48V systems?

Yes. The 12–80V input range covers 48V electric forklifts and other high-voltage industrial equipment that is outside the range of the GHDRASQ (12–24V only).

How is this alarm wired?

The GHDRASLD uses direct wire connections. Wire the positive lead to the vehicle's reverse light circuit and the negative lead to earth — the alarm activates whenever reverse gear is engaged and the reverse lights are active.

Can this alarm be used on a trailer?

Yes. IP67 rating and the wide voltage range make it suitable for trailer installation. Connect to the trailer's reverse light circuit via the towing connector.

Weight

0.60 kg
