Gator GALT01 4x4 Inclinometer Off-Road Vehicle Information Display
Click to open expanded view
GATOR logo

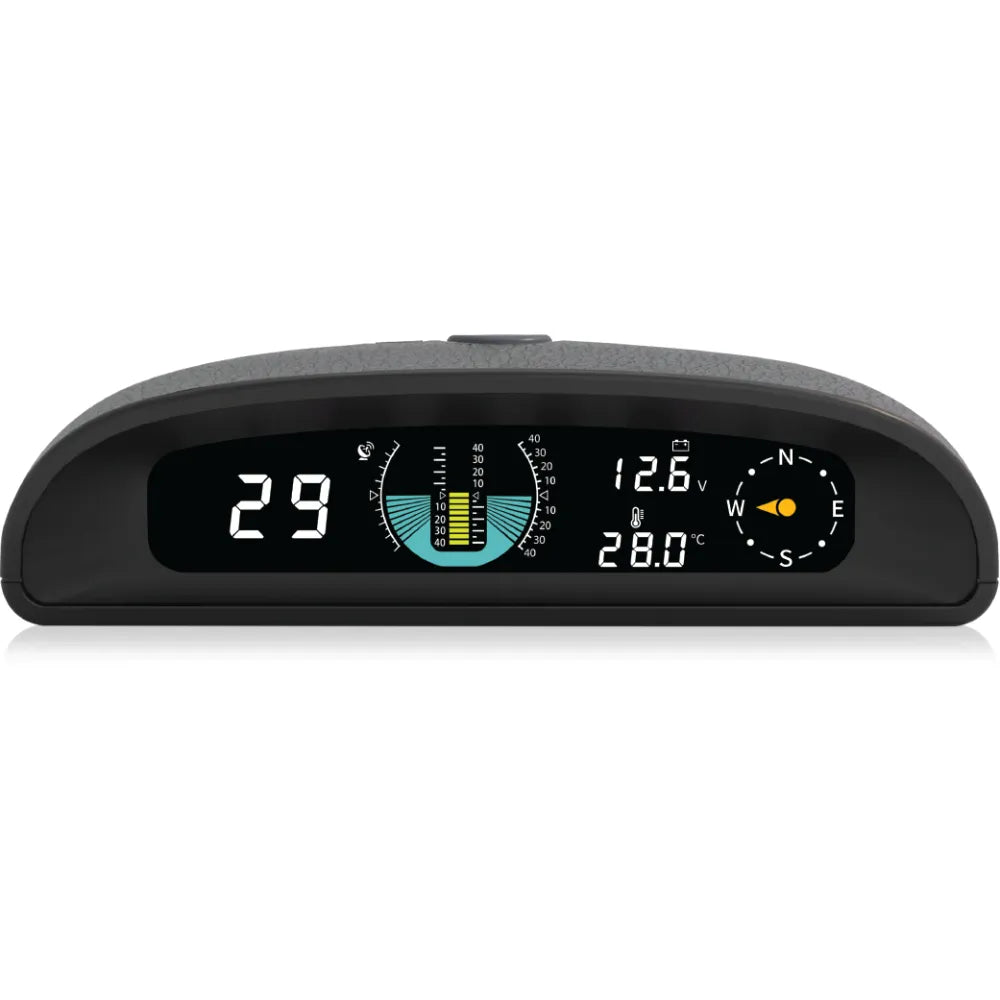

Gator GALT01 4x4 Inclinometer Off-Road Vehicle Information Display

SKU: GALT01
Sale price
$233.99
Regular price
$259.99
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Gator GALT01 4x4 Inclinometer Off-Road Vehicle Information Display

A purpose-built off-road information display for 4x4 enthusiasts GPS elevation and speed, real-time pitch and roll (±40°), electronic compass, cabin thermometer, and voltage monitoring. 12–24V hardwire, adhesive dash mount.

Product Overview

The Gator GALT01 is an off-road vehicle information display combining GPS connectivity with onboard sensors to give 4x4 drivers comprehensive real-time data when tackling rough terrain. A single compact unit provides elevation, GPS speed, pitch angle, roll angle, heading compass, cabin temperature, and input voltage all from an adhesive-mounted dashboard display.

The pitch and roll gauges (±40 degrees) are particularly useful for side slopes and steep climbs where knowing the vehicle's tilt angle in real time helps avoid rollovers or damage. GPS data refreshes every second with a cold start time of approximately 32 seconds.

12–24V DC compatible for hardwire installation in cars, 4WDs, trucks, and recreational vehicles.

Features & Benefits

  • GPS elevation gauge — altitude above sea level
  • GPS speedometer — real-time speed
  • Real-time pitch and roll monitoring: ±40 degrees
  • Electronic compass — vehicle heading direction
  • On-board cabin thermometer (±1°C accuracy)
  • Input voltage monitoring (5–30V DC range)
  • 12–24V DC compatible for hardwire in any vehicle
  • GPS cold start: ~32 seconds, hot start: ~1 second
  • Adhesive dash mount included
  • Operating temperature: –40°C to +80°C

Technical Specs

Specification Detail
SKU / Part Number GALT01
Brand Gator
Pitch Angle Range ±40 degrees
Roll Angle Range ±40 degrees
Temperature Accuracy ±1°C
Voltage Measurement Range 5–30V DC
Voltage Measurement Accuracy ±0.5V
Speed Precision <0.36 km/h
GPS Cold Start Time ~32 seconds (average)
GPS Hot Start Time ~1 second (average)
GPS Data Refresh Rate 1 second
Operating Temperature –40°C to +80°C
Power Supply 10–30V DC
Dimensions 155mm (W) × 41mm (H) × 60mm (D)
Weight 0.49 kg
Mount Adhesive dash mount included

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Universal — hardwire compatible with any 12V or 24V vehicle

Goes Well With:

  • 4x4 builds and off-road vehicles
  • Caravan and motorhome dashboard setups

Frequently Asked Questions

What is an inclinometer and why is it useful off-road?

An inclinometer measures the tilt angle of the vehicle — pitch (front-to-back tilt on hills) and roll (side-to-side tilt on cambers and side slopes). Knowing these angles in real time helps off-road drivers avoid exceeding their vehicle's safe tilt limits, which can cause rollovers or body damage. The GALT01 measures ±40 degrees in both axes.

Does this unit require a GPS antenna?

A GPS antenna or GPS receiver is required for the elevation and speed functions. The supplier data does not confirm whether an external GPS antenna is included or built in — contact the F.A.E. team to confirm before purchasing.

What powers this unit?

The GALT01 requires 10–30V DC hardwire installation. A 12V or 24V vehicle power supply is suitable. It is not designed to be powered from an accessory socket.

What is the voltage monitoring function for?

The voltage monitoring function displays the input voltage from the vehicle's electrical system (5–30V range, ±0.5V accuracy) — allowing the driver to monitor battery or alternator health in real time while off-road, where electrical system faults are more difficult to diagnose and address.

Is the temperature reading for inside or outside the cabin?

The thermometer reads the cabin interior temperature at the sensor location on the unit itself. It is not an external ambient temperature gauge.

Weight

0.49 kg
