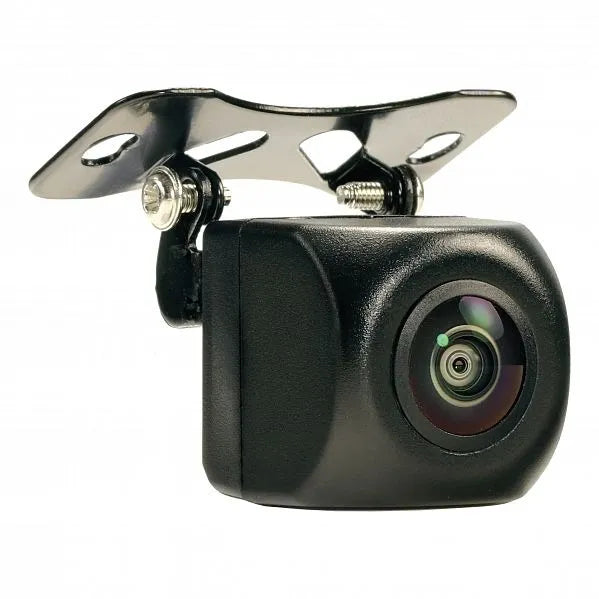

Gator G60CLHD 720P AHD & TVI Switchable Surface Mount Camera

720P HD Surface Mount Camera AHD or TVI, 170° Wide Angle, IP67 Weatherproof.

Product Overview

The Gator G60CLHD is a 720P HD surface mount camera designed for use with AHD or TVI-compatible multimedia receivers and displays. Versatile enough to serve as a front, rear, or reverse camera, the G60CLHD features a wide 170-degree horizontal lens angle for maximum field of view coverage, an IP67 weatherproof rating for harsh outdoor environments, and loop-based settings for adjusting AHD/TVI output, parking guidelines, and mirror image all without software or menu access.

The camera connects to the monitor via a 6-metre RCA video lead with reverse trigger cable included, and uses a 4-pin Micro DIN connection at the camera end. The adjustable bracket allows angle adjustment after mounting on any flat surface, making it a practical choice for cars, utes, and light commercial vehicles running compatible AHD or TVI head units. The loop-based settings use coloured loops to configure output mode, parking lines, and image orientation cut the relevant loop wire to change from the default setting.

Key Specifications

• Resolution: 720P HD
• Compatible systems: AHD or TVI (switchable via Blue Loop)
• Lens angle: 170-degree horizontal
• IP rating: IP67 weatherproof
• Mounting: Surface mount with adjustable bracket
• Camera use: Front, rear, or reverse
• Parking guidelines: Optional (Green Loop default ON, cut to remove)
• Mirror image: Optional (White Loop default ON mirror, cut for forward-facing)
• Voltage: 12V DC
• Camera connection: 4-pin Micro DIN
• Monitor connection: RCA
• Video cable length: 6m (with reverse trigger cable)
• PAL systems only
• Weight: 0.15kg
• Brand: Gator
• SKU: G60CLHD

Features & Benefits

• 720P HD resolution: Produces clear, high-definition picture quality for accurate monitoring of surroundings whether used as a front, rear, or reverse camera
• AHD and TVI switchable: The Blue Loop wire allows the camera to be configured for either AHD or TVI output, making it compatible with a wider range of multimedia head units (default: AHD; cut loop for TVI)
• 170-degree wide-angle lens: Maximises the field of view for both reverse and forward-facing applications, reducing blind spots in cars, utes, and light commercial vehicles
• IP67 weatherproof rating: Fully protected against dust ingress and temporary water immersion, suitable for exterior mounting in demanding Australian conditions
• Loop-adjustable settings: AHD/TVI mode, parking guidelines, and mirror image are all adjustable via coloured loop wires no menu access or software required
• Parking guidelines included: Default parking line overlay assists with reversing accuracy; cut the Green Loop to remove guidelines if not required
• 6m RCA lead with reverse trigger: The included 6-metre cable with reverse trigger wire provides a clean, direct connection from camera to monitor with automatic display activation on reverse
• Adjustable surface mount bracket: The universal surface mount design with adjustable bracket suits a wide range of mounting locations and angle requirements

Technical Specs

Loop Setting Reference

Compatible With

Compatible with AHD or TVI multimedia receivers and displays only. Not compatible with standard analogue CVBS or NTSC systems.

Suitable for:

• Cars, utes, and light commercial vehicles (12V DC)
• Front camera, rear camera, or reverse camera applications
• Any AHD or TVI-compatible head unit or monitor

Pairs well with:

• AHD or TVI-compatible multimedia head units
• Gator dashcam accessories and mounting solutions

Frequently Asked Questions

How do I switch between AHD and TVI output?

The camera defaults to AHD output. To switch to TVI, cut the Blue Loop wire on the camera cable. No menu or software access is required the loop wire change is a one-time physical adjustment.

Can parking guidelines be turned off?

Yes parking guidelines are enabled by default via the Green Loop. To remove the parking guideline overlay, cut the Green Loop wire. This is a one-time physical adjustment.

Can the mirror image be disabled for forward-facing camera use?

Yes the camera defaults to mirror image mode, suited to reverse camera use. To switch to a forward-facing non-mirrored image for front camera use, cut the White Loop wire.

Is this camera compatible with standard analogue head units?

No the G60CLHD is compatible with AHD or TVI-compatible multimedia receivers and displays only. It is not compatible with standard analogue CVBS inputs. Confirm your head unit supports AHD or TVI input before purchasing.
