Gator G41V Wide Angle Universal Flush Mount Camera
Click to open expanded view
GATOR logo

Gator G41V Wide Angle Universal Flush Mount Camera

SKU: G41V
Sale price
$378
Regular price
$420
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Gator G41V Wide Angle 170° Flush Mount Reverse Camera for Commercial Vans

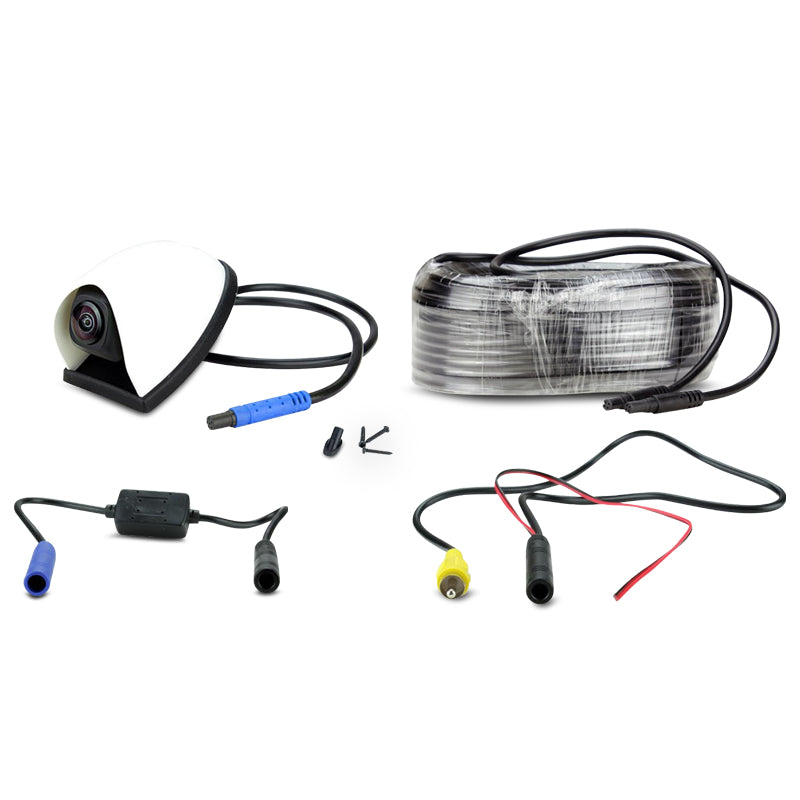

A flush mount reverse camera for commercial vans 170-degree wide-angle CMOS, IP67, switchable parking gridlines, 15m Mini-DIN cable, NTSC RCA output. Discreet white housing designed for top-rear installation.

Product Overview

The Gator G41V is a compact flush mount reverse camera designed for commercial vans where the camera is mounted at the top rear of the vehicle. The flush mount white housing sits flush with the mounting surface for a discreet, professional appearance. The 170-degree wide-angle CMOS lens significantly reduces blind spots at the rear of the van.

Parking gridlines are switchable they can be enabled or disabled during camera installation. IP67 rated for protection against water and debris. A 15m video cable with Mini-DIN connectors is included, providing sufficient reach for most van configurations.

NTSC output confirm your head unit or monitor accepts NTSC camera input before purchasing. Most modern aftermarket units auto-switch between PAL and NTSC.

Features & Benefits

  • 170-degree wide-angle CMOS — significantly reduces rear blind spots
  • Flush mount white housing — discreet top-rear-of-van installation
  • Switchable parking gridlines — enable or disable at installation
  • IP67 rated — waterproof and weather resistant
  • 15m video cable with Mini-DIN connectors
  • Reverse trigger on cable — auto-activates on reverse gear
  • NTSC RCA output — compatible with NTSC-capable monitors and head units

Technical Specs

Specification Detail
SKU / Part Number G41V
Brand Gator
Mount Type Flush mount
Housing Colour White
Image Sensor CMOS
Resolution 720 × 480
Lens Angle 170 degrees
Parking Gridlines Switchable on/off (set at installation)
Video Standard NTSC
Monitor Connection RCA
IP Rating IP67
Voltage 12V
Camera Connector Mini-DIN plug
Video Cable Length 15m
Reverse Trigger Yes
Connection Type Wired
Weight 0.16 kg

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Designed for commercial vans — flush mount at the top rear of the vehicle

Goes Well With:

  • Any NTSC-compatible aftermarket head unit or monitor with RCA input
  • Gator GT700SD, GT704SD monitors (PAL/NTSC auto-switching)
  • Gator GRCANFLT CANBUS filter (for modern CANBUS vans)

Frequently Asked Questions

What is the difference between the G41V and the G42V?

Both are flush mount NTSC cameras for commercial vans with white housings and 15m Mini-DIN cables. The G41V has a 170-degree fixed-view lens and is a single-function reverse camera. The G42V is a 5-in-1 camera with a 210-degree lens and wireless controller for switching between five viewing modes (birds-eye, wide, reverse, blind spot, driving). The G41V is the simpler, more compact option; the G42V is the multi-mode solution.

Is this camera NTSC — will it work with my head unit?

The G41V outputs NTSC. Most modern aftermarket head units auto-switch between PAL and NTSC. Confirm your specific head unit accepts NTSC camera input before purchasing.

How are parking gridlines enabled or disabled?

Parking gridlines are switched on or off during camera installation — not from the driver's seat. Set the gridline preference before completing the installation.

Is this camera suitable for other vehicle types besides commercial vans?

The flush mount design is optimised for vans where top-rear mounting is practical. It can be adapted to other vehicle types with a suitable flat mounting surface at the rear — confirm mounting feasibility with the F.A.E. team.

What is the 15m cable termination at the monitor end?

The 15m cable has a Mini-DIN connector at the camera end and an RCA connector at the monitor end — standard RCA for connection to any aftermarket head unit or monitor with RCA camera input.

Weight

0.16 kg
