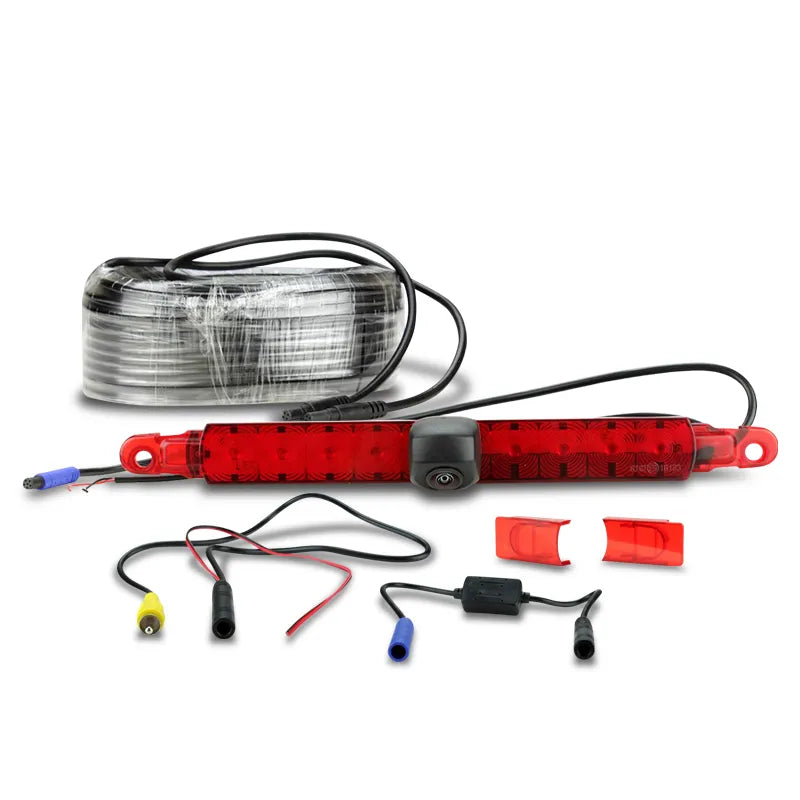

Gator G39V Universal Brake Light Reverse Camera

Allowing for Optimal Position at The Top Rear of The Vehicle

Reverse Camera Kit Solution
The Gator G39V provides a clear view at the rear of the vehicle. It features a super wide 170 degree viewing angle that significantly minimises blind spots and has optional reverse guidelines that can be enabled/disabled during installation.

Designed specifically for commercial vans, the camera simply replaces the OEM brake light on the vehicle, allowing for optimal position at the top rear of the vehicle. As this is a universal type product, some modifications may be required on the vehicle for installation.

Features:

• Super wide 170 degree viewing angle significantly reduces blind spots at the rear of the vehicle
• Flush mount design with brake light housing for discreet installation
• Suitable for commercial vans, camera replaces factory brake light positioned at the top rear of the vehicle
• Optional guidelines for reversing that can be enabled/disabled during camera installation
• IP67 Rated, will withstand harsh operating environments and weather conditions
• 15M video extension cable included with mini din connectors
• Compatible with all aftermarket display monitors and AV headunits that are NTSC compatible and feature an RCA input

Specifications:

• Resolution: 720 x 480
• Mount Type: Brake Light Mount
• Reverse or Rear View: Reverse
• Lens Angle: 170 Degree
• Image Sensor (CMOS or CCD): CMOS
• Parking Grid-Lines: Switchable On/Off
• PAL or NTSC: NTSC
• IP Rating: IP67
• Voltage: 12V
• Plug Type Camera End: Mini DIN Plug
• Plug Type Monitor End: RCA
• Video Cable Length: 15M
• Reverse Trigger Video Cable: Yes
• Dimensions (Camera & Bracket): 25mm (H) x 289mm (W) Including Covers
• Wired or Wireless: Wired
