Gator G35CL Flush Mount Camera With Loop System
Click to open expanded view
GATOR logo

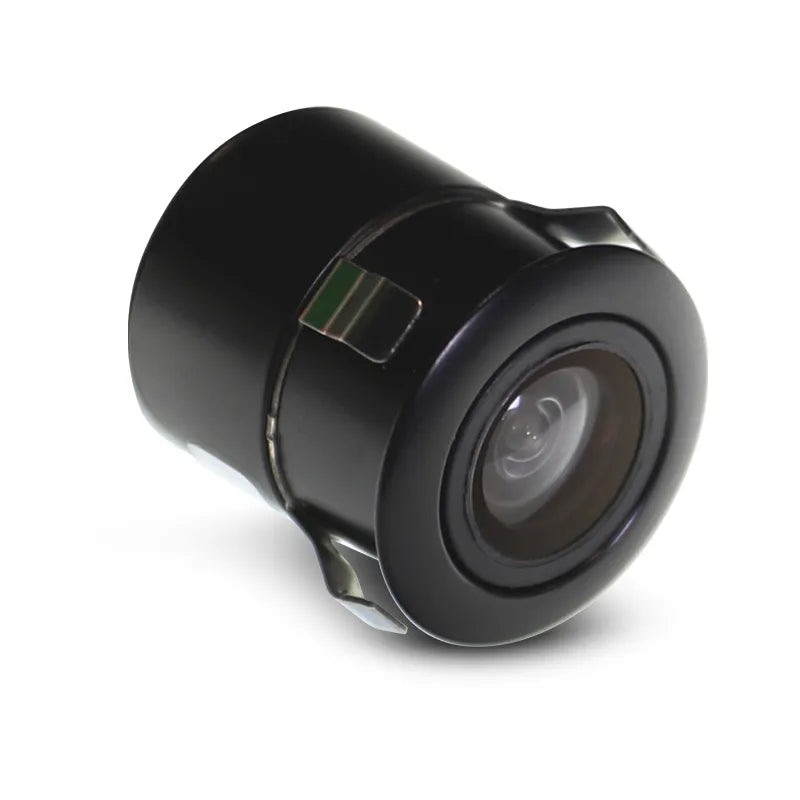

Gator G35CL Flush Mount Camera With Loop System

SKU: G35CL
Sale price
$112.49
Regular price
$124.99
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Gator G35CL Flush Mount Camera, IP67, Loop System, PAL/NTSC Switchable

A compact 18mm diameter flush mount camera for front, rear, or reverse mounting 100-degree CMOS, IP67, PAL/NTSC switchable, parking gridlines and mirror image switchable via loop. 18.5mm hole saw drill bit included.

Product Overview

The Gator G35CL is a compact flush mount camera that recesses into the front or rear bar/bumper of the vehicle through an 18.5mm hole making it virtually invisible from outside. An 18.5mm hole saw drill bit is included to simplify installation.

Three wire loops configure the camera settings during installation:

  • Blue loop: Default PAL → cut for NTSC
  • Green loop: Default parking gridlines ON → cut to remove
  • White loop: Default mirror image ON → cut for forward-facing image

For a standard Australian reverse camera installation (PAL, mirror image, gridlines): No loop cuts required the G35CL defaults to the correct settings.

Compatible with any PAL or NTSC display with an RCA connection. Includes 1.5m power wire and 6m RCA video cable with reverse trigger.

Features & Benefits

  • Flush mount — 18mm diameter camera body, recesses into bumper/bar
  • 18.5mm hole saw drill bit included
  • PAL/NTSC switchable via blue loop (default PAL)
  • Switchable parking gridlines via green loop (default ON)
  • Switchable mirror image via white loop (default mirror)
  • 100-degree CMOS lens
  • IP67 rated — waterproof and dustproof
  • Front, rear, or reverse camera use
  • 6m RCA video cable with reverse trigger
  • 1.5m power wire

Technical Specs

Specification Detail
SKU / Part Number G35CL
Brand Gator
Mount Type Flush mount
Camera Type Front, rear, or reverse
Image Sensor CMOS
Lens Angle 100 degrees
Video Standard PAL/NTSC switchable (default PAL)
Parking Gridlines Switchable — default ON (cut green loop to remove)
Mirror Image Switchable — default mirror (cut white loop for forward facing)
IP Rating IP67
Voltage 12V DC
Camera Connector 4-pin micro DIN plug
Monitor Connector RCA
Video Cable Length 6m
Reverse Trigger Yes
Camera Diameter 18mm
Weight 0.20 kg
Includes Camera, 18.5mm hole saw drill bit, 6m RCA lead with trigger, camera harness, product manual

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Universal — any vehicle with a flat or curved bar/bumper suitable for an 18.5mm hole

Goes Well With:

  • Aftermarket head units with PAL or NTSC RCA reverse/front camera input
  • Gator GRV43KT, GRV50KT, GX5HDKT monitors
  • Gator GRCANFLT CANBUS filter (for CANBUS vehicles)

Frequently Asked Questions

What loop cuts are required for a standard Australian reverse camera installation?

The G35CL defaults to PAL, parking gridlines ON, and mirror image. For a standard Australian reverse camera install, no loop cuts are required — the defaults are already correct. Cut the green loop only if you prefer no gridlines.

Does installation require drilling?

Yes. The G35CL requires an 18.5mm hole to be drilled into the mounting surface (front or rear bumper/bar). An 18.5mm hole saw drill bit is included in the kit.

What is the difference between flush mount and surface mount cameras?

A surface mount camera sits on the outside of the mounting surface with a bracket — visible from outside the vehicle. A flush mount camera body recesses through a hole so only the lens is visible at the surface, providing a more discreet OEM appearance.

Can this camera be used as a front camera?

Yes. The G35CL can be mounted at the front, rear, or any location requiring a compact flush-mount camera. Cut the white loop to disable mirror image for front camera use (standard forward-facing orientation).

Is 100 degrees wide enough for a reverse camera?

100 degrees provides a solid rear view with less barrel distortion than 150–170-degree lenses. It is narrower than most generic reverse cameras — suitable for vehicles where a slightly more focused rear view is preferred. If maximum coverage width is required, consider a wider-angle surface mount camera.

Weight

0.20 kg
