Product features

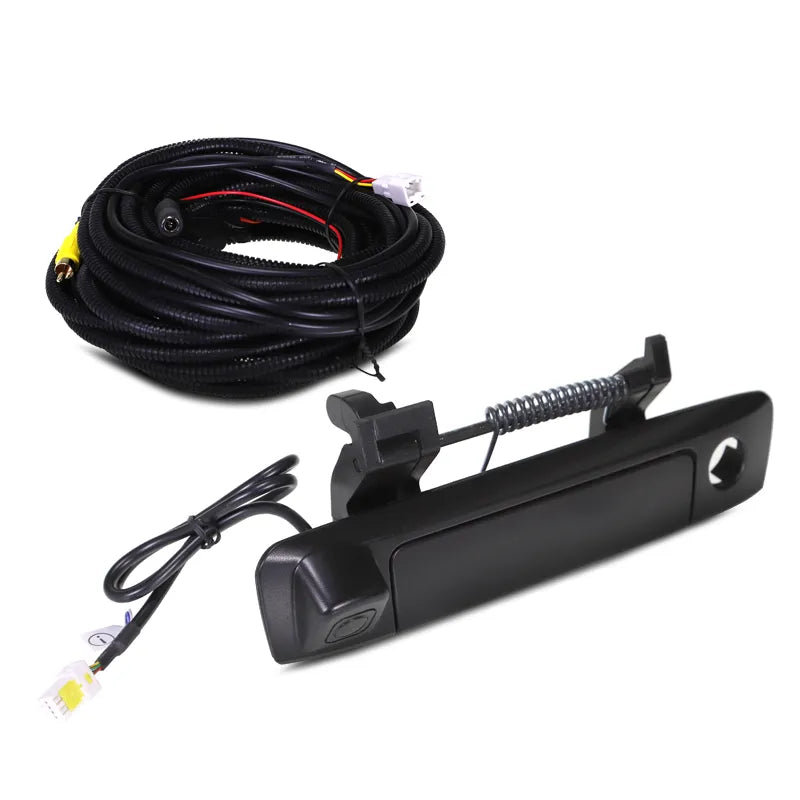

Gator G22V Ford Ranger PX (2012–2015) Tailgate Handle Reverse Camera

A vehicle-specific tailgate handle replacement reverse camera for the Ford Ranger PX (2012–2015) 168-degree wide angle, switchable PAL/NTSC, IP68, switchable parking guidelines, 8m extension cable, RCA output. Retains original tailgate lock.

Product Overview

The Gator G22V is a vehicle-specific reverse camera for the Ford Ranger PX (2012–2015). It replaces the factory tailgate handle with a housing that integrates the reverse camera providing a completely discreet, OEM-appearance installation with no additional drilling. The factory tailgate lock is retained; no extra keys are needed.

The 168-degree wide-angle lens minimises rear blind spots. PAL/NTSC and parking guidelines are both switchable via loop cuts during installation.

Loop system:

  • White loop: Default NTSC → cut for PAL
  • Blue loop: Default parking guidelines ON → cut to remove guidelines

For Australian PAL head units — cut the white loop during installation.

IP68 rated, –20°C to +70°C operating temperature, built for Australian conditions.

Features & Benefits

  • Replaces factory tailgate handle — no drilling, OEM-appearance installation
  • Factory tailgate lock retained — no additional keys required
  • 168-degree wide-angle lens — minimises blind spots
  • PAL/NTSC switchable — cut white loop for PAL (default NTSC)
  • Switchable parking guidelines — ON by default, cut blue loop to remove
  • IP68 rated — waterproof for harsh Australian conditions
  • RCA connection, PAL/NTSC switchable — compatible with all aftermarket monitors
  • 8m extension cable included
  • Operating temperature: –20°C to +70°C
  • 0.1 lux minimum illumination

Technical Specs

Specification Detail
SKU / Part Number G22V
Brand Gator
Housing Colour Black
Camera Type Reverse
Lens Angle 168 degrees
Video Standard PAL/NTSC switchable — default NTSC (cut white loop for PAL)
Monitor Connection RCA
Mirror Image No
Parking Guidelines Switchable — default ON (cut blue loop to remove)
IP Rating IP68
Minimum Illumination 0.1 lux
Operating Voltage 12V
Operating Temperature –20°C to +70°C
Includes Camera in tailgate handle housing, 8m extension cable, instructions
Vehicle Compatibility Ford Ranger PX 2012–2015

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Ford Ranger 2012–2015 (PX)

Goes Well With:

  • Aftermarket head units with RCA reverse camera input (PAL or NTSC)
  • Gator reversing monitors with PAL or NTSC RCA input
  • Gator GRCANFLT CANBUS filter (if experiencing CANBUS interference)

Frequently Asked Questions

What loop cuts are required for a standard Australian PAL installation?

The G22V defaults to NTSC with parking guidelines ON. For a standard Australian PAL installation: cut the white loop (switches to PAL). Cut the blue loop if you want to remove the parking guidelines. Loops are cut once during installation — confirm your settings before cutting.

Does installation require drilling?

No. The G22V replaces the factory tailgate handle — the camera housing installs in the existing handle location without additional drilling.

Does this camera retain the factory tailgate lock?

Yes. The G22V housing retains the original tailgate lock mechanism — no extra keys required.

Does this camera display a mirrored image?

No. The G22V outputs a non-mirrored rear view image. Confirm whether your head unit or monitor applies its own mirror/flip function if a mirrored display is preferred.

Will this camera fit the Ford Ranger PX2 or PX3?

The G22V is specified for the Ford Ranger PX (2012–2015). PX2 (2015–2018) and PX3 (2018–on) Ranger models may have different tailgate handle dimensions — contact the F.A.E. team to confirm compatibility before purchasing.
