Gator G174V Vehicle Specific Reverse Camera Suit Fiat Scudo 2007 - 2011
Click to open expanded view
GATOR logo

Gator G174V Vehicle Specific Reverse Camera Suit Fiat Scudo 2007 - 2011

SKU: G174V
Sale price
$397.80
Regular price
$442
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

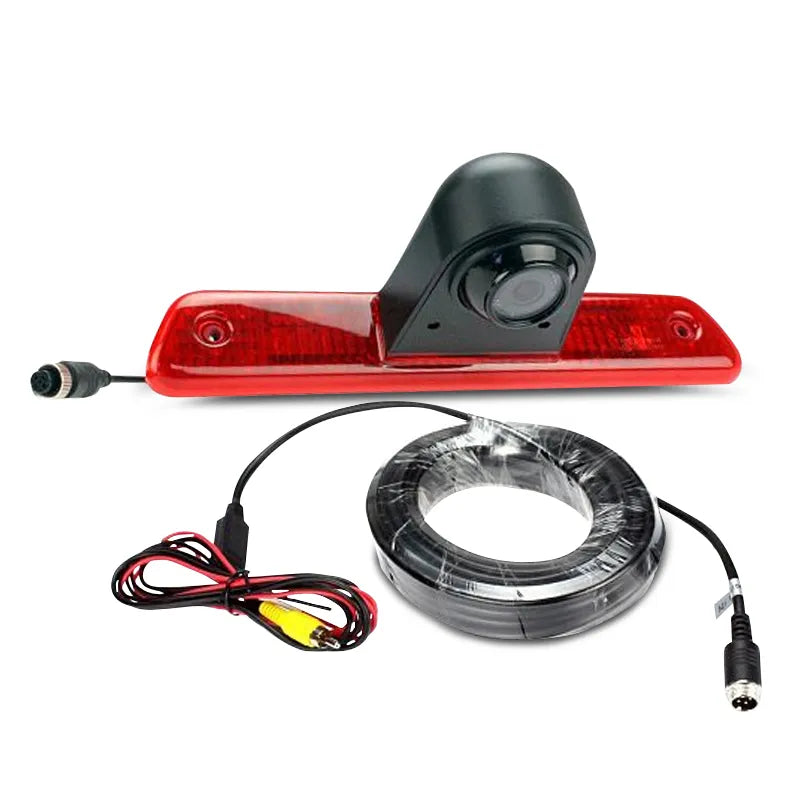

Gator G174V Vehicle-Specific Reverse Camera for Fiat Scudo (2007–2011)

A vehicle-specific brake light replacement reverse camera for the Fiat Scudo (2007–2011) 120-degree CMOS with infrared LEDs, IP69K, 0 lux, NTSC output, 10m cable included.

Product Overview

The Gator G174V is a vehicle-specific reverse camera for the Fiat Scudo van (2007–2011). It replaces the factory high-level brake light at the rear of the vehicle no drilling, discreet OEM-appearance installation.

The CMOS sensor with integrated infrared LEDs delivers 0 lux night vision. IP69K rating withstands high-pressure water jets and steam cleaning. 120-degree lens. NTSC RCA output. 10m cable included.

Features & Benefits

  • Replaces factory high-level brake light — no drilling
  • Fiat Scudo 2007–2011 specific
  • 120-degree CMOS lens with infrared LEDs — 0 lux night vision
  • IP69K rated — high-pressure wash resistant
  • NTSC RCA output — confirm head unit NTSC compatibility before purchasing
  • 10m cable included
  • Operating temperature: –30°C to +70°C

Technical Specs

Specification Detail
SKU / Part Number G174V
Brand Gator
Camera Type Reverse
Image Sensor CMOS
Lens Angle 120 degrees
Video Standard NTSC only
Monitor Connection RCA
IP Rating IP69K
Minimum Illumination 0 lux (LEDs on)
Operating Voltage 12V
Operating Temperature –30°C to +70°C
Includes Camera (0.35m cable to 4-pin male), 10m extension cable (4-pin female to RCA male, power wire, ground wire), instructions
Vehicle Compatibility Fiat Scudo 2007–2011

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Fiat Scudo 2007–2011

Goes Well With:

  • NTSC-compatible or PAL/NTSC auto-switching aftermarket head units and monitors with RCA input
  • Gator GRCANFLT CANBUS filter (for CANBUS interference)

Frequently Asked Questions

Does this camera retain the factory brake light function?

The G174V replaces the factory high-level brake light housing. Confirm with the F.A.E. team whether the brake light function is retained — retaining a functional high-level brake light is a legal requirement in Australia.

This camera is NTSC — will it work with my head unit?

The G174V outputs NTSC only. Most modern aftermarket head units auto-switch between PAL and NTSC. Confirm your specific head unit or monitor accepts NTSC input before purchasing.

Why is the lens only 120 degrees compared to 170 degrees on other van cameras?

The G174V has a 120-degree lens — narrower than the 170-degree lenses on many other van cameras in this range. This provides less barrel distortion at the edges while still covering a solid rear field of view. Confirm the 120-degree coverage is sufficient for your application before purchasing.

Is the Fiat Scudo the same as the Peugeot Expert and Toyota Proace?

Yes — the Fiat Scudo, Peugeot Expert, and Toyota Proace (first generation) share the same platform and body. The G174V covers the Scudo 2007–2011 (second generation, X250 platform). The G166V covers the Peugeot Expert 2007–2016. Confirm which camera is the correct fit for your specific van with the F.A.E. team.

Does the 10m cable cover the full length of the van?

The 10m cable (0.35m camera lead + 10m extension) is sufficient for most standard-wheelbase Scudo configurations. For long-wheelbase variants, measure the routing distance before purchasing.
