Gator G173V Vehicle Specific Reverse Camera to Suit Fiat Ducato
Click to open expanded view
GATOR logo

Out of stock

Gator G173V Vehicle Specific Reverse Camera to Suit Fiat Ducato

SKU: G173V
Regular price
$399.99
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

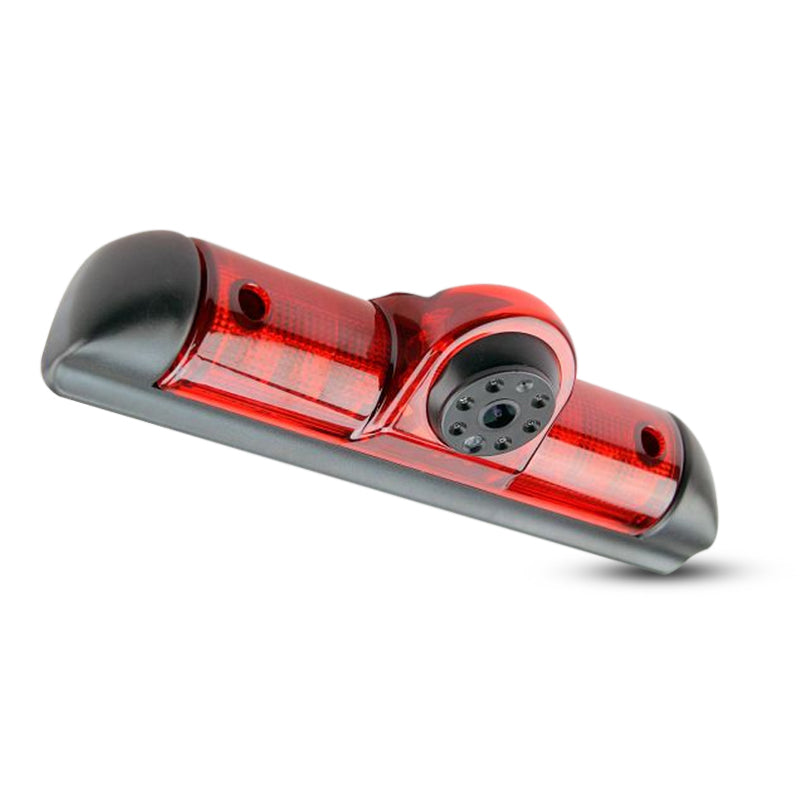

Gator G173V Vehicle-Specific Reverse Camera for Fiat Ducato (2015–On)

A vehicle-specific brake light replacement reverse camera for the Fiat Ducato (2015–on) 170-degree 1/3-inch CCD with infrared LEDs, IP68, PAL, built-in microphone, 10m cable included.

Product Overview

The Gator G173V is a vehicle-specific reverse camera for the Fiat Ducato (2015–on). It replaces the factory high-level brake light at the rear of the vehicle no drilling, discreet installation.

The 1/3-inch CCD sensor with integrated infrared LEDs provides 0 lux night vision. 170-degree wide-angle lens. IP68 rated. PAL RCA output. 10m cable kit included.

The built-in microphone outputs audio via the white RCA connector ambient sounds from behind the vehicle can be heard at a compatible display monitor.

Three Fiat Ducato cameras available: G159V (IP68, 170°, 2.5mm connector, no mic), G162V (5-in-1 with wireless controller, NTSC), and G173V (IP68, 170° CCD, built-in mic, 2015–on). See FAQ 4 for the comparison.

Features & Benefits

  • Replaces factory high-level brake light — no drilling
  • Fiat Ducato 2015–on specific
  • 170-degree 1/3-inch CCD lens with infrared LEDs — 0 lux night vision
  • IP68 rated — waterproof and weatherproof
  • Built-in microphone — audio via white RCA (compatible monitors only)
  • PAL output — compatible with PAL aftermarket monitors
  • 10m cable kit included
  • Operating temperature: –20°C to +70°C

Technical Specs

Specification Detail
SKU / Part Number G173V
Brand Gator
Camera Type Reverse
Image Sensor 1/3" CCD
Lens Angle 170 degrees
Video Standard PAL
Monitor Connection RCA (video) + RCA white (audio)
IP Rating IP68
Minimum Illumination 0 lux (LEDs on)
Built-in Microphone Yes (white RCA audio output — compatible monitors only)
Operating Voltage 12V
Operating Temperature –20°C to +70°C
Includes Camera (0.7m cable to 4-pin male), 10m extension cable, connection cable (4-pin female to RCA video female + RCA audio female + DC female), male-to-male RCA splice, 1.45m DC power cable, instructions
Vehicle Compatibility Fiat Ducato 2015–on

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Fiat Ducato 2015–on

Goes Well With:

  • PAL-compatible aftermarket head units and monitors with RCA input
  • Monitors with RCA audio input (for microphone feature)
  • Gator GRCANFLT CANBUS filter (for CANBUS interference in Ducato)

Frequently Asked Questions

Does this camera retain the factory brake light function?

The G173V replaces the factory high-level brake light housing. Confirm with the F.A.E. team whether the brake light function is retained — retaining a functional high-level brake light is a legal requirement in Australia.

How does the built-in microphone work?

The G173V includes a built-in microphone that outputs audio via the white RCA connector. Connect the white RCA to the audio input on a compatible display monitor to hear ambient sounds from behind the vehicle. Not all monitors support audio input — confirm your monitor has an RCA audio input before relying on this feature.

Is the 10m cable sufficient for the Fiat Ducato?

The 10m total cable (0.7m camera lead + 10m extension) is sufficient for most standard and medium-wheelbase Ducato configurations. For long-wheelbase or Maxi variants, measure the routing distance before purchasing.

What is the difference between the G173V, G159V, and G162V — all Fiat Ducato cameras?

The G159V covers Ducato models with an Aptina ASX340 sensor (no confirmed year range), PAL/NTSC switchable, IP68, no microphone. The G162V is a 5-in-1 NTSC camera with wireless controller for 2006–2015 Ducatos. The G173V covers 2015–on Ducatos with a 1/3-inch CCD sensor, PAL only, and includes a built-in microphone. The G173V is the current-generation Ducato solution with the most complete feature set among the standard single-view cameras.

Does this camera fit Ducato-based motorhomes and campervans?

Yes — the G173V should fit Ducato-based motorhomes where the original high-level brake light housing remains accessible. Confirm with the F.A.E. team for conversions where the rear body structure may differ from the standard van.
