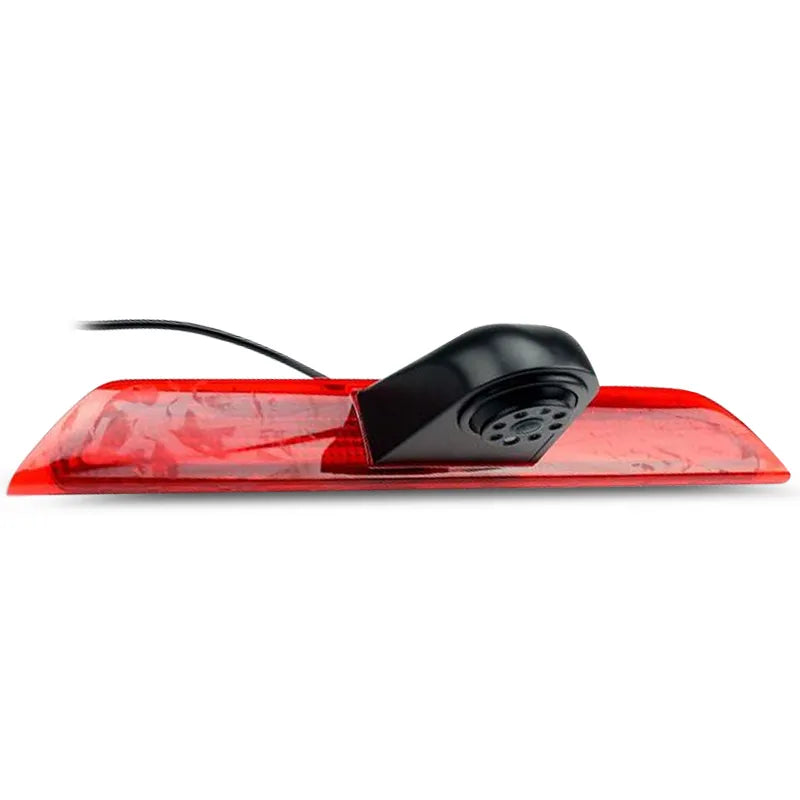

Gator G172V Vehicle Specific Reverse Camera Suit Ford Transit 2014 - 2017
Click to open expanded view
GATOR logo

Gator G172V Vehicle Specific Reverse Camera Suit Ford Transit 2014 - 2017

SKU: G172V
Sale price
$422.99
Regular price
$469.99
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Gator G172V Vehicle-Specific Reverse Camera for Ford Transit VO (2014–2017)

A vehicle-specific brake light replacement reverse camera for the Ford Transit VO (2014–2017) 170-degree 1/3-inch CCD with infrared LEDs, IP68, PAL, built-in microphone, 10m cable included.

Product Overview

The Gator G172V is a vehicle-specific reverse camera for the Ford Transit VO (2014–2017). It replaces the factory high-level brake light at the rear of the vehicle no drilling, discreet installation.

The 1/3-inch CCD sensor with integrated infrared LEDs provides 0 lux night vision. 170-degree wide-angle lens. IP68 rated. PAL RCA output. 10m cable kit included.

A notable feature is the built-in microphone audio from the camera surrounds can be heard at the display if the monitor supports audio input (white RCA connector).

Features & Benefits

  • Replaces factory high-level brake light — no drilling
  • Ford Transit VO 2014–2017 specific
  • 170-degree 1/3-inch CCD lens with infrared LEDs — 0 lux night vision
  • IP68 rated — waterproof and weatherproof
  • Built-in microphone — audio output via white RCA (compatible monitors only)
  • PAL output — compatible with PAL aftermarket monitors
  • 10m cable kit included
  • Operating temperature: –20°C to +70°C

Technical Specs

Specification Detail
SKU / Part Number G172V
Brand Gator
Camera Type Reverse
Image Sensor 1/3" CCD
Lens Angle 170 degrees
Video Standard PAL
Monitor Connection RCA (video) + RCA white (audio)
IP Rating IP68
Minimum Illumination 0 lux (LEDs on)
Built-in Microphone Yes (white RCA audio output — compatible monitors only)
Operating Voltage 12V
Operating Temperature –20°C to +70°C
Includes Camera (0.7m cable to 4-pin male), 10m extension cable, connection cable (4-pin female to RCA video female + RCA audio female + DC female), male-to-male RCA splice, 1.45m DC power cable, instructions
Vehicle Compatibility Ford Transit VO 2014–2017

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Ford Transit VO 2014–2017

Goes Well With:

  • PAL-compatible aftermarket head units and monitors with RCA input
  • Monitors with RCA audio input (for microphone feature)
  • Gator GRCANFLT CANBUS filter (for CANBUS interference in Transit VO)

Frequently Asked Questions

Does this camera retain the factory brake light function?

The G172V replaces the factory high-level brake light housing. Confirm with the F.A.E. team whether the brake light function is retained — retaining a functional high-level brake light is a legal requirement in Australia.

How does the built-in microphone work?

The G172V includes a built-in microphone that outputs audio via the white RCA connector on the connection cable. Connect the white RCA to the audio input on a compatible display monitor to hear ambient sounds from behind the vehicle. Not all monitors support audio input — confirm your monitor has an RCA audio input before relying on this feature.

Is the 10m cable sufficient for the Transit VO?

The 10m total cable (0.7m camera lead + 10m extension) is sufficient for most standard and medium-wheelbase Transit configurations. For long-wheelbase Transit models, measure the routing distance before purchasing.

What is the difference between the G172V and the G163V — both fit Ford Transit vans?

Both are Ford Transit brake light cameras. The G163V covers 2013–2017 and uses a CMOS sensor with IP69K rating. The G172V is specifically for the Transit VO (2014–2017) and uses a 1/3-inch CCD sensor with IP68 rating plus a built-in microphone. The G172V is the higher-spec camera (CCD over CMOS, microphone included); the G163V has higher IP protection (IP69K vs IP68). Contact the F.A.E. team to confirm which fits your specific Transit model year and build.

Does this camera fit the Transit Custom?

The G172V is specified for the Ford Transit VO (2014–2017 full-size Transit). The Transit Custom has a different body design — it is not confirmed as compatible. Contact the F.A.E. team to confirm fitment for Transit Custom models.
