Product features

Gator G170V Vehicle-Specific Reverse Camera for Renault Trafic (X83 2011–2014)

A vehicle-specific brake light replacement reverse camera for the Renault Trafic X83 (2011–2014) 170-degree CMOS with infrared LEDs, IP69K, 0 lux, PAL/NTSC switchable, 10m cable included.

Brake light compliance: Confirm with the F.A.E. team whether the factory brake light function is retained after installation.

Product Overview

The Gator G170V is a vehicle-specific reverse camera for the Renault Trafic van (X83 2011–2014). It replaces the factory high-level brake light at the rear of the vehicle no drilling, discreet OEM-appearance installation.

The 1/3-inch CMOS sensor with integrated infrared LEDs provides 0 lux night vision performance. 170-degree wide-angle lens minimises rear blind spots. IP69K rated for high-pressure water jet and steam cleaning resistance.

Includes a 10m cable (camera to RCA, with power and ground wires) total reach for most van configurations.

Features & Benefits

  • Replaces factory high-level brake light — no drilling
  • Renault Trafic X83 2011–2014 specific
  • 170-degree CMOS lens with infrared LEDs — 0 lux night vision
  • IP69K rated — high-pressure wash resistant
  • PAL/NTSC switchable RCA output
  • 10m camera extension cable included
  • Operating temperature: –30°C to +70°C

Technical Specs

Specification Detail
SKU / Part Number G170V
Brand Gator
Camera Type Reverse
Image Sensor 1/3" CMOS
Lens Angle 170 degrees
Video Standard PAL/NTSC switchable
Monitor Connection RCA
IP Rating IP69K
Minimum Illumination 0 lux (LEDs on)
Operating Voltage 12V
Operating Temperature –30°C to +70°C

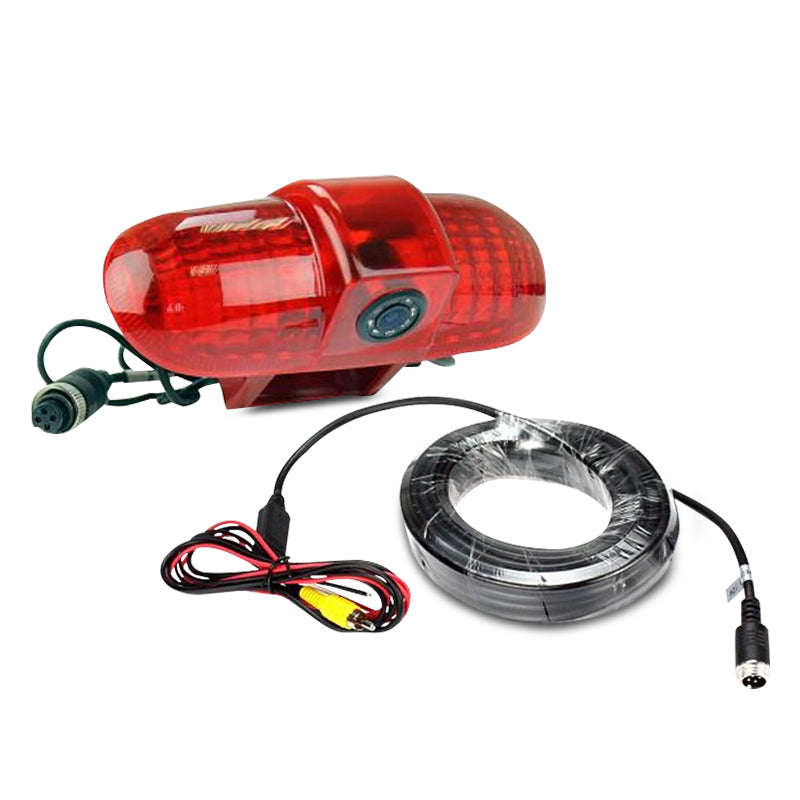

Includes Camera (4-pin male connector), 10m extension cable (4-pin female to RCA, power wire, ground wire), instructions
Vehicle Compatibility Renault Trafic X83 2011–2014

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Renault Trafic X83 2011–2014

Goes Well With:

  • PAL or NTSC-compatible aftermarket head units and monitors with RCA input
  • Gator GRCANFLT CANBUS filter (for CANBUS interference)

Frequently Asked Questions

Does this camera retain the factory brake light function?

The G170V replaces the factory high-level brake light housing. Confirm with the F.A.E. team whether the brake light function is retained after installation — this is a legal compliance requirement in Australia.

What Renault Trafic models does this camera fit?

The G170V is confirmed for the Renault Trafic X83 (2011–2014). Earlier Trafic models (X83 pre-2011) and later Trafic models (X82 2015+) may have different brake light housings — contact the F.A.E. team to confirm fitment for your specific model and year.

Does this camera have night vision?

Yes. The G170V includes integrated infrared LEDs that provide 0 lux performance — the camera produces a clear image in complete darkness when the LEDs are active.

Is PAL/NTSC switchable on this camera?

Yes — the G170V outputs both PAL and NTSC. Confirm how switching is performed (loop, switch, or OSD menu) with the F.A.E. team during installation planning.

Does this kit include all the cable needed for installation?

Yes. The 10m extension cable (4-pin female to RCA, power wire, and ground wire) is included and provides sufficient reach for most Renault Trafic van configurations.
