Gator G169V Vehicle Specific Reverse Camera to Suit Renault Master
Click to open expanded view
GATOR logo

Gator G169V Vehicle Specific Reverse Camera to Suit Renault Master

SKU: G169V
Sale price
$358.19
Regular price
$397.99
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

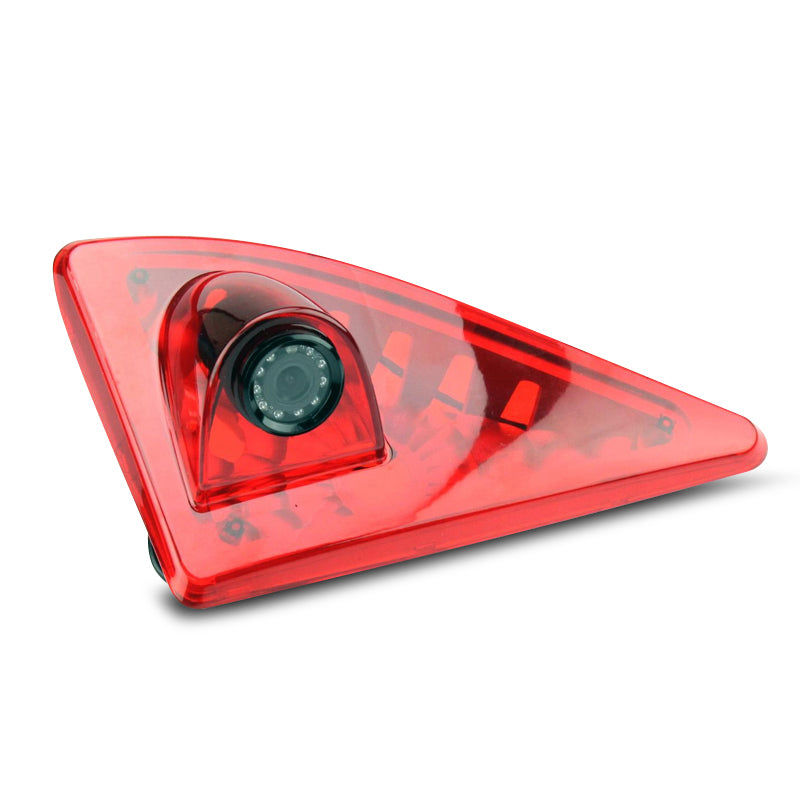

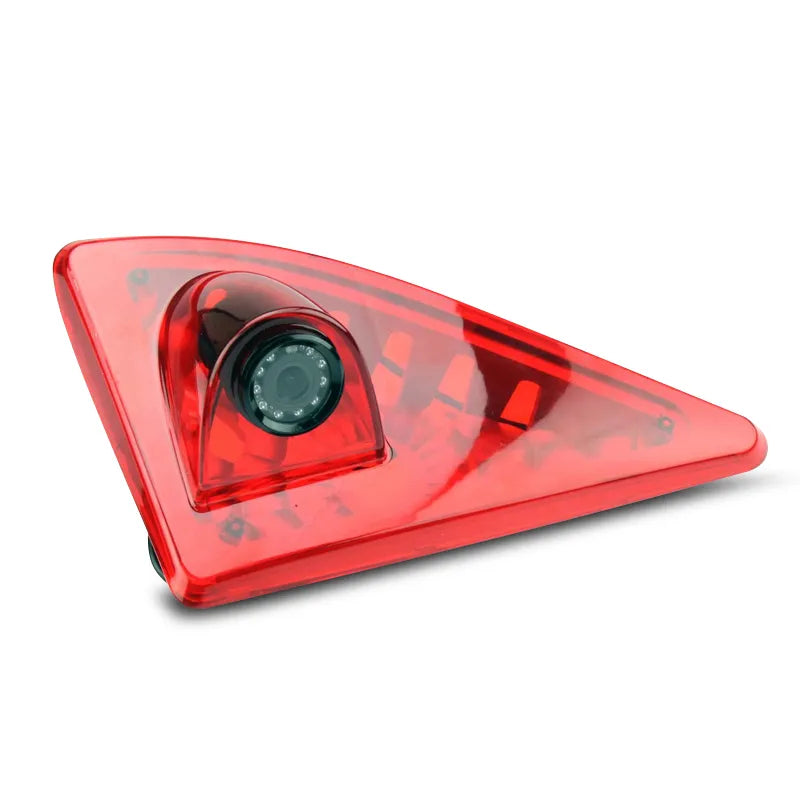

Gator G169V Vehicle-Specific Reverse Camera for Renault Master X62 (2011–2017)

A vehicle-specific brake light replacement reverse camera for the Renault Master X62 (2011–2017) 170-degree 1/3-inch CCD with infrared LEDs, IP68, PAL, built-in microphone, 10m cable included.

Product Overview

The Gator G169V is a vehicle-specific reverse camera for the Renault Master X62 van (2011–2017). It replaces the rear door brake light no drilling, discreet installation.

The 1/3-inch CCD sensor with integrated infrared LEDs provides 0 lux night vision. 170-degree wide-angle lens. IP68 rated. PAL RCA output. Built-in microphone outputs audio via the secondary RCA connector (compatible monitors only). 10m cable kit included.

Features & Benefits

  • Replaces factory rear door brake light — no drilling
  • Renault Master X62 2011–2017 specific
  • 170-degree 1/3-inch CCD lens with infrared LEDs — 0 lux night vision
  • IP68 rated — waterproof and weatherproof
  • Built-in microphone — audio via secondary RCA (compatible monitors only)
  • PAL output — compatible with PAL aftermarket monitors
  • 10m cable kit included
  • Operating temperature: –20°C to +70°C

Technical Specs

Specification Detail
SKU / Part Number G169V
Brand Gator
Camera Type Reverse
Image Sensor 1/3" CCD
Lens Angle 170 degrees
Video Standard PAL
Monitor Connection RCA (video + audio via second RCA connector)
IP Rating IP68
Minimum Illumination 0 lux (LEDs on)
Built-in Microphone Yes (secondary RCA audio output — compatible monitors only)
Operating Voltage 12V
Operating Temperature –20°C to +70°C
Includes Camera (0.45m cable to 4-pin male), 10m extension cable, connection cable (4-pin female to 2× RCA female + DC female), male-to-male RCA splice, 1.45m DC power cable, instructions
Vehicle Compatibility Renault Master X62 2011–2017

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Renault Master X62 2011–2017

Goes Well With:

  • PAL-compatible aftermarket head units and monitors with RCA input
  • Monitors with RCA audio input (for microphone feature)
  • Gator GRCANFLT CANBUS filter (for CANBUS interference in modern Master)

Frequently Asked Questions

Does this camera retain the factory brake light function?

The G169V replaces the factory rear door brake light housing. Confirm with the F.A.E. team whether the brake light function is retained — retaining a functional brake light is a legal requirement in Australia.

How does the built-in microphone work?

The G169V includes a built-in microphone that outputs audio via the secondary RCA connector on the connection cable. Connect this to the audio input on a compatible display monitor to hear ambient sounds from the rear of the vehicle. Not all monitors support audio input — confirm your monitor has an RCA audio input before relying on this feature.

Does this camera cover the Renault Master X70 (2019–on)?

The G169V is confirmed for the Renault Master X62 (2011–2017). The X70 (2019–on) is a different generation — contact the F.A.E. team to confirm whether a compatible camera is available for the newer Master generation.

Is the Renault Master X62 the same as the Vauxhall Movano and Nissan NV400?

Yes — the Renault Master X62, Vauxhall/Opel Movano, and Nissan NV400 share the same platform and body. The G169V is confirmed for the Renault Master X62 (2011–2017). Confirm with the F.A.E. team whether it also fits the Movano B or NV400 before purchasing.

Is the 10m cable sufficient for the Master?

The 10m cable (0.45m camera lead + 10m extension) is sufficient for most standard and medium-wheelbase Master configurations. For long-wheelbase or Maxi variants, measure the routing distance before purchasing.
