Gator G164V Vehicle Specific Reverse Camera Suit Mercedes Sprinter 2007 - 2018
Click to open expanded view
GATOR logo

Gator G164V Vehicle Specific Reverse Camera Suit Mercedes Sprinter 2007 - 2018

SKU: G164V
Sale price
$403.19
Regular price
$447.99
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

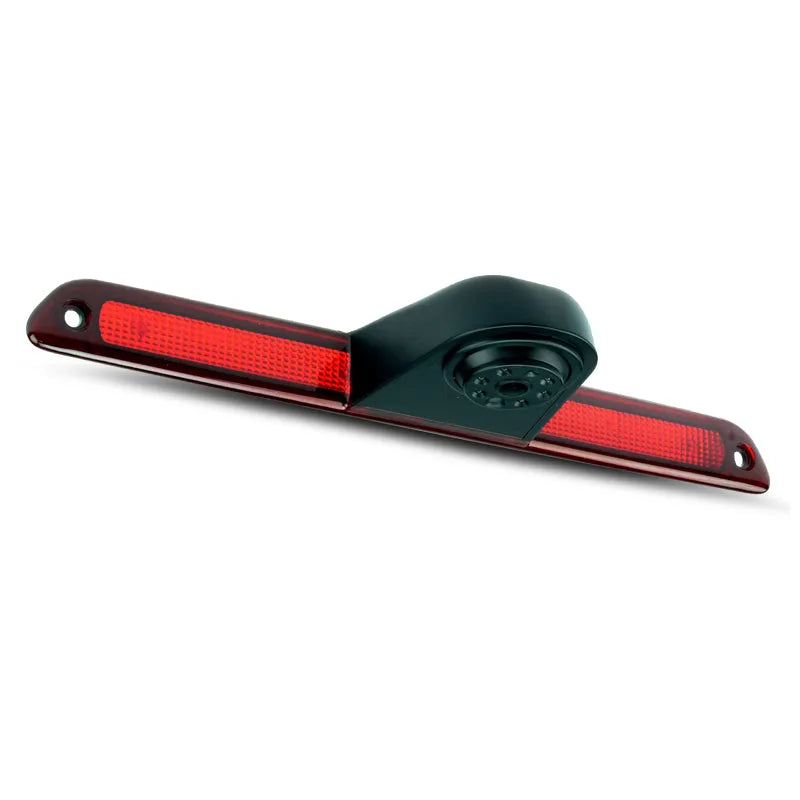

Gator G164V Vehicle-Specific Reverse Camera for Mercedes Sprinter (2007–2018)

A vehicle-specific brake light replacement reverse camera for the Mercedes Sprinter (2007–2018) 170-degree 1/3-inch CCD with infrared LEDs, IP68, PAL, built-in microphone, 10m cable included.

Product Overview

The Gator G164V is a vehicle-specific reverse camera for the Mercedes Sprinter van (2007–2018). It replaces the factory high-level brake light no drilling, discreet OEM-appearance installation.

The 1/3-inch CCD sensor with integrated infrared LEDs delivers 0 lux night vision. 170-degree wide-angle lens. IP68 rated. PAL RCA output. 10m cable kit included.

The built-in microphone outputs audio via the white RCA connector ambient sounds from behind the vehicle can be heard at a compatible display monitor. An adhesive pad is included for cable management.

Features & Benefits

  • Replaces factory high-level brake light — no drilling
  • Mercedes Sprinter 2007–2018 specific
  • 170-degree 1/3-inch CCD lens with infrared LEDs — 0 lux night vision
  • IP68 rated — waterproof and weatherproof
  • Built-in microphone — audio via white RCA (compatible monitors only)
  • PAL output — compatible with PAL aftermarket monitors
  • 10m cable kit included
  • Adhesive pad included (cable management)
  • Operating temperature: –20°C to +70°C

Technical Specs

Specification Detail
SKU / Part Number G164V
Brand Gator
Camera Type Reverse
Image Sensor 1/3" CCD
Lens Angle 170 degrees
Video Standard PAL
Monitor Connection RCA (video) + RCA white (audio)
IP Rating IP68
Minimum Illumination 0 lux (LEDs on)
Built-in Microphone Yes (white RCA audio output — compatible monitors only)
Operating Voltage 12V
Operating Temperature –20°C to +70°C
Includes Camera (0.7m cable to 4-pin male), 10m extension cable, connection cable (4-pin female to RCA video female + RCA audio female + DC female), male-to-male RCA splice, 1.5m DC power cable, adhesive pad, instructions
Vehicle Compatibility Mercedes Sprinter 2007–2018

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Mercedes Sprinter 2007–2018

Goes Well With:

  • PAL-compatible aftermarket head units and monitors with RCA input
  • Monitors with RCA audio input (for microphone feature)
  • Gator GRCANFLT CANBUS filter (for CANBUS interference in modern Sprinter models)

Frequently Asked Questions

Does this camera retain the factory brake light function?

The G164V replaces the factory high-level brake light housing. Confirm with the F.A.E. team whether the brake light function is retained — retaining a functional high-level brake light is a legal requirement in Australia.

How does the built-in microphone work?

The G164V includes a built-in microphone that outputs audio via the white RCA connector. Connect the white RCA to the audio input on a compatible display monitor to hear ambient sounds from behind the vehicle. Not all monitors support audio input — confirm your monitor has an RCA audio input before relying on this feature.

Does this camera cover both the NCV3 and W906 Sprinter generations?

The G164V is confirmed for the Mercedes Sprinter 2007–2018. This spans the W906 second generation (2006–2018), covering most of the production run. The T1N first generation (pre-2006) and the VS30 third generation (2018–on) are not covered. Confirm with the F.A.E. team for your specific Sprinter generation.

Is the 10m cable sufficient for the Sprinter?

The 10m cable (0.7m camera lead + 10m extension) is sufficient for standard-wheelbase Sprinter configurations. For long-wheelbase or extra-long-wheelbase Sprinters, measure the routing distance before purchasing.

Does this camera fit the Mercedes Vito or Viano?

The G164V is specified for the Mercedes Sprinter only. Compatibility with the Vito or Viano is not confirmed — contact the F.A.E. team to confirm fitment for other Mercedes van models.
