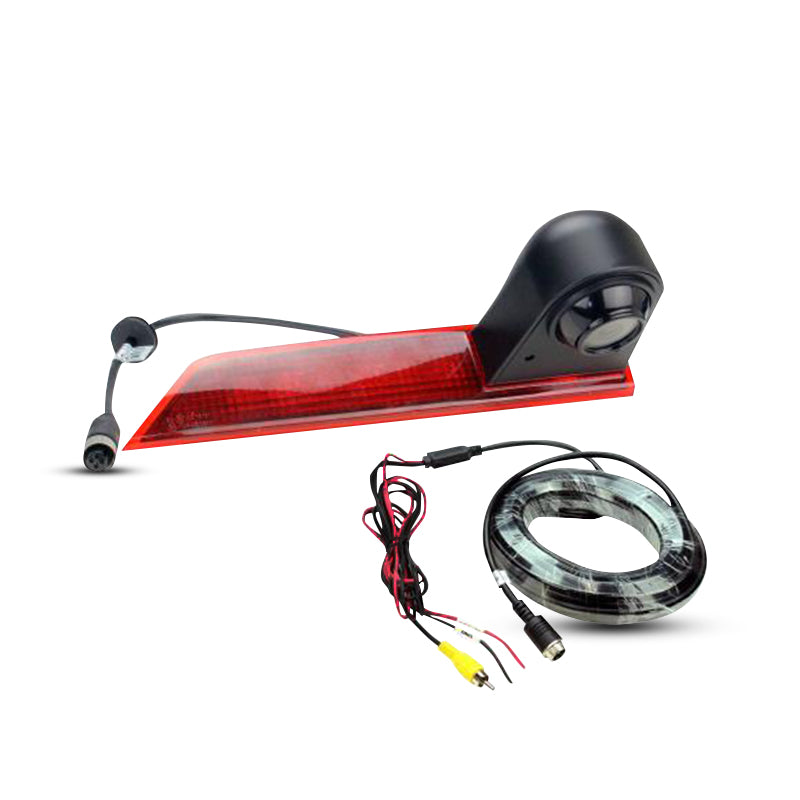

Gator G163V Vehicle-Specific Reverse Camera for Ford Transit (2013–2017)

A vehicle-specific reverse camera for the Ford Transit (2013–2017) replaces the factory high-level brake light for a completely discreet installation with no drilling. IP69K, 120-degree CMOS, infrared LEDs, 0 lux, PAL RCA, 10.35m total cable.

Product Overview

The Gator G163V is a vehicle-specific reverse camera for the Ford Transit van (2013–2017). It replaces the factory high-level brake light housing at the rear of the vehicle with an integrated camera providing a completely discreet installation with no visible camera, no drilling, and no additional holes.

The CMOS image sensor with integrated infrared LEDs delivers 0 lux night vision. IP69K rating withstands high-pressure water jets and steam cleaning meeting the standard for work vans regularly pressure-washed. Wide operating temperature range: –40°C to +80°C.

Mirror image is supported the camera view can be set to reverse (mirrored) orientation.

The kit includes a 0.35m camera cable to a 4-pin connector plus a 10m extension cable 10.35m total sufficient to reach from the rear to the head unit in most Transit configurations.

Features & Benefits

  • Replaces factory high-level brake light — no drilling, fully discreet installation
  • IP69K rated — high-pressure water jet and steam cleaning resistance
  • CMOS image sensor with infrared LEDs — 0 lux night vision
  • 120-degree field of view — minimises blind spots
  • PAL output — compatible with PAL aftermarket monitors and head units with RCA input
  • Mirror image supported
  • 10.35m total cable (0.35m + 10m extension)
  • Operating temperature: –40°C to +80°C

Technical Specs

Specification Detail
SKU / Part Number G163V
Brand Gator
Camera Type Reverse
Image Sensor CMOS
Lens Angle 120 degrees
Video Standard PAL
Monitor Connection RCA
Mirror Image Yes
IP Rating IP69K
Minimum Illumination 0 lux (infrared)
Operating Voltage 12V
Operating Temperature –40°C to +80°C
Weight 0.72 kg
Vehicle Compatibility Ford Transit 2013–2017
Includes Camera (0.35m cable to 4-pin connector), 10m extension cable (4-pin female to RCA, power wire, ground wire), 2× extension bolts, camera adjusting tool, instructions

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Ford Transit 2013–2017

Goes Well With:

  • Aftermarket head units with PAL RCA reverse camera input
  • Gator reversing monitors with PAL RCA input
  • Gator GRCANFLT CANBUS filter (if CANBUS interference is experienced)

Frequently Asked Questions

Does this camera retain the factory brake light function?

Supplier data does not confirm whether the high-level brake light function is retained or replaced. Contact the F.A.E. team to confirm brake light compliance before purchasing — retaining the high-level brake light is a legal requirement in Australia.

Does installation require drilling?

No. The G163V replaces the factory high-level brake light housing — no additional drilling is required.

Does the camera display a mirrored image?

Yes — mirror image is supported, allowing the camera to display the correct mirrored reverse view. Confirm whether your head unit or monitor applies its own mirror function to avoid double-flipping the image.

Is IP69K relevant for a Ford Transit van?

Yes. Work vans used in agriculture, construction, and trade industries are regularly pressure-washed or steam-cleaned. IP69K ensures the camera survives these conditions without water ingress.

What year range does this camera cover?

The G163V is specified for the Ford Transit 2013–2017. For earlier or later Transit models, contact the F.A.E. team to confirm whether a compatible camera option is available.

Weight

0.72 kg
