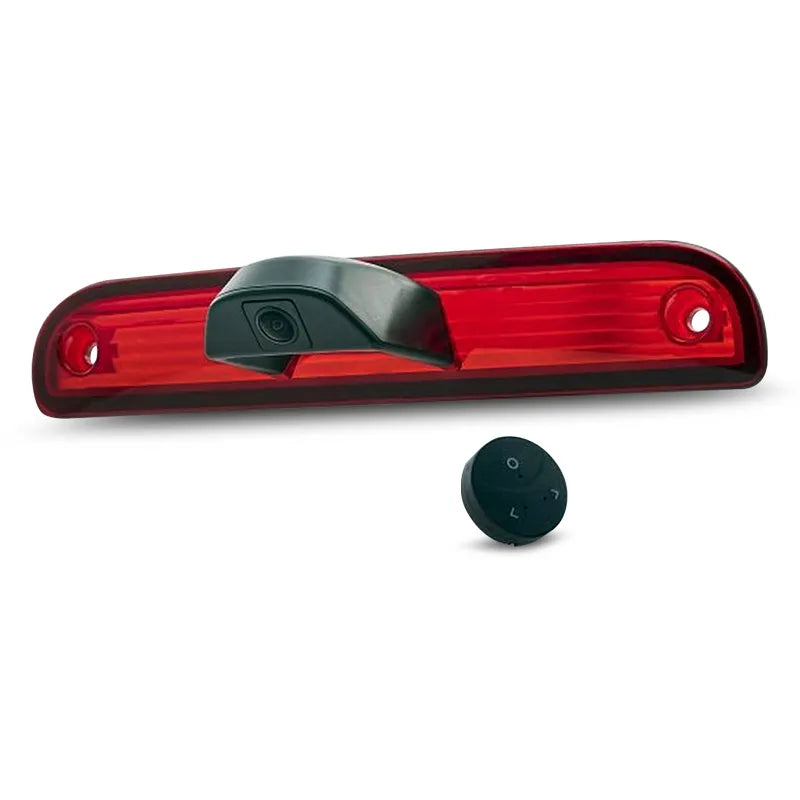

Gator G162V Brake Light 5-In-1 Camera With Wireless Controller To Suit Fiat Ducato

Gator G162V Fiat Ducato 5-In-1 Brake Light Camera with Wireless Controller (2006–2015)

A vehicle-specific 5-in-1 camera for the Fiat Ducato (2006–2015) replaces the factory OEM brake light at the top rear of the vehicle. Five switchable viewing modes, wireless controller, dynamic parking guidelines, IP67, NTSC RCA, 15m cable.

Product Overview

The Gator G162V is the Fiat Ducato-specific version of the G42V 5-in-1 camera sharing the same five-mode viewing system and wireless controller, but in a brake light housing that replaces the factory OEM brake light at the top rear of the vehicle for a completely OEM-appearance installation.

Five switchable viewing modes via the wireless controller:

1. Birds-eye: Overhead perspective for tight manoeuvres.
2. Wide angle (180°): Broad rear view for reversing and loading dock work.
3. Reverse mode (150°): Standard reversing view with optional dynamic guidelines.
4. Left/right blind spot: Focused side view for lane-change awareness.
5. Driving mode: Mimics a rear view mirror while driving forward.

Important — brake light compliance: The G162V replaces the OEM brake light. Confirm with the F.A.E. team whether the factory brake light function is retained after installation to ensure legal compliance with Australian road regulations.

NTSC output — confirm your head unit or monitor accepts NTSC camera input before purchasing.

Features & Benefits

• Vehicle-specific fit — replaces factory OEM brake light in Fiat Ducato
• 5 switchable viewing modes via wireless controller
• Dynamic parking guidelines in reverse mode
• 210°(H) × 140°(V) maximum lens coverage
• IP67 rated — waterproof and weather resistant
• Wireless controller for mode switching from driver's seat
• 15m video cable with Mini-DIN connectors
• Reverse trigger on cable — auto-activates on reverse gear
• NTSC RCA output

Technical Specs

Compatible With / Goes Well With

Direct Vehicle Fit:

• Fiat Ducato 2006–2012
• Fiat Ducato 2012–2014
• Fiat Ducato 2015

Goes Well With:

• Any NTSC-compatible aftermarket head unit or monitor with RCA input
• Gator GT700SD, GT704SD monitors (PAL/NTSC auto-switching)
• Gator GRCANFLT CANBUS filter (for modern CANBUS Ducato models)

Frequently Asked Questions

Does this camera retain the factory brake light function?

The G162V replaces the factory OEM brake light housing. Confirm with the F.A.E. team whether the brake light function is retained after installation — this is a legal compliance requirement in Australia.

What is the difference between the G162V and the G42V?

Both are 5-in-1 cameras with identical spec (210°×140° lens, NTSC, IP67, 15m cable, wireless controller). The G42V uses a universal flush mount design suited to any van's flat surface. The G162V uses a Fiat Ducato-specific brake light housing for an OEM-integrated appearance. Choose the G162V for Ducato-specific installation; choose the G42V for any other van.

What is the difference between the G162V and the G159V?

Both are Fiat Ducato-specific cameras. The G159V is a single reverse/rear view camera in a brake light surround bracket — 170 degrees, PAL/NTSC switchable, IP68. The G162V is a 5-in-1 camera with wireless controller — 210 degrees maximum, NTSC only, IP67. The G162V offers significantly more functionality; the G159V is the simpler, higher-IP-rated option.

What year Fiat Ducatos does this camera fit?

The G162V covers Fiat Ducato 2006–2012, 2012–2014, and 2015 — spanning the third and fourth generation Ducato. Confirm your specific production year with the F.A.E. team, as there may be body variant differences within these ranges.

This camera is NTSC — will it work with my head unit?

The G162V outputs NTSC. Most modern aftermarket head units auto-switch between PAL and NTSC. Confirm your head unit accepts NTSC camera input before purchasing.
