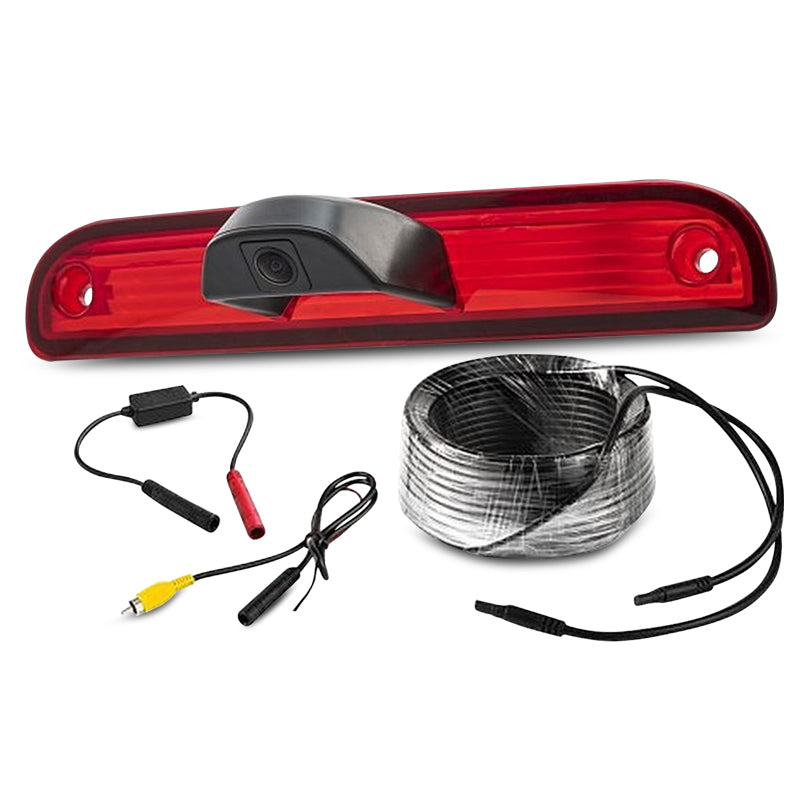

Gator G161V Vehicle Specific Brake Light Reverse Camera To Suit Fiat Ducato

Flush Mount Design with Brake Light Housing for Discreet Installation

Brake Light Reverse Camera
The G161 v Reverse Camera Solution Provides a Clear View at The Rear of A Fiat Ducato Van. It Features a Super Wide 170° Viewing Angle that Significantly Minimises Blind Spots and Has Optional Reverse Guidelines that Can Be Enabled/disabled During Installation.

Designed Specifically for Fiat Ducato Commercial Vans, the Camera Simply Replaces the Oem Brake Light on The Vehicle, Allowing for Optimal Position at The Top Rear of The Vehicle. Optional Guidelines for Reversing that Can Be Enabled/disabled During Camera Installation.

Features:

• Super wide 170 degree viewing angle significantly reduces blind spots at the rear of the vehicle
• Flush mount design with brake light housing for discreet installation
• Suitable for Fiat Ducato commercial vans, camera replaces factory brake light positioned at the top rear of the vehicle
• Optional guidelines for reversing that can be enabled/disabled during camera installation
• IP67 Rated, will withstand harsh operating environments and weather conditions
• 15M video extension cable included with mini din connectors
• Compatible with all aftermarket display monitors and AV headunits that are NTSC compatible and feature an RCA input

Specifications:

• Resolution: 720 x 480
• Mount Type: Brake Light Mount
• Reverse or Rear View: Reverse
• Lens Angle: 170 Degree
• Image Sensor (CMOS or CCD): CMOS
• Parking Gridlines: Switchable On/Off
• PAL or NTSC: NTSC
• IP Rating: IP67
• Voltage: 12V
• Minimum Illumination: N/A
• Number of LED's: N/A
• LED Type: N/A
• Plug Type Camera End: Mini DIN Plug
• Plug Type Monitor End: RCA
• Length of Video Cable: 15M
• Reverse Trigger in Video Cable: Yes
• Dimensions (Camera Only): N/A
• Dimensions (Camera & Bracket): N/A
• Wired or Wireless: Wired
• Country of Manufacture: China
• Other Features: N/A

Vehicle Compatibility:

• Fiat Ducato 2006 - 2012
• Fiat Ducato 2012 - 2014
• Fiat Ducato 2015
