Gator G158VC Vehicle Specific Reverse Camera To Suit Isuzu D-Max - Chrome
Click to open expanded view
GATOR logo

Gator G158VC Vehicle Specific Reverse Camera To Suit Isuzu D-Max - Chrome

SKU: G158VC
Sale price
$339.30
Regular price
$377
You save
10%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Gator G158VC Vehicle-Specific Reverse Camera for Isuzu D-Max (2012–2020), Chrome

The chrome version of the G158V a vehicle-specific tailgate handle replacement reverse camera for the Isuzu D-Max. Same specification: 150-degree, PAL/NTSC switchable, IP68, switchable guidelines and mirror image via loop, 8m extension cable.

Important: Suits models without factory locking tailgate. Covers all D-Max 2012–2015 variants and SX grade only from 2016–2020.

Product Overview

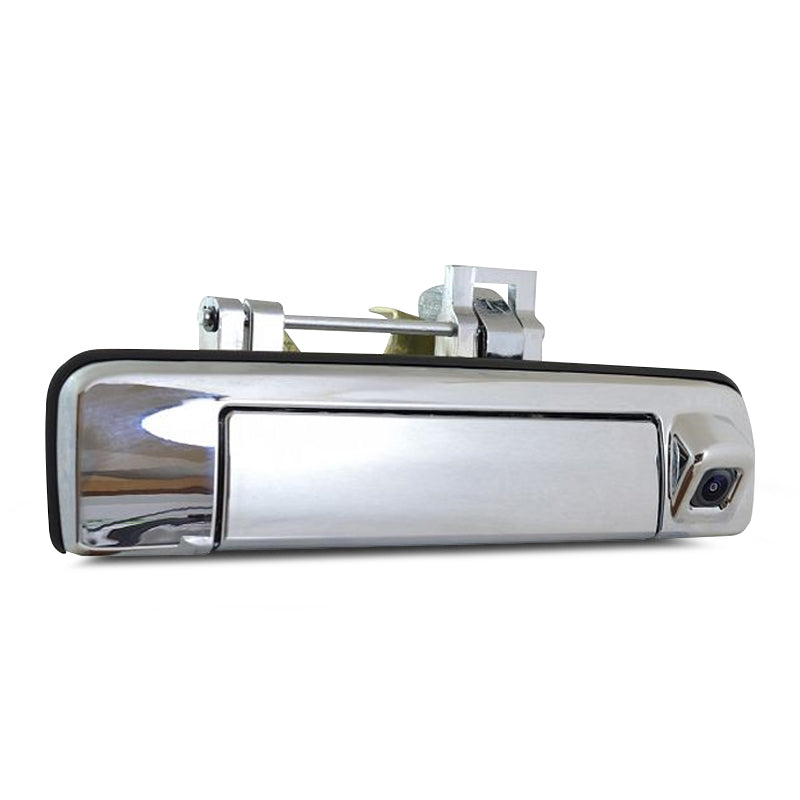

The Gator G158VC is the chrome finish version of the G158V Isuzu D-Max tailgate handle reverse camera. It replaces the factory tailgate handle with a chrome housing integrating a reverse camera suited to D-Max models with chrome or brushed tailgate handles where black would not match.

Same specification as the G158V: loop system for guidelines and mirror image, IP68, 150-degree, PAL/NTSC switchable, 8m cable. See the G158V listing for full installation and compatibility notes.

Only suitable for D-Max models without factory locking tailgate. 2016–2020 coverage limited to SX grade only.

Loop system:

  • Green loop: Default guidelines ON → cut to remove
  • White loop: Default normal image → cut for mirror image

Features & Benefits

  • Chrome finish — matches chrome tailgate handles on compatible D-Max variants
  • Replaces factory tailgate handle — no drilling
  • Only suitable for D-Max models without factory locking tailgate
  • 150-degree wide-angle lens
  • PAL/NTSC switchable
  • Switchable parking guidelines and mirror image via loop
  • IP68 rated
  • 8m extension cable included
  • 0.2 lux minimum illumination

Technical Specs

Specification Detail
SKU / Part Number G158VC
Brand Gator
Housing Colour Chrome
Camera Type Reverse / rear-view
Lens Angle 150 degrees
Video Standard PAL/NTSC switchable
Monitor Connection RCA
Parking Guidelines Switchable — default ON (cut green loop to remove)
Mirror Image Switchable — default normal (cut white loop for mirror)
IP Rating IP68
Minimum Illumination 0.2 lux
Operating Voltage 12V
Operating Temperature –20°C to +70°C
Tailgate Lock Not accommodated — models without factory locking tailgate only
Includes Camera in tailgate handle housing, 8m extension cable, instructions
Vehicle Compatibility Isuzu D-Max 2012–2015 (all badges); Isuzu D-Max 2016–2020 (SX only)

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Isuzu D-Max 2012–2015 (all badges)
  • Isuzu D-Max 2016–2020 (SX grade only)

Not compatible with:

  • Isuzu D-Max 2016–2020 LS, LS-U, LS-M, X-Runner and other grades with factory locking tailgate

Goes Well With:

  • Aftermarket head units with RCA reverse camera input (PAL or NTSC)
  • Gator reversing monitors with PAL or NTSC RCA input
  • Stinger BN25K9306B Isuzu D-Max fascia kit (if also upgrading the head unit)

Frequently Asked Questions

What is the difference between the G158VC and the G158V?

The G158VC is chrome finish; the G158V is black. All other specifications are identical. Choose the chrome version for D-Max models with chrome tailgate handles; choose black for models with black handles.

What does "without factory locking tailgate" mean?

Some Isuzu D-Max grades have a factory locking tailgate integrated into the central locking system. The G158VC housing does not include a lock provision and is incompatible with this feature. Only D-Max models with a standard non-locking handle are suitable. Confirm your D-Max grade with the F.A.E. team before purchasing.

Why is only the SX grade compatible from 2016–2020?

From 2016, higher-spec D-Max grades (LS, LS-U, LS-M, etc.) gained factory locking tailgates. The SX is the base-grade D-Max which retained the non-locking handle. Confirm your grade before purchasing.

What loop cuts are required for a standard Australian reverse camera installation?

Cut the white loop (enables mirror image) for a standard reverse display. Cut the green loop if parking guidelines are not required.

Is a black version available?

Yes — the Gator G158V is the black housing version with identical specification.
