Product features

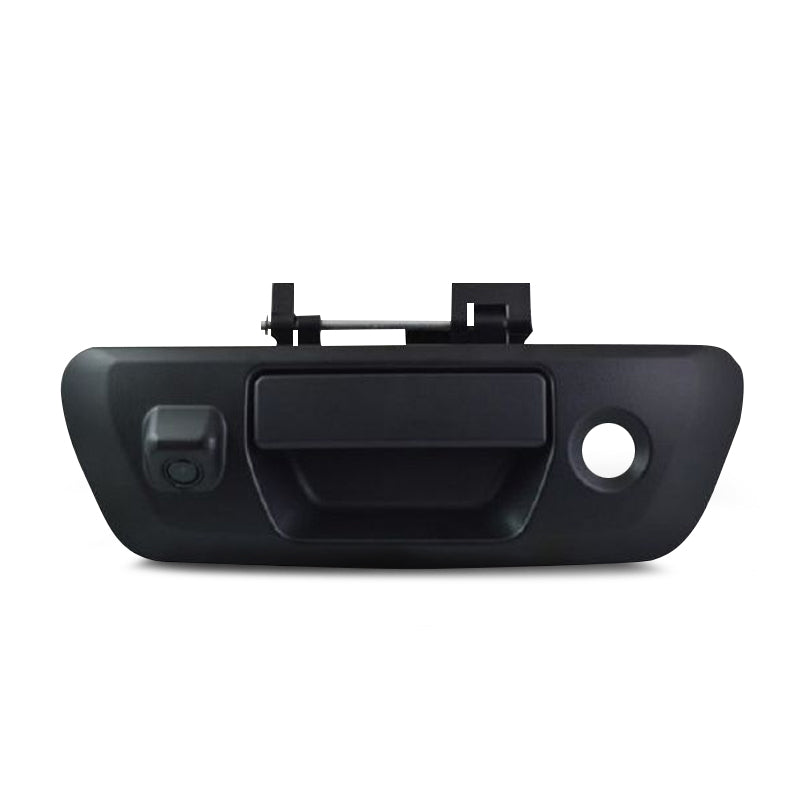

Gator G157V Vehicle-Specific Reverse Camera for Nissan Navara NP300 (2015–On), Black

A vehicle-specific tailgate handle replacement reverse camera for the Nissan Navara NP300 (2015–on) 150-degree wide angle, PAL/NTSC switchable, IP68, switchable guidelines and mirror image via loop, 8m extension cable. Retains factory tailgate lock.

Product Overview

The Gator G157V is a vehicle-specific reverse camera for the Nissan Navara NP300 (2015–on). It replaces the factory tailgate handle with a camera housing no drilling required, factory tailgate lock retained.

The loop system configures parking guidelines and mirror image at installation:

  • Green loop: Default parking guidelines ON → cut to remove guidelines
  • White loop: Default normal (non-mirrored) image → cut to enable mirror image

For a standard Australian reverse camera installation (PAL head unit, mirror image, no guidelines): cut the white loop. Cut the green loop if guidelines are also not wanted.

IP68 rated, –20°C to +70°C. 150-degree field of view. 0.2 lux minimum illumination.

Features & Benefits

  • Replaces factory tailgate handle — no drilling, OEM-appearance installation
  • Factory tailgate lock retained — no extra keys required
  • 150-degree wide-angle lens — minimises blind spots
  • PAL/NTSC switchable — compatible with all aftermarket monitors
  • Switchable parking guidelines — ON by default, cut green loop to remove
  • Switchable mirror image — normal by default, cut white loop for mirror
  • IP68 rated — waterproof for harsh Australian conditions
  • 8m extension cable included
  • 0.2 lux minimum illumination
  • Operating temperature: –20°C to +70°C

Technical Specs

Specification Detail
SKU / Part Number G157V
Brand Gator
Housing Colour Black
Camera Type Reverse / rear-view
Lens Angle 150 degrees
Video Standard PAL/NTSC switchable
Monitor Connection RCA
Parking Guidelines Switchable — default ON (cut green loop to remove)
Mirror Image Switchable — default normal (cut white loop for mirror)
IP Rating IP68
Minimum Illumination 0.2 lux
Operating Voltage 12V
Operating Temperature –20°C to +70°C
Includes Camera in tailgate handle housing, 8m extension cable, instructions
Vehicle Compatibility Nissan Navara NP300 2015–on

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Nissan Navara NP300 2015–on

Goes Well With:

  • Aftermarket head units with RCA reverse camera input (PAL or NTSC)
  • Gator reversing monitors with PAL or NTSC RCA input
  • Gator GRCANFLT CANBUS filter (for CANBUS interference in modern NP300)

Frequently Asked Questions

What loop cuts are required for a standard Australian reverse camera installation?

The G157V defaults to normal (non-mirrored) image with guidelines ON. For a standard Australian PAL installation with mirror image and no guidelines: cut the white loop (enables mirror image) and cut the green loop (removes guidelines). If you prefer to keep guidelines, only cut the white loop.

Does installation require drilling?

No. The G157V replaces the factory tailgate handle — no additional drilling is required.

Does this camera retain the factory tailgate lock?

Yes. The G157V housing retains the original tailgate lock mechanism — no extra keys required.

What is the difference between the G157V (NP300) and the G156V (D40)?

Both are black Nissan Navara tailgate handle replacement cameras with the same specification (150-degree, PAL/NTSC, IP68, green/white loop system, 8m cable). The G157V fits the NP300 (2015–on); the G156V fits the D40 (2007–2015). They are not interchangeable — confirm your Navara generation before purchasing.

Is this camera compatible with all NP300 variants including ST, ST-X, and Pro-4X?

The G157V is specified for the Nissan Navara NP300 (2015–on). Fitment across specific trim levels is not confirmed — contact the F.A.E. team to confirm compatibility for your specific NP300 variant before purchasing.
