Product features

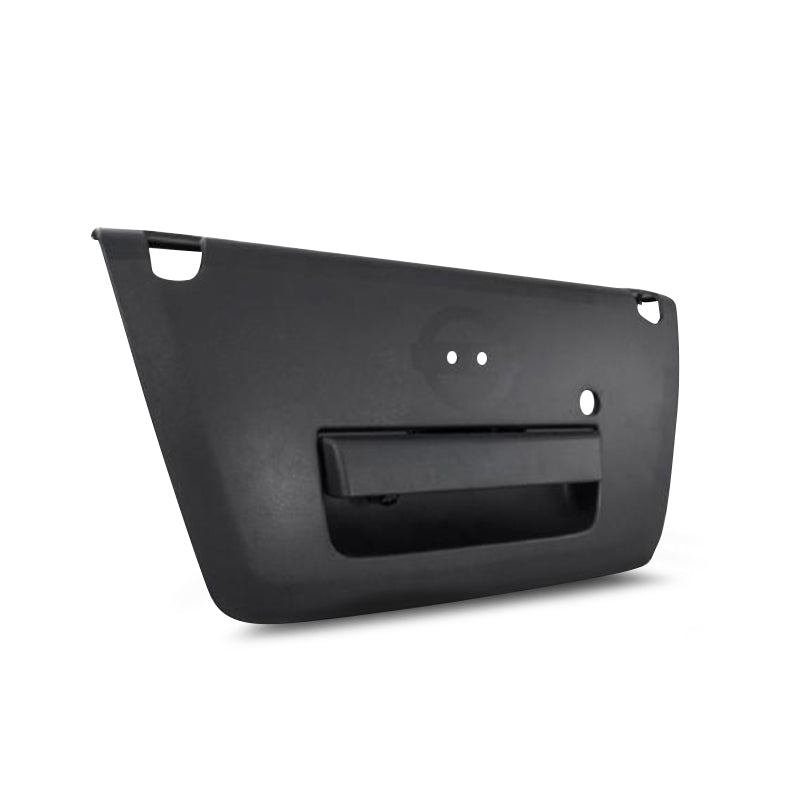

Gator G156V Vehicle-Specific Reverse Camera for Nissan Navara D40 (2007–2015), Black

A vehicle-specific tailgate handle replacement reverse camera for the Nissan Navara D40 (2007–2015) 150-degree wide angle, PAL/NTSC switchable, IP68, switchable guidelines and mirror image via loop, 8m extension cable. Retains factory tailgate lock.

Product Overview

The Gator G156V is a vehicle-specific reverse camera for the Nissan Navara D40 (2007–2015). It replaces the factory tailgate handle with a camera housing no drilling required, factory tailgate lock retained.

The PAL/NTSC compatibility, parking guidelines, and mirror image orientation are all set during installation via loop cuts:

  • Green loop: Default parking guidelines ON → cut to remove guidelines
  • White loop: Default normal (non-mirrored) image → cut to enable mirror image

For a standard Australian reverse camera installation (PAL head unit, mirror image, no guidelines): cut the white loop. Cut the green loop if guidelines are also not wanted.

IP68 rated, –20°C to +70°C. 150-degree field of view. 0.2 lux minimum illumination.

Features & Benefits

  • Replaces factory tailgate handle — no drilling, OEM-appearance installation
  • Factory tailgate lock retained — no extra keys required
  • 150-degree wide-angle lens — minimises blind spots
  • PAL/NTSC switchable — compatible with all aftermarket monitors
  • Switchable parking guidelines — ON by default, cut green loop to remove
  • Switchable mirror image — normal by default, cut white loop for mirror
  • IP68 rated — waterproof for harsh Australian conditions
  • 8m extension cable included
  • 0.2 lux minimum illumination
  • Operating temperature: –20°C to +70°C

Technical Specs

Specification Detail
SKU / Part Number G156V
Brand Gator
Housing Colour Black
Camera Type Reverse / rear-view
Lens Angle 150 degrees
Video Standard PAL/NTSC switchable
Monitor Connection RCA
Parking Guidelines Switchable — default ON (cut green loop to remove)
Mirror Image Switchable — default normal image (cut white loop for mirror)
IP Rating IP68
Minimum Illumination 0.2 lux
Operating Voltage 12V
Operating Temperature –20°C to +70°C
Includes Camera in tailgate handle housing, 8m extension cable, instructions
Vehicle Compatibility Nissan Navara D40 2007–2015

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Nissan Navara D40 2007–2015

Goes Well With:

  • Aftermarket head units with RCA reverse camera input (PAL or NTSC)
  • Gator reversing monitors with PAL or NTSC RCA input
  • Gator GRCANFLT CANBUS filter (for CANBUS interference)

Frequently Asked Questions

What loop cuts are required for a standard Australian reverse camera installation?

The G156V defaults to normal (non-mirrored) image with guidelines ON. For a standard Australian PAL installation with mirror image and no guidelines: cut the white loop (enables mirror image) and cut the green loop (removes guidelines). If you want guidelines, only cut the white loop.

Does installation require drilling?

No. The G156V replaces the factory tailgate handle — no additional drilling is required.

Does this camera retain the factory tailgate lock?

Yes. The G156V housing retains the original tailgate lock mechanism — no extra keys required.

Does this camera fit both the Thailand-built and Spain-built Navara D40 variants?

The Nissan Navara D40 was assembled in both Thailand and Spain (European spec) with slightly different tailgate configurations. Contact the F.A.E. team to confirm fitment for your specific Navara D40 variant before purchasing.

Is this camera available in silver?

The G156V is available in black. Contact the F.A.E. team to confirm if a silver version is available for Navara D40 models with silver tailgate handles.
