Product features

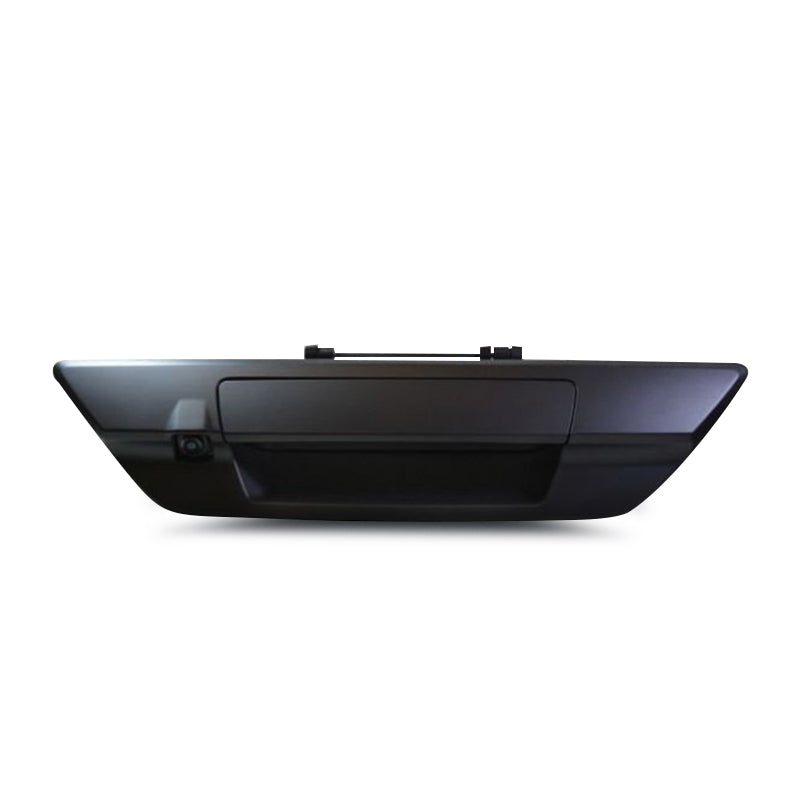

Gator G155V Vehicle-Specific Reverse Camera for Toyota Hilux (2015–On), Black

A vehicle-specific tailgate handle replacement reverse camera for the Toyota Hilux (2015–on) 150-degree wide angle, PAL/NTSC switchable (defaults to NTSC), IP68, switchable guidelines, 8m extension cable. Retains factory tailgate lock.

Product Overview

The Gator G155V is a vehicle-specific reverse camera for the Toyota Hilux (2015–on). It replaces the factory tailgate handle with a camera housing no drilling, factory tailgate lock retained.

Two loop cuts configure the camera at installation:

  • White loop: Default NTSC → cut for PAL
  • Green loop: Default parking guidelines ON → cut to remove guidelines

For a standard Australian PAL installation without guidelines: cut both white and green loops.

IP68 rated, –20°C to +70°C. 150-degree field of view. 0.1 lux minimum illumination (improved low-light over the 0.2 lux cameras in this range).

Note: This camera does not include a mirror image function.

Features & Benefits

  • Replaces factory tailgate handle — no drilling, OEM-appearance installation
  • Factory tailgate lock retained — no extra keys required
  • 150-degree wide-angle lens — minimises blind spots
  • PAL/NTSC switchable — default NTSC (cut white loop for PAL)
  • Switchable parking guidelines — ON by default, cut green loop to remove
  • No mirror image function
  • IP68 rated — waterproof for harsh Australian conditions
  • 0.1 lux minimum illumination — better low-light than 0.2 lux cameras
  • 8m extension cable included
  • Operating temperature: –20°C to +70°C

Technical Specs

Specification Detail
SKU / Part Number G155V
Brand Gator
Housing Colour Black
Camera Type Reverse
Lens Angle 150 degrees
Video Standard PAL/NTSC switchable — default NTSC (cut white loop for PAL)
Monitor Connection RCA
Parking Guidelines Switchable — default ON (cut green loop to remove)
Mirror Image No
IP Rating IP68
Minimum Illumination 0.1 lux
Operating Voltage 12V
Operating Temperature –20°C to +70°C
Includes Camera in tailgate handle housing, 8m extension cable, instructions
Vehicle Compatibility Toyota Hilux 2015–on

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Toyota Hilux 2015–on

Goes Well With:

  • Aftermarket head units with RCA reverse camera input (PAL or NTSC)
  • Gator reversing monitors with PAL or NTSC RCA input
  • Stinger BKTOYBR Toyota side mounting brackets (if also upgrading the head unit and fascia)
  • Gator GRCANFLT CANBUS filter (for CANBUS interference in modern Hilux)

Frequently Asked Questions

What loop cuts are required for a standard Australian PAL installation?

The G155V defaults to NTSC with guidelines ON. For a standard Australian PAL installation without guidelines: cut the white loop (switches to PAL) and the green loop (removes guidelines). If you want guidelines, only cut the white loop.

Does this camera have a mirror image function?

No. The G155V outputs a standard non-mirrored reverse image only. Confirm whether your head unit or monitor applies a mirror/flip function. If your head unit doesn't mirror the reverse image, the view will appear non-mirrored (correct for reversing when used with most screens that apply their own flip).

Does installation require drilling?

No. The G155V replaces the factory tailgate handle — no additional drilling is required.

Does the G155V fit the Hilux Rogue, SR5, and SR variants?

The G155V is specified for Toyota Hilux 2015–on. Fitment across specific trim levels (SR, SR5, Rogue, Workmate) is not confirmed — contact the F.A.E. team to confirm compatibility for your specific Hilux variant before purchasing.

Does this camera retain the factory tailgate lock?

Yes. The G155V housing retains the original Toyota Hilux tailgate lock mechanism — no extra keys required.
