Gator G154V Vehicle Specific Reverse Camera To Suit Volkswagen - Black

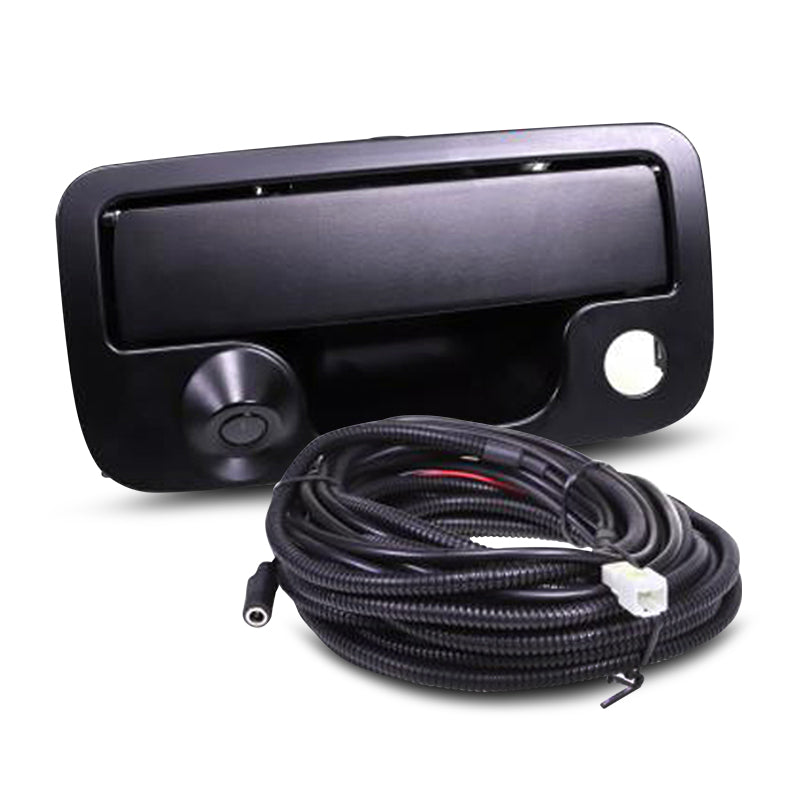

Gator G154V Volkswagen Amarok Tailgate Handle Reverse Camera (Black)

A vehicle-specific tailgate handle replacement reverse camera for the Volkswagen Amarok (2011–on) 168-degree wide angle, IP68, switchable parking guidelines, 8m extension cable, PAL RCA output. Retains original tailgate lock. No drilling required.

Product Overview

The Gator G154V is a vehicle-specific reverse camera for the Volkswagen Amarok (2011–on). It replaces the factory tailgate handle with a housing that integrates a reverse camera providing a completely discreet, OEM-appearance installation with no additional drilling. The factory tailgate lock mechanism is retained, so no additional keys or lock replacement is needed.

The 168-degree wide-angle lens provides a broad rear view with minimised blind spots. Parking guidelines are switched ON by default and can be removed by cutting the white loop on the camera cable during installation.

IP68 rated and operating from –20°C to +70°C built for Australian conditions.

Features & Benefits

• Replaces factory tailgate handle — no drilling, OEM-appearance installation
• Factory tailgate lock retained — no additional keys required
• 168-degree wide-angle lens — minimises blind spots
• Switchable parking guidelines — ON by default, cut white loop to remove
• IP68 rated — waterproof for harsh Australian conditions
• PAL output, RCA connection — compatible with PAL aftermarket monitors and head units
• 8m extension cable included
• Operating temperature: –20°C to +70°C
• 0.1 lux minimum illumination

Technical Specs

Compatible With / Goes Well With

Direct Vehicle Fit:

• Volkswagen Amarok 2011–2016
• Volkswagen Amarok 2017–on

Goes Well With:

• Aftermarket head units with PAL RCA reverse camera input
• Gator reversing monitors with PAL RCA input
• Gator GRCANFLT CANBUS filter (if experiencing interference with the Amarok's CANBUS system)

Frequently Asked Questions

Does this camera retain the factory tailgate lock?

Yes. The G154V housing has a provision for the original tailgate lock — the factory lock is kept intact and no additional keys are required.

Does installation require drilling?

No. The G154V replaces the factory tailgate handle — the entire camera housing sits in the existing handle location without any additional drilling.

How do I remove the parking guidelines?

Parking guidelines are set to ON by default. To remove them, cut the white loop on the camera cable during installation. This is a permanent setting change — once the loop is cut the guidelines will remain off.

Does this camera display a mirrored image?

No. The G154V outputs a non-mirrored rear view image. Confirm whether your head unit or monitor applies its own mirror/flip function before installing.

Is a 168-degree lens very wide and are there any distortion considerations?

168 degrees is an extremely wide field of view — wider than standard parking cameras — and will show some barrel distortion at the edges of the image, which is normal for very wide-angle lenses. The broad view is more useful for identifying hazards across the full rear width of the Amarok's wide tray.
