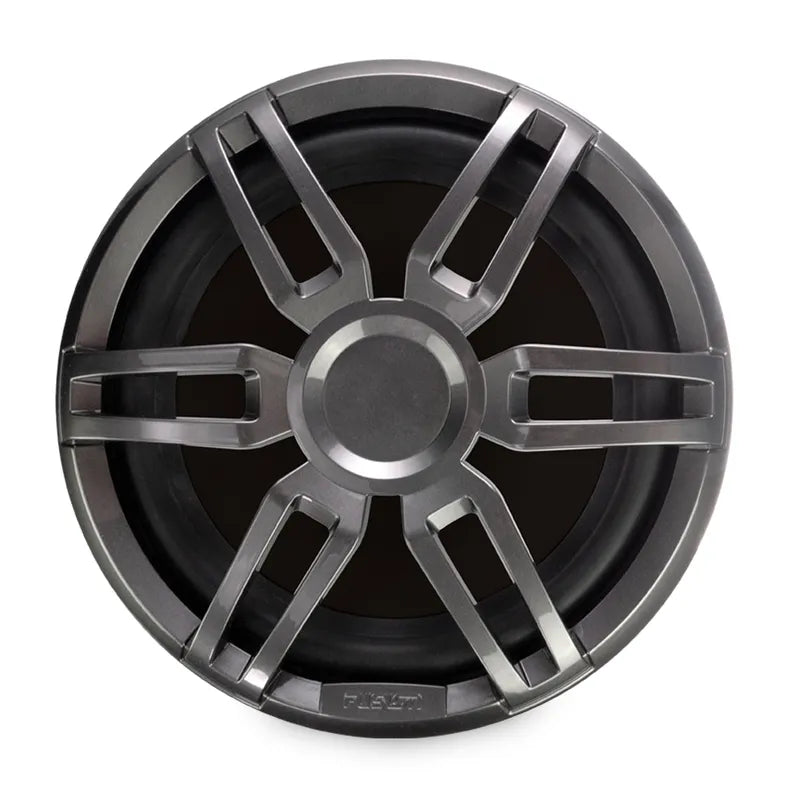

Fusion XS-S10SPGW 10" 600-Watt w/o LED XS Series Sports Marine Subwoofer

Experience Sound And Colour

The Fusion XS Series 6.5″ Wake Tower Speakers deliver high-performance acoustics and multicolour RGB LED lighting to your wake boat, enhancing your high-speed on-water experiences with quality audio.

Designed And Engineered To True-marine™ Standards
Built on the True-Marine design philosophy from Fusion, the XS Series subwoofers have achieved an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.

Designed To Comply With ISO12216
Tested to international standards for pressure and water ingress, the XS Series subwoofers are designed and built to the highest industry standards for quality and robustness.

Versatile System Integration
Built for system versatility and ease of integration, you can connect your XS Series subwoofer directly to a 2.1 audio zone compatible system such as the Apollo™ Series without the need for an external amplifier – reducing system cost and simplifying installation.

Injection-moulded Polypropylene Cone
By using a translucent cone, consistent multi-colour illumination is incorporated into the system. It also produces defined, high-resolution low-frequencies from excellent self-damping and bass reproduction.

Large Diameter Voice Coil
With an increase in real power and efficiency, the large-diameter voice coil delivers a truly high-quality sound experience.

High-quality Basket Construction
The basket is constructed using high-quality engineered plastics to deliver enhanced durability when exposed to the marine environment.

Features:

• Create a 2.1 audio zone to reduce system costs and simplify installation
• Enjoy high-resolution bass reproduction from the quality polypropylene cone.
• With an increase in real power, the voice coil provides a high-quality sound experience.
• The subwoofers are available in 10″ designs with both classic- and sports-style grilles.
• Engineered to last season after season, the subwoofers include a 3-year warranty.

Specifications:

• Physical dimensions (Diameter x Depth) Sports: 10.79" x 5.79" (274 x 147 mm)
• Water and dust rating IP65
• Speaker size 10"
• Peak power (Watts) 600 W
• RMS power (Watts) 120 W
• Sensitivity (1 W / 1 m) 87 dB
• Magnetic structure 41 oz
• Frequency response 30 Hz - 2 kHz
• Nominal impedance 4 ohms
• Recommended amplifier power (RMS) 40 - 300 W
• LED lighting Yes - RGB (XS-SL10SPGW)
• LED supply voltage 10.8-16 VDC (XS-SL10SPGW)
• LED load current @ 14.4 VDC 150 mA (XS-SL10SPGW)
• Operating temperature range 32° to 122° F (0° to 50° C)
• Voice coil diameter 1.5"
• Cone material Polypropylene cone with rubber surround
• Compass-safe distance 146" (370 cm)
• Warranty 3 years
• Mounting diameter clearance 8.78" (223 mm)
• Mounting depth clearance 4.45" (113 mm)
• Sealed enclosure volume1 1.4 cubic ft (40 L)

Accessories:

• Cables & Chargers
• Cases, Covers & Clips
• Remotes

Compatible Devices:

• Apollo RA670
• Apollo RA770
• Apollo WB670
• Fusion AM Series Marine Amp
• Fusion Apollo SRX400
• Fusion BB100 Black Box
• Fusion MS-RA60 Marine Stereo
• Fusion RA210 Marine Stereo
• Fusion RA210 Marine Stereo
• Fusion RA70 Series Marine Stereos
• Fusion Signature Series Marine Amp

What's in the Box:

• 10" 600-Watt Sports Marine Subwoofer
• Phillips stainless steel mounting screws (4.8 mm x 50 mm / 10 gauge x 2”)
• Speaker grilles (1 sports gray/1 sports white)
• Documentation
