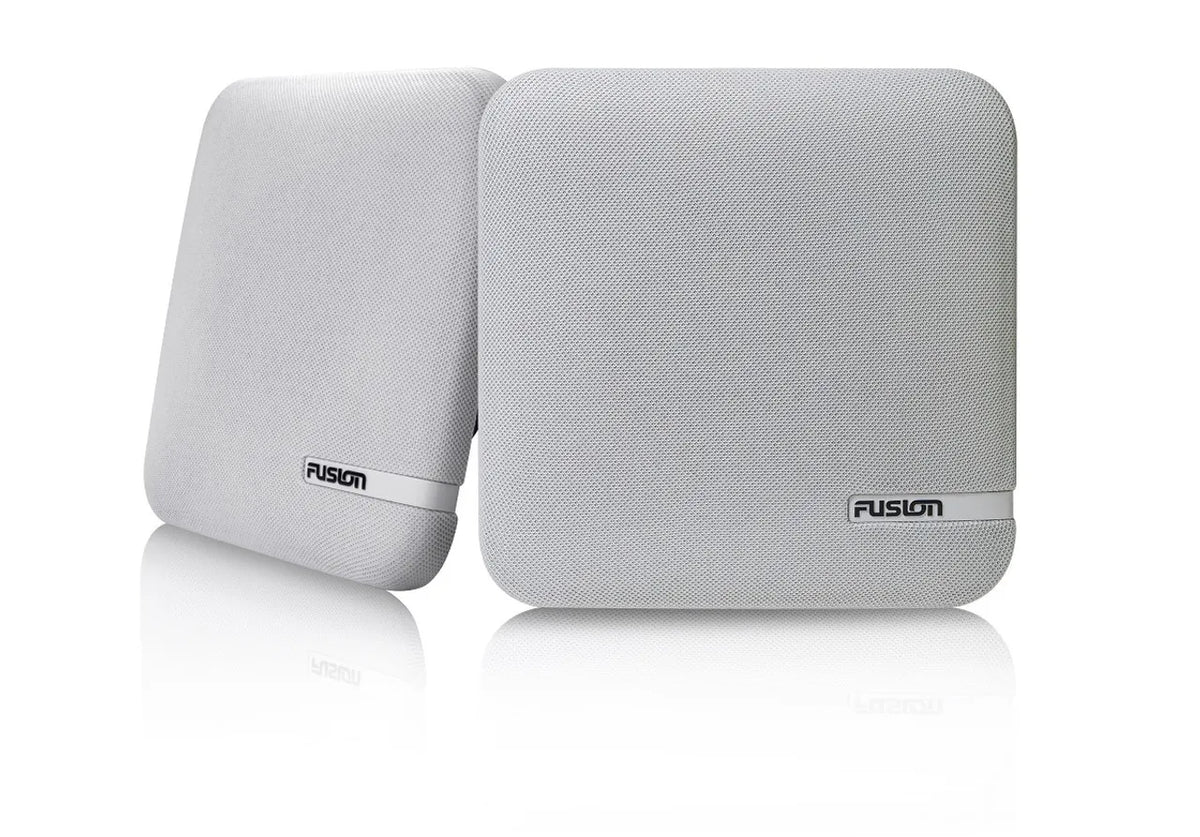

Fusion SM-F65CW 6.5" 100Watt Classic White Shallow Mount Marine Speaker Pair

Optimised Quality Audio Reproduction

The Fusion SM Series shallow mount speakers are designed for installations where mounting depth is limited, without compromising on sound quality and performance. The SM Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV. The SM Series speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water. Three accessory mounting spacers are available (each sold separately), allowing you to mount your SM Series speakers on board with versatility and ease. The enclosure allows for installation where mounting depth is limited, without compromising sound quality. The enclosure also protects the components from damage without needing rear speaker cups, simplifying installation. An optimised 3″ speaker driver is incorporated into the enclosure, with all acoustic parameters precisely calculated for quality audio reproduction wherever the speaker is installed.

Features:

• The unique shallow mount design features a mounting depth of only 0.94″ (24 mm).
• A high-end acoustic fabric finish with rounded edges and contours adds style to your boat.
• The tuned, sealed enclosure provides quality audio reproduction and protects the speaker components.
• The mounting diameter clearance of 5.12″ (130 mm) allows it to be retrofittable with most 6.50″ speaker cutouts.

Specifications:

• Physical dimensions (Diameter x Depth) 6.10″ x 1.81″ (155 x 46 mm)
• Water and dust rating IP65
• Configuration Full Range
• Speaker size 6.50″
• Peak power (Watts) 100 W
• Sensitivity (1 W / 1 m) 84 dB
• Frequency response 150 Hz-20 kHz
• Nominal impedance 4 ohms
• Operating temperature range 32° to 122° F (0° to 50° C)
• Voice coil diameter 20 mm
• Cone material Polypropylene cone with rubber surround
• Compass-safe distance 96.50″ (245 cm)
• Warranty 3 year
• Mounting diameter clearance 5.12″ (130 mm)
• Mounting depth clearance 0.94″ (24 mm)

Compatible Devices:

• Apollo RA670
• Apollo RA770
• Apollo WB670
• Fusion AM Series Marine Amp
• Fusion Apollo SRX400
• Fusion MS-BB100 Black Box
• Fusion MS-RA210 Marine Stereo
• Fusion MS-RA60 Marine Stereo
• Fusion RA70 Series Marine Stereos

Accessories:

• Cables & Charges
• Mounts

What's in the Box:

• One pair of speakers
• 8 Phillips stainless steel mounting screws (3.50 mm x 25.40 mm (6 gauge x 1″))
• Documentation
