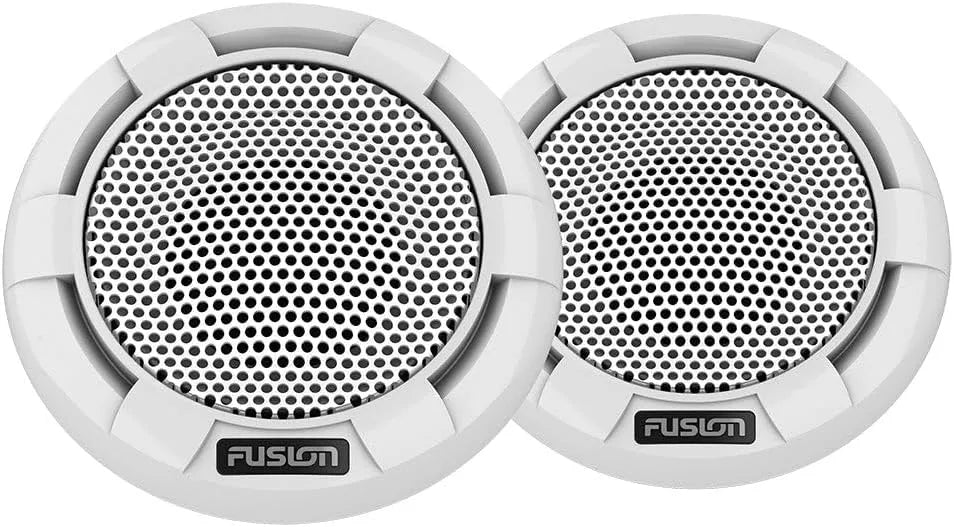

Fusion SG-TW101SPW Signature Series 3i Component Tweeters
Click to open expanded view
FUSION logo

Fusion SG-TW101SPW Signature Series 3i Component Tweeters

SKU: SGTW101SPW
Price
$159
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Enhance Your Listening Experience While You’re On The Move With These Marinized Component Tweeters

Designed to be dash-mounted in raised positions to restore high frequencies, you can hear vocals over engine, wind, and wave noise. Key features include a compact form factor, low-profile mounting design, IP65 weather rating, and True-Marine™ design with a 3-year warranty. Now with plug-and-play, water-resistant connectors as a standard, you can enjoy simplified installation and improved protection from the elements.

Specifications:

  • Physical dimensions (diameter x depth) 2.91" x 1.64" (74 x 41.6 mm)
  • Weight 4.2 oz (0.12 kg)
  • Water and dust rating IP65
  • Tweeter size 1"
  • Peak power (watt) 330 W
  • RMS power (watt) 60 W
  • Sensitivity (1 W / 1 m) 91 dB
  • Frequency response 3 kHz - 20 kHz
  • Nominal impedance 4 ohms
  • Recommended amplifier power (RMS) 25 - 140 W/Ch
  • Operating temperature range 32° to 122° F (0° to 50° C)
  • Voice coil diameter 1"
  • Material Aluminum dome
  • Tweeter connection Flying lead with water-resistant 2-way connector, 5.9" (150 mm)
  • Compass-safe distance 43.3" (110 cm)
  • Warranty 3 years
  • Mounting Dimensions
  • Mounting diameter clearance 2.01" (51 mm)
  • Mounting depth clearance 1.22" (31 mm)

Compatible Devices:

  • Fusion Apollo MS-RA670 Marine Amp
  • Fusion Apollo MS-RA770 Marine Stereo
  • Fusion ApollO MS-SRX400 Marine Zone Stereo
  • Fusion Apollo MS-WB670 Marine Hideaway Stereo
  • Fusion Apollo MS-WB675 Marine Hideaway Stereo
  • Fusion MS-BB100 Black Box
  • Fusion MS-RA210 Marine Stereo
  • Fusion MS-RA60 Marine Stereo
  • Fusion RA70 Series Marine Stereos
  • Fusion Signature Series 3i Marine Coxial Speakers

What's in the Box:

  • One pair of component tweeters
  • 6 Phillips stainless steel mounting screws (3.5 mm x 25.4 mm (6 gauge x 1”))
  • 2 water-resistant cable assemblies with 2-pin connector (5.9" (150 mm))
  • Documentation
