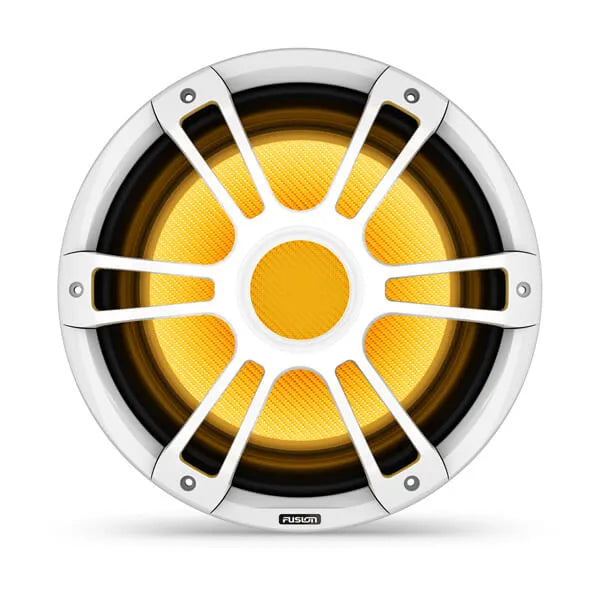

Fusion SG-SL123SPW 12" 1400-Watt CRGBW Sports White Marine Subwoofer

SKU: SGSL123SPW

No Longer Available. Please contact us for recommendations or alternatives. (02) 4257-2636

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Made For Life On The Water, Just Like You

Bring the thunder. The Signature Series 3i subwoofers deliver the drama with premium low frequencies to enhance your listening experience.

New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment. Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year. Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year warranty. This technology provides exceptional self-dampening, high-fidelity, and bass reproduction to give you the most premium onboard listening experience imaginable. Cool white, red, green, blue, warm white. You can choose or mix colors to match the mood of your music.
These subwoofers are designed to work optimally with Fusion® stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion-Link™ smart-device app for setup. Available in white or gray, CRGBW LED lights are standard in 12” sizes and optional in 10” sizes. The classically styled perforated metal grille is available in 10” size.

Features:

  • Crystal-clear premium sound quality is suited for the marine environment.
  • Water-resistant connectors provide simplified installation and superior protection.
  • The rigorously tested marinized design has an IP65 rating.
  • Available in classic 10” design as well as 10” and 12” sports style design.
  • CRGBW LED lights set the scene on your boat
  • Built to last season after season, the Signature Series 3i subwoofers include a supported 3-year warranty.

Specifications:

  • Physical dimensions (diameter x depth) 12" sports subwoofer: 14.02" x 10" (356 x 254 mm)
  • Weight 12" sports subwoofer: 24.1 lbs (10.93 kg)
  • Water and dust rating IP65
  • Configuration Coaxial
  • Peak power (watts) 12" subwoofer: 1400 watts
  • RMS power rating (watts) 12" subwoofer: 700 watts
  • Sensitivity (1 watt @ 1 metre) 86 dB
  • Magnetic structure 12" subwoofer: 114 oz
  • Frequency response 12" subwoofer: 20 Hz–2 kHz
  • Nominal impedance 4 ohm
  • Recommended amplifier power (watts RMS) 12" subwoofer: 200–1000 watts
  • LED lighting yes, CRGBW (sports style with LED models only)
  • LED supply voltage 10.8–16 VDC (sports style with LED models only)
  • LED load current @14.4 VDC (max) 300 mA (sports style with LED models only)
  • Operating temperature range 32–122 degrees F (0–50 degrees C)
  • Voice coil diameter 12" subwoofer: 4"
  • Cone material CURV® Cone Technology with rubber surround
  • Tweeter type Silk dome
  • Compass-safe distance 12" subwoofer: 181" (460 cm)
  • Speaker connection Flying lead with water-resistant 2-way connector, 5.9" (150 mm)
  • LED connection (sports style with LED models only) Flying lead with water-resistant 6-way connector, 5.9" (150 mm)
  • Warranty 3 years
  • Mounting diameter clearance 12" subwoofer: 12.05" (306 mm)
  • Mounting depth clearance 12" subwoofer: 8.15" (207 mm)
  • Sealed enclosure volume (filled with absorption material) 12" subwoofer: 2.12 cubic ft (60 L)
  • Ported (vented) enclosure volume (lined with absorption material) 12" subwoofer: 8.83 cubic ft (250 L)
  • Port diameter 12" subwoofer: 4" (101.6 mm)
  • Port length 12" subwoofer: 5" (127 mm)

Compatible Devices:

  • Fusion Apollo Marine Amp
  • Fusion MS-RA670 Marine Stereo
  • Fusion Apollo MS-RA770 Marine Stereo
  • Fusion ApollO MS-SRX400 Marine Zone Stereo
  • Fusion Apollo MS-WB670 Marine Hideaway Stereo
  • Fusion Apollo MS-WB675 Marine Hideaway Stereo
  • Fusion MS-BB100 Black Box
  • Fusion MS-RA210 Marine Stereo
  • Fusion MS-RA60 Marine Stereo
  • Fusion RA70 Series Marine Stereos
  • Fusion Signature Series Marine Amp

What's in the Box:

  • One subwoofer
  • 6 Phillips stainless steel mounting screws, 4.8 mm x 50 mm (10 gauge x 2”)
  • Water-resistant cable assembly with 2-pin connector (5.9" (150 mm))
  • Water-resistant cable assembly with 6-pin connector ((5.9" (150 mm)); sports style with LED models only)
  • Documentation
