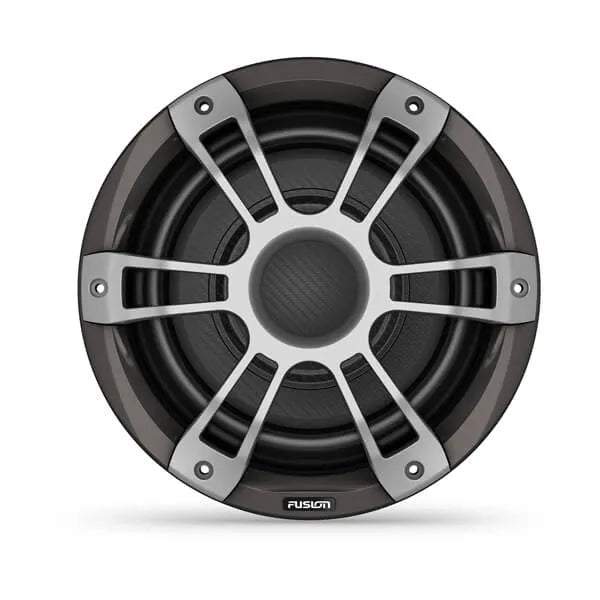

Fusion SG-S103SPG 10" 600-Watt Sports Grey Marine Subwoofer

Made For Life On the Water, Just Like You!

Bring the thunder. The Signature Series 3i subwoofers deliver the drama with premium low frequencies to enhance your listening experience. New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment. Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year. Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year warranty.

This technology provides exceptional self-dampening, high-fidelity, and bass reproduction to give you the most premium onboard listening experience imaginable. Cool white, red, green, blue, warm white. You can choose or mix colors to match the mood of your music. These subwoofers are designed to work optimally with Fusion® stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion-Link™ smart-device app for setup. Available in white or gray, CRGBW LED lights are standard in 12” sizes and optional in 10” sizes. The classically styled perforated metal grille is available in 10” size.

Features:

• Crystal-clear premium sound quality is suited for the marine environment.
• Water-resistant connectors provide simplified installation and superior protection.
• The rigorously tested marinized design has an IP65 rating.
• Available in classic 10” design as well as 10” and 12” sports style design.
• CRGBW LED lights set the scene on your boat
• Built to last season after season, the Signature Series 3i subwoofers include a supported 3-year warranty.

Specifications:

• Physical dimensions (diameter x depth) 10" sports subwoofer: 10.83" x 6.77" (275 x 172 mm)
• Weight 10" sports subwoofer: 11 lbs (4.98 kg)
• Water and dust rating IP65
• Configuration Coaxial
• Peak power (watts) 10" subwoofer: 600 watts
• RMS power rating (watts) 10" subwoofer: 300 watts
• Sensitivity (1 watt @ 1 metre) 86 dB
• Magnetic structure 10" subwoofer: 68 oz
• Frequency response 10" subwoofer: 30 Hz–2 kHz
• Nominal impedance 4 ohm
• Recommended amplifier power (watts RMS) 10" subwoofer: 50–600 watts
• LED lighting yes, CRGBW (sports style with LED models only)
• LED supply voltage 10.8–16 VDC (sports style with LED models only)
• LED load current @14.4 VDC (max) 300 mA (sports style with LED models only)
• Operating temperature range 32–122 degrees F (0–50 degrees C)
• Voice coil diameter 10" subwoofer: 2"
• Cone material CURV® Cone Technology with rubber surround
• Tweeter type Silk dome
• Compass-safe distance 10" subwoofer: 205" (520 cm)
• Speaker connection Flying lead with water-resistant 2-way connector, 5.9" (150 mm)
• LED connection (sports style with LED models only) Flying lead with water-resistant 6-way connector, 5.9" (150 mm)
• Warranty 3 years
• Mounting diameter clearance 10" subwoofer: 8.78" (223 mm)
• Mounting depth clearance 10" subwoofer: 5.24" (133 mm)
• Sealed enclosure volume (filled with absorption material) 10" subwoofer: 0.95 cubic ft (27 L)
• Ported (vented) enclosure volume (lined with absorption material) 10" subwoofer: 1.6 cubic ft (45 L)
• Port diameter 10" subwoofer: 4.1" (104 mm)
• Port length 10" subwoofer: 10.43" (265 mm)

Compatible Devices:

• Fusion Apollo Marine Amp
• Fusion MS-RA670 Marine Stereo
• Fusion Apollo MS-RA770 Marine Stereo
• Fusion ApollO MS-SRX400 Marine Zone Stereo
• Fusion Apollo MS-WB670 Marine Hideaway Stereo
• Fusion Apollo MS-WB675 Marine Hideaway Stereo
• Fusion MS-BB100 Black Box
• Fusion MS-RA210 Marine Stereo
• Fusion MS-RA60 Marine Stereo
• Fusion RA70 Series Marine Stereos
• Fusion Signature Series Marine Amp
