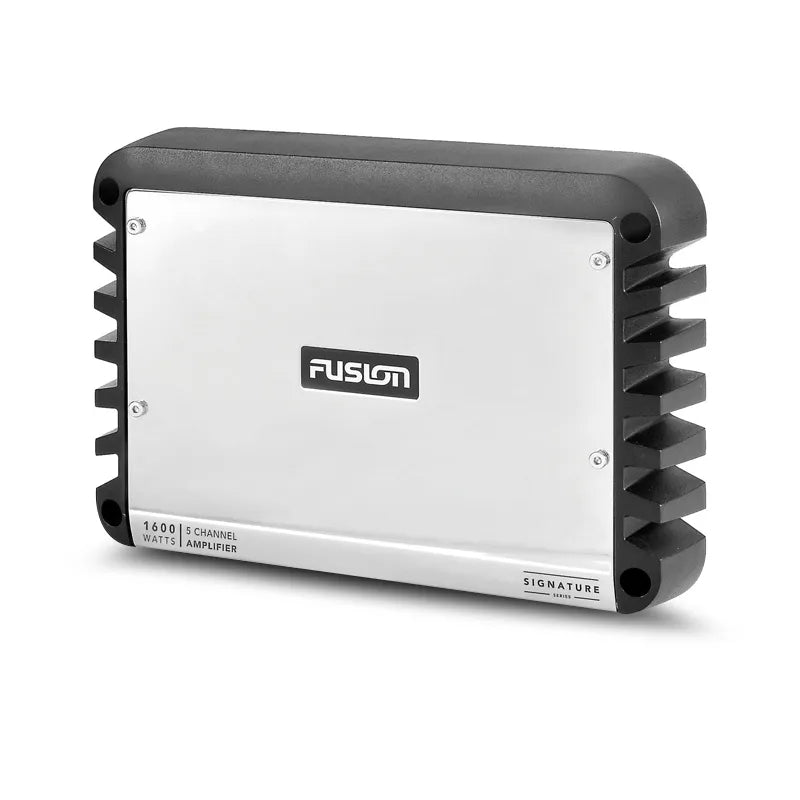

Fusion SG-DA51600 1600W 5 Channel Class D Marine Amplifier

As a True-Marine Product, The Signature Series Marine Amplifiers are Designed and Engineered for the Harsh Marine Environment

Once a product has been subject to rigorous environmental testing and passed our stringent True-Marine approval process, it is awarded the accreditation and recognized with an industry-leading 3 year consumer warranty.

Our most efficient, stunning and powerful amplifier series features Class-D Technology. The highly efficient 1600 Watt amplifier design ensures lower battery drain with a higher output in comparison with Class-AB amplifiers. This delivers increased power to the connected speakers and/or subwoofers, extending your audio entertainment experience to a whole new level.

Features:

• Class-D Amplifier Technology - Enjoy your music for longer and take your audio entertainment experience to a whole new level with amplifiers that are built for high performance. The highly efficient Class-D design draws less current than a standard Class-AB amplifier, providing increased efficiency and power output to your speakers.
• Marine-Ready Design - Extending the life of your amplifiers, the Signature Series are designed specifically for marine use with conformal coated PCBs to provide extra protection from the marine elements.
• Rigid Aluminum Alloy Heat Sink - Molded to form a singular die-cast chassis, the fin layout is calculated with precision to increase the surface area of the heat sink and improve heat dissipation.
• Stainless Mirror Finish - The polished stainless-steel control panel cover conceals and protects all cable connections and settings controls whilst providing an attractive finish to complement any installation.

Specifications:

• Amplifier Class: Class-D
• Subwoofer Frequency Response: 10Hz - 50kHz
• Peak Power: 1600 Watts
• Rated Power (4 Ohms): 80 Watts RMS x 4 + 250 Watts RMS x 1 @ 14.4V - 4 Ohms 1% THD
• Rated Power (2 Ohms): 130 Watts RMS x 4 + 330 Watts RMS x 1 @ 14.4V - 2 Ohms 1% THD
• Rated Power (4 Ohms Bridged): 250 Watts RMS x 2 @ 14.4V - 4 Ohms Bridged 1% THD + 250 Watts RMS x 1 @ 14.4V - 4 Ohms 1% THD
• Gift Box Dimension: (W) 379mm (14-15/16”) (H) 110mm (4-5/16”) (D) 268mm (10-9/16”)
• Height: 50mm <2”>
• Length: 300mm <11-13/16”>
• Depth: 210mm <8-1/4”>
