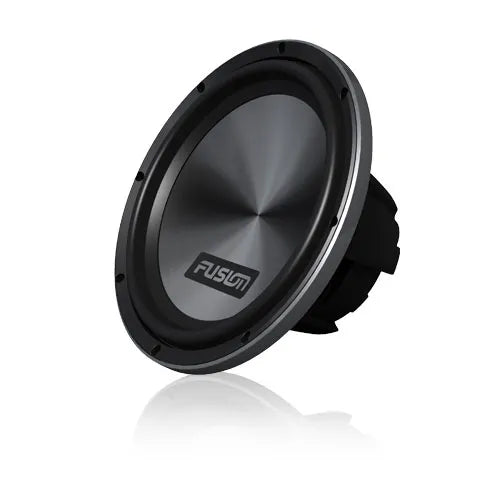

Fusion PF-SW100D4 subwoofer with pressed paper cone, angled view
Fusion PF-SW100D4 subwoofer with pressed paper cone, angled view
Click to open expanded view
FUSION logo

Fusion PF-SW100D4 10" Dual 4 Ohm Voice Coil Subwoofer

SKU: PFSW100D4
4.0 (1)
Price
$79
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Fusion PF-SW100D4 subwoofer with pressed paper cone, angled view

Fusion PF-SW100D4 10" Dual 4 Ohm Voice Coil Subwoofer

$79

Product features

Small door speakers simply cannot reproduce the bottom octave of a bass line, however hard you push the head unit.

The PF-SW100D4 is a 10 inch pressed paper cone sub rated at 350W and 1400W peak, with dual 4 ohm voice coils. Fusion quotes 38 Hz to 1.5 kHz, a 145mm mounting depth and a 230mm mounting diameter, so you can size the box before ordering.

PF-SW100D4 key points

  • 10 inch pressed paper cone
  • 350W rated, 1400W peak
  • Two 4 ohm voice coils
  • 87 dB sensitivity

Specifications

Rated power 350W
Peak power 1400W
Frequency response 38 Hz to 1.5 kHz
Sensitivity 87 dB
Voice coil impedance 2 x 4 ohm
Mounting depth 145mm
Mounting diameter 230mm

Fitment and compatibility

This driver needs an enclosure and an amplifier. Allow 145mm of depth and a 230mm hole in the baffle.

What is in the box

Fusion does not publish a box list for this subwoofer. Call us and we will confirm the packed items.

Install notes

Match the voice coil wiring to your amplifier load before you power it up. South Nowra on (02) 4423 5254 can supply a box and amp to suit.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Frequently asked questions

What power is the Fusion PF-SW100D4 rated for?

350W rated and 1400W peak.

What hole size does it need?

A 230mm mounting diameter.

Can it be wired to 2 ohm?

With dual 4 ohm coils it can be wired in parallel for 2 ohm or in series for 8 ohm.

Will it fit in my boot?

Most boots take a 10 inch box. Tell us the car and we will check the space.
