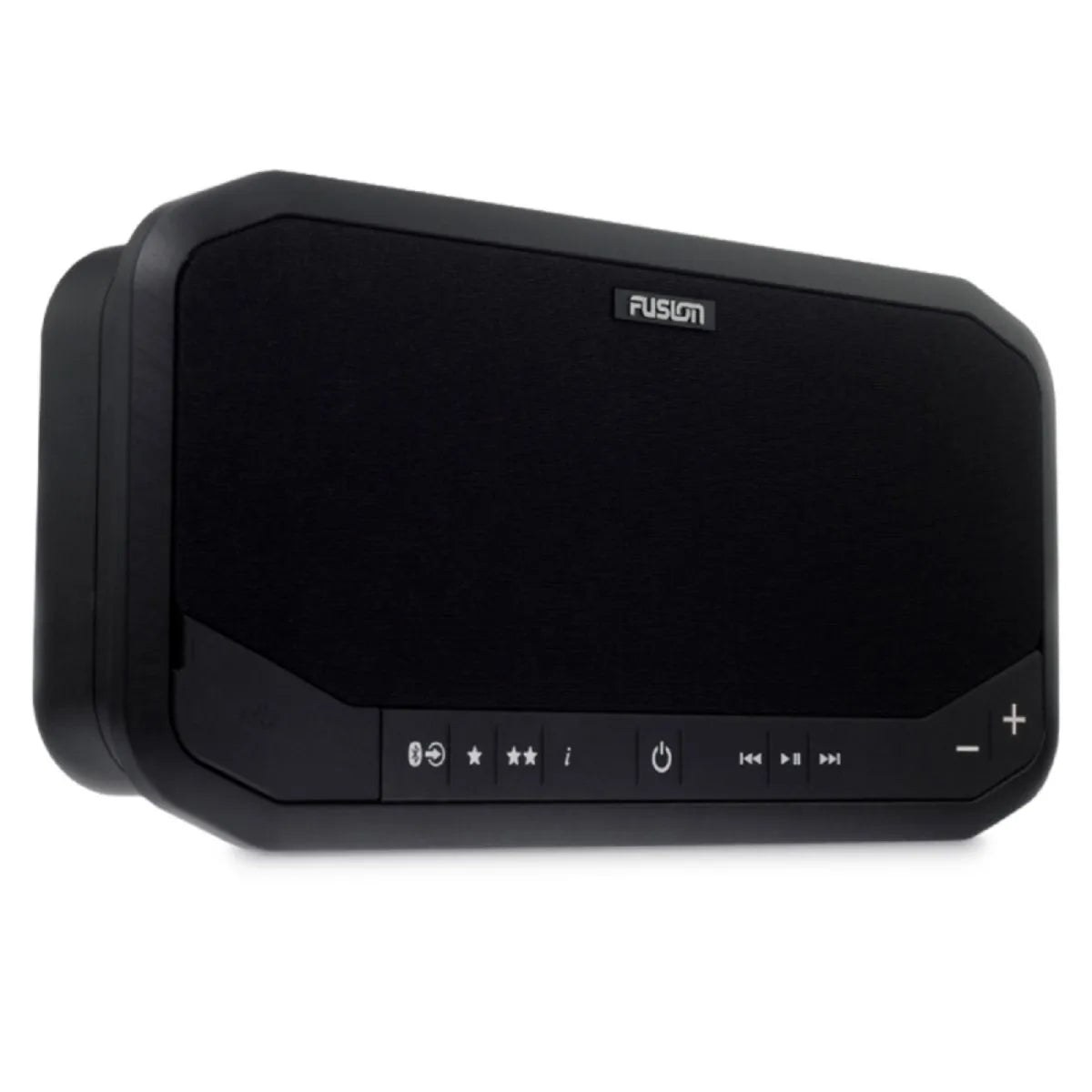

Fusion PA-A302BOD Outdoor Panel Stereo

Plug-and-Play, All-in-One Solution

The Panel-Stereo from Fusion allows you to enjoy quality audio onboard your boat from the convenience of a single unit – designed to save time and money with a quick and simple installation.

IP65 Ingress Protection

Designed and engineered for the harsh marine environment, the Panel-Stereo has an IP65 rating for protection against dust and water ingress. The Panel-Stereo Outdoor comes with a high-grade plastic grille and UV-resistant design.

Quick And Simple To Install

The Panel-Stereo operates on 12-volt DC power, an earth connection, AM/FM antenna and a single cutout at most is required at installation – it is a true plug-and-play, all-in-one audio entertainment solution.

Fusion Digital Signal Processing

A technically superior listening experience made simple, Fusion DSP optimises the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels.

Perfectly Tuned Enclosure

The Panel-Stereo is brilliantly designed – combining built-in amplification, stereo source selection, two 3-inch speakers, and a large surface passive bass radiator to deliver premium, optimised audio onboard from a single unit

Freedom Of Choice To Listen To What You Want

Take advantage of the different source options available, including Bluetooth® technology, AM/FM radio, AUX, and USB connections.

Surface Mounting Spacer

You can install the panel stereo with a conventional flush mount or premium flat finish. Alternatively use the accessory mounting spacer to surface mount the Panel-Stereo, with no mounting cut-out required.

Features:

• Preconfigured Digital Signal Processing (DSP) technology for a superior listening experience.
• Hi-Fi audio reproduction through preconfigured DSP.
• Built-in Class-D amplifier delivers higher efficiency and greater output.
• Optimally tuned, sealed enclosure with two 3-inch speakers and a passive bass radiator.
• Multiple mounting options are available, including flush, flat, and surface mounting.
• Control your music from a compatible smart device or Garmin watch.

Specifications:

• Dimension 13.54" X 6.1" X 1.97" (344 X 155 X 50 Mm)
• Weight: 2.54 Lbs (1.15 Kg)
• Water Rating Ip65 (When Properly Installed)
• Operating Temperature 32° To 122° F (0° To 50° C)
• Current (Max) 10 A
• Bluetooth® Wireless Range Up To 30 Ft (10 Metres)
• Ant® Wireless Range Up To 10 Ft (3 Metres)
• Wireless Frequencies/protocols Bluetooth®: 2.4 Ghz @ +12 Dbm Nominal
• Ant®: 2.4 Ghz @ +7 Dbm Nominal
• Amplifier Class-d
• Power Input 10.8 - 16 Vdc
• Compass Safe Distance 7.6" (229 Mm)
• Peak Power 140 Watts
• Rated Power Output (2 Ohm) 43 Watts Rms X 2 @ 14.4 V Input < 1% Thd
• Built-in Digital Signal Processing (Dsp) Yes (Preconfigured)
• Control: Yes (Smart Device And Garmin Watch)
• Multi-language Interface Chinese (Mandarin), Dutch, English, French, German, Italian, Japanese, Spanish
• Software Updates USB
• Supported Sources: Am, Fm, Bluetooth®, USB Audio, Iphone®, Ipod®, Aux X2, AOA
• Auxiliary Inputs (RCA) 2
• USB Ports 1
• Am/fm Ports (Motorola Antenna Connector) 1
• Line Out 1 RCA Output (Aux)

Accessories:

• Antennas & Sensors
• Marine Apps
• Cables & Charges
• Mounts
• Remotes

Compatible Devices:

• Quatix 6 Titanium

What's in the Box:

• Fusion® Panel-Stereo
• Stereo trim
• Six 6-gauge, self-tapping stainless-steel screws
• Power wiring harness
• Documentation
