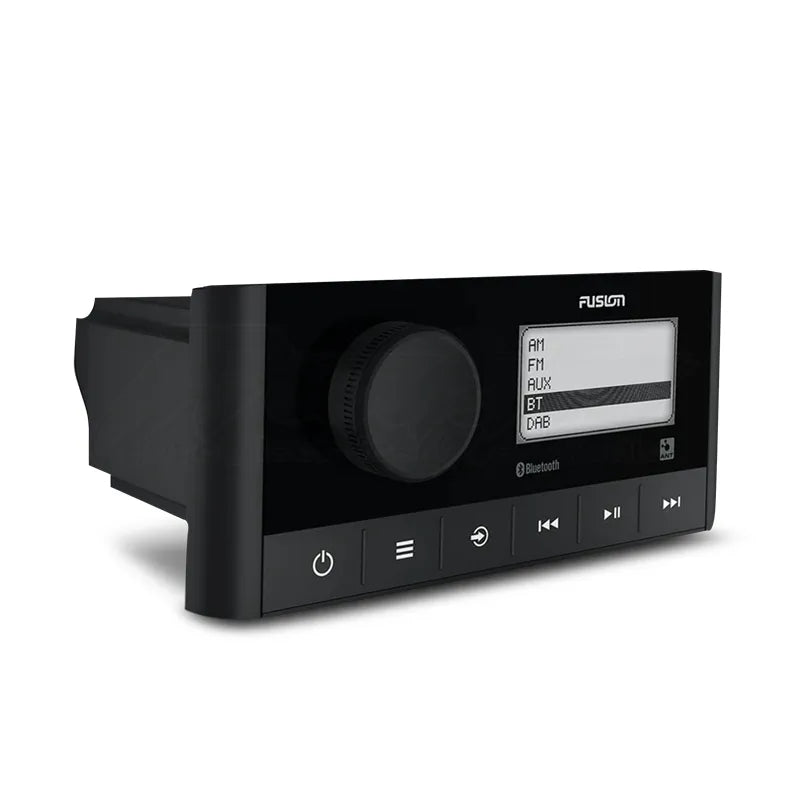

Fusion MS-RA60 Marine Stereo With Wireless Connectivity

Modern, Compact & The Most Economical Marine Stereo from Fusion Yet!

Fusion® MS-RA60 Marine Stereo
The MS-RA60 is our most economical marine stereo yet, featuring modern aesthetics, Multi-Zone™ technology in two zones and advanced connectivity options in a compact form factor. Designed for quality audio entertainment in the harsh marine environment, a perimeter bonded, anti-fogging LCD is integrated into the IPX6 and IPX7 water resistant black front face – making the MS-RA60 an attractive addition to your helm.

Multi-Zone Technology
Up to two independent audio zones are available for a customized listening experience across your boat, each with advanced localized audio options, including volume limits, zone naming, tone control, balance and more.

IPX6 & IPX7 Ingress Protection
The front panel of the MS-RA60 meets international IPX6 and IPX7 Water Ingress Protection standards, providing assurance that your product will perform and last in the harsh marine/outdoor environment when installed correctly (please refer to the installation instructions for specific details).

Retrofittable
The MS-RA60 is designed to fit in the MS-RA55 mounting profile, eliminating the need to alter your existing cutout, reducing complexity when upgrading your stereo system.

Class-D Amplifier Design
The built-in Class-D amplifier provides increased power while drawing less current than a standard Class-AB amplifier. The amplifier design delivers increased efficiency and power output, letting you enjoy your music at higher volumes for longer.

Wireless Software Updates
Over-the-air software updates are now available from your compatible device via BLUETOOTH® with the free Fusion-Link™ app, making it simple to keep the MS-RA60 up to date.

Fusion-Link Control (Wireless) via Bluetooth & ANT®
Download the free Fusion-Link remote control app for BLUETOOTH from the Apple App Store® or Google Play™ and enjoy the freedom of wireless control from your compatible device. Download the free Fusion-Link Lite app from the Connect IQ™ app to enable wireless control via ANT technology from your compatible Garmin watch.

2.3" Bonded Monochrome LCD
The monochrome LCD is perimeter bonded to improve durability and protection against condensation and fogging and is optimized for daylight viewing.

Modern Design Aesthetics
The monochrome LCD is incorporated into a black front face for ease of visibility and enhanced styling. The black front face blends in seamlessly with your dash, complementing other electronics and MFDs for a tidy, uniform and elegant installation.

Built-In DAB Module
The built-in DAB module supports the latest DAB and DAB+ broadcasts, allowing you to enjoy high quality digital radio streaming wherever DAB and DAB+ is supported (Europe and Australia only; does not support traffic and weather).

Specifications:

• Physical Dimensions (WxHxD): 6.18” x 2.68” x 4.06” (156.9 x 68 x 103.2 mm)
• Weight: 11.1oz (316g)
• Water Rating: IPX6 & IPX7 (Front Panel Only, when Properly Installed)
• Power Input: 10.8-16 VDC
• Operating Temperature Range: 32° to 122° F (0° to 50° C)
• Current (Max.): 15A
• BLUETOOTH® Wireless Range: Up to 30 ft (10 m)
• ANT® Wireless Range: Up to 10 ft (3 m)
• Wireless Frequencies/Protocols: Bluetooth 2.4 GHz @ +12 dBm Nominal / ANT 2.4 GHz @ +7 dBm Nominal
• Compass-Safe Distance: 5.9” (150mm)
• Display: 2.3” Perimeter Bonded Monochrome Dot Matrix LCD
• Built-In Amplifier: Class-D (Minimum 4 Ohm Impedance)
• Peak Power: 180W
• Rated Power Output (4 Ohm): 22W RMS x 4 @ 14.4 V Input, 4 Ohm, 10% THD
• Fusion-Link Control: Yes (With Compatible Apple® & Android Devices)
• Fusion-Link Lite Control: Yes (With Compatible Garmin Watch)
• Multi-Zone Technology: 2 Zones
• Bluetooth Wireless Technology: Yes
• ANT Wireless Technology: Yes
• DAB+: Yes (DAB Tuner Built-In)
• Multi-Language Interface: Dutch / English / French / German / Italian / Spanish
• Software Updates: Over-The-Air Software Updates via Bluetooth Wireless Technology Using the Fusion-Link App
• Warranty: 1 year
• Sources: AM / FM / Bluetooth / AUX x1 / DAB+ (Available in Europe & Australia Only)
• Auxiliary Input: One RCA Input (AUX)
• AM / FM Radio: One Motorola Antenna Connector Port
• Speaker: 4 x Speaker Connections (2 Amplified Zones)
• RCA Pre-Out (Left, Right & Subwoofer) 1 zone (Requires External Amplification)
• Line Out: Zone 1: L + R (Requires External Amplification)
• Subwoofer Out: Zone 1 (Requires External Amplification)
