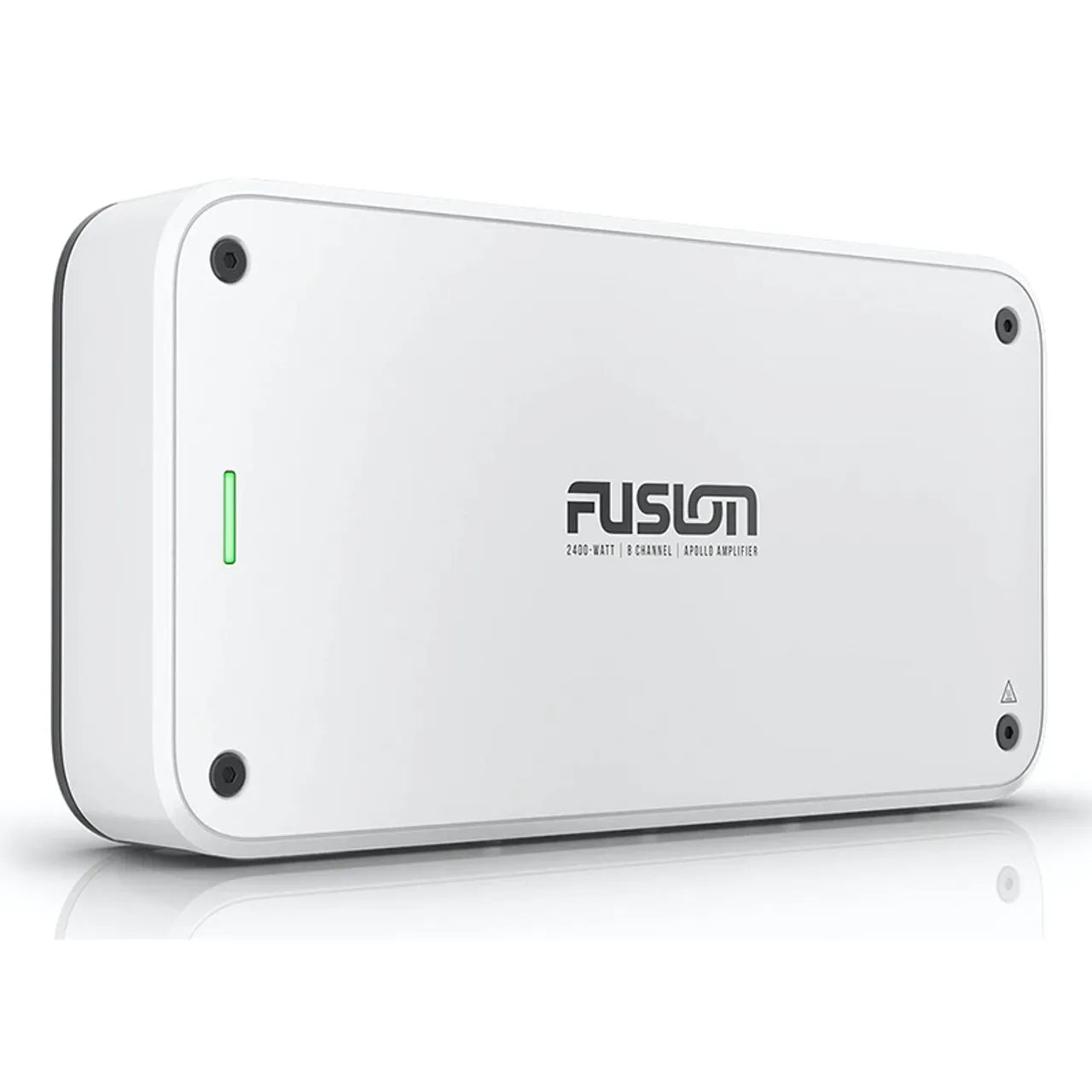

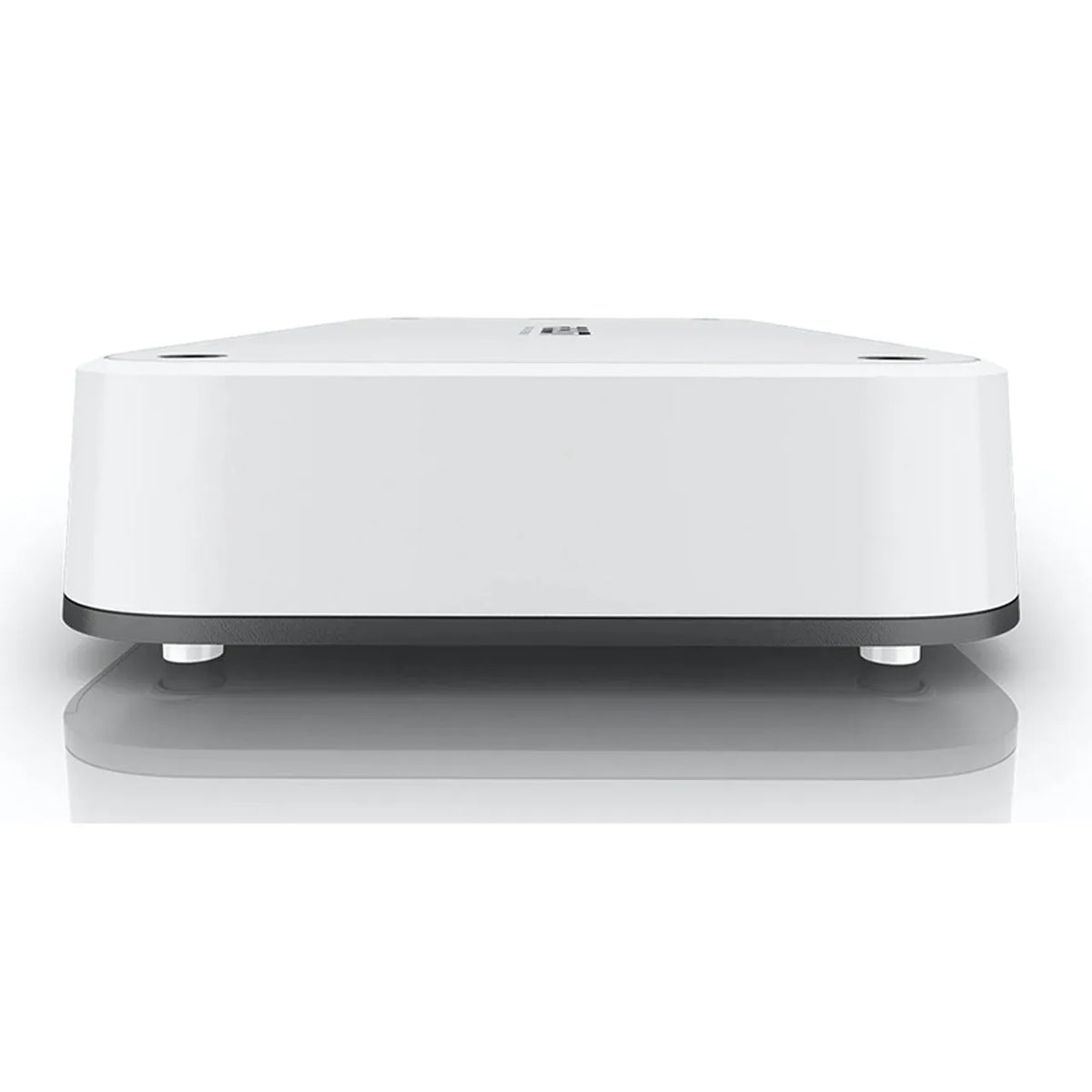

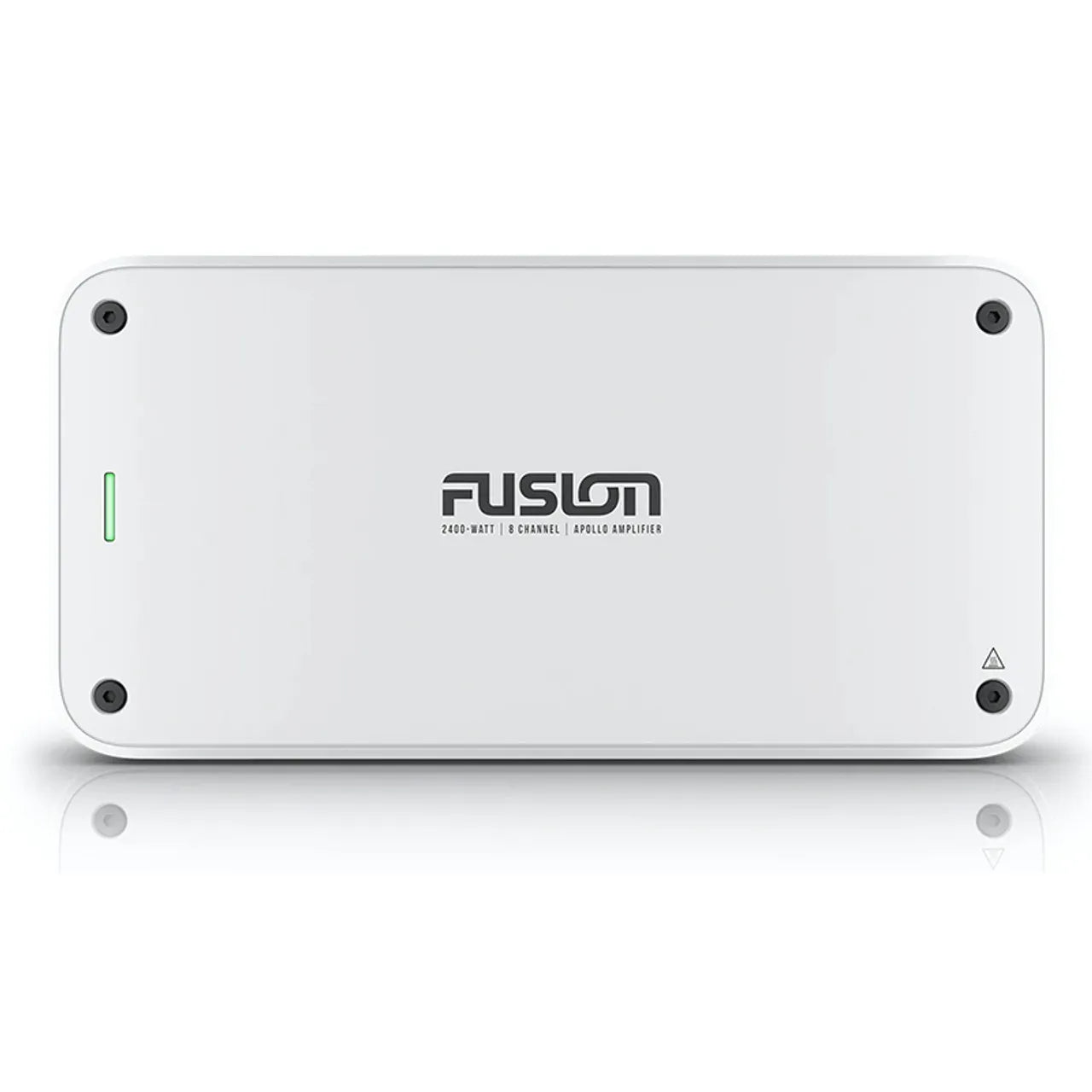

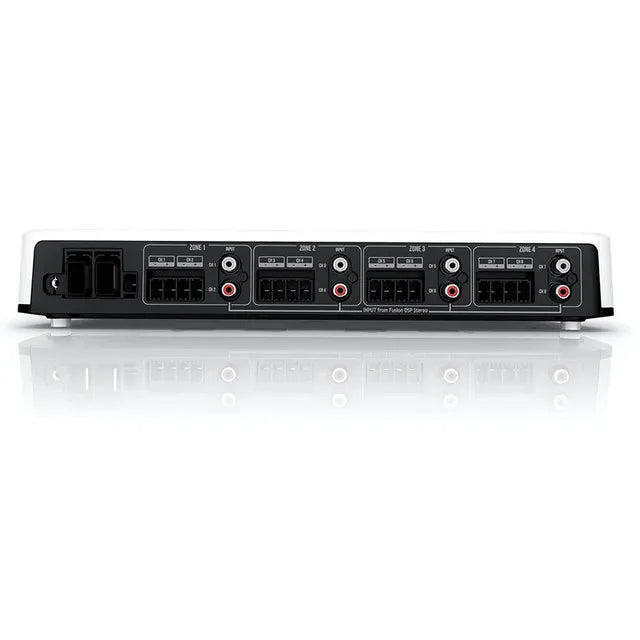

Fusion MS-AP82400 150-Watt RMS Apollo 8 Channel Marine Amplifier

It’s The Difference Between Hearing The Music And Feeling It

These efficient, easy-to-install amplifiers work with your compatible Fusion stereo system1 and let you choose from monoblock, multichannel, and zone amplifier options.

The Apollo amplifiers are designed to produce impressive power with less drain on your battery. The monoblock produces 650-watt RMS and the 4/6/8 channel amplifiers produce 150-watt RMS per channel. These amplifiers use the Easy Tune feature2, which automatically regulates audio settings. So, you can get the best quality sound without making manual adjustments. Some amplifiers distort audio when they add power. Ours are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes. Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts as well as temperature. Easily install the amplifiers on board with the included mounting brackets. The ignition-protected design helps prevent potential damage from overheating. The amplifier’s circuit board has been specially coated to provide extra protection from the marine elements. You can connect up to two speakers per channel, increasing setup options. The amplifiers are designed to last season after season. They have been tested for a high level of protection against salt fog, temperature, vibration, and UV. Add extra power to your system with this 2000-watt (650-watt RMS) monoblock amplifier that’s specifically designed to power a subwoofer. This 4-channel amplifier with 150-watt RMS per channel can power up to four pairs of speakers or two pairs of speakers and one subwoofer. It includes high-power mode adapters for simple bridging to increase power. This 6-channel amplifier with 150-watt RMS per channel can power up to six pairs of speakers or four pairs of speakers and one subwoofer. It includes high-power mode adapters for simple bridging to increase power. This 8-channel amplifier with 150-watt RMS per channel can power up to eight pairs of speakers or four pairs of speakers and two subwoofers. It includes high-power mode adapters for simple bridging to increase power. The compact zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. It’s compatible with 12- and 24-volt electrical systems.

Features:

• Keep the music going for longer without draining your battery as quickly
• No more manual adjustments to your audio settings. The Easy Tune feature does it for you.
• A glance at the LED indicators lets you identify if the amplifiers have a short or if they’re overheating.
• These amps have less distortion and noise, so you enjoy quality audio.
• Mounting brackets are included for simple installation.
• Don’t worry about potential overheating damage with our ignition protection design.

Specifications:

• Physical dimensions without bracket (LxWxH) 8 Channel: 14.13″ x 7.06″ x 1.75″ (359 x 180 x 45 mm)
• Physical dimensions with bracket (LxWxH) 8 Channel: 14.13″ x 7.06″ x 2.13″ (359 x 180 x 50 mm)
• Weight 8 Channel: 6.94 lb (3.15 kg)
• Water rating Monoblock/4/6/8 Channel: IPX2
• Amplifier class Class-D
• CEA-2006 power rating 8 Channel: 150 watt RMS x 8 @ 14.4 V input - 4 ohm < 1% THD
• Total rated power output - 8 Channel: 290 watt RMS x 8 @ 14.4 V input - 2 ohm < 1% THD
• Total rated power output - 8 Channel: 580 watt RMS x 4 @ 14.4 V input - 4 ohm Bridged < 1% THD
• Peak power (Watts) 8 Channel: 2400 watts
• Input sensitivity 4/6/8 Channel: 1.6 V RMS
• Input impedance Monoblock/4/6/8 Channel: 22k ohm
• Operating voltage Monoblock/4/6/8 Channel: 10.8 V - 16 V DC
• Current draw, in standby/off using AMPLIFIER ON wire Monoblock/4/6/8 Channel: < 5 mA @ 14.4 V input Zone: < 1 mA @ 14.4 V input
• Current draw, on, no audio 8 Channel: < 1.60 A @ 14.4 V input
• Power-cable fuse or circuit breaker rating (not included) 40 A
• Ignition Safety Protected (SAE J1171) Yes
• Protection circuits Reverse voltage
• Input under/over voltage
• Over Temperature
• Output short circuit
• Operating temperature range 0° to 50° C
• Warranty 3 years

Accessories:

• Cables & Chargers
• Connectors
• Mounts

Compatible Devices:

• Apollo RA670
• Apollo RA770
• Apollo WB670
• Fusion EL Series Marine Speakers
• Fusion FM Series Marine Speakers
• Fusion FM Series Marine Subwoofers
• Fusion RA210 Marine Stereo
• Fusion Signature Series 3 Marine Speakers
• Fusion Signature Series 3 Marine Subwoofers
• Fusion Signature Series 3 Marine Wake Tower Speakers
• Fusion XS Series Marine Speakers
• Fusion XS Series Marine Subwoofers

What's in the Box:

• One Apollo monoblock amplifier
• One mounting bracket
• One power connector
• One speaker connector
• Four 8-gauge, flat-head self-tapping screws
• Four 8-gauge, pan-head self-tapping screws (for mounting bracket)
• Four screw covers
• Mounting template
• Installation instructions
• Important safety and product information (ISPI)
