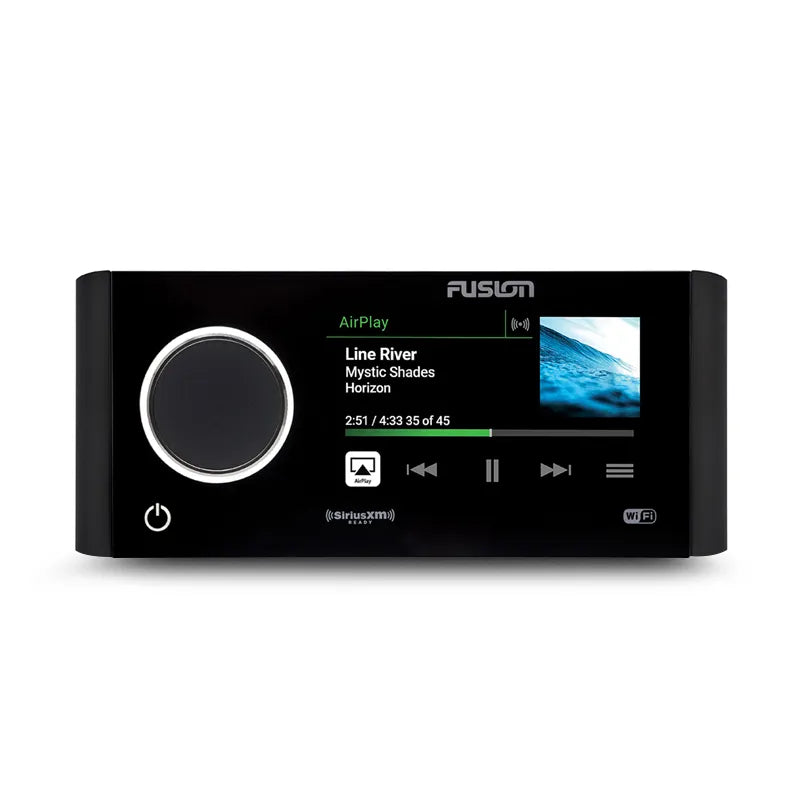

Fusion MS-RA770 Apollo Marine Entertainment System with Built-In Wi-Fi

Fusion Apollo Marine Entertainment System: Crafted and Engineered by Apollo – The God of Music

Designed And Engineered To True-marine™ Standards
Built on the True-Marine design philosophy from Fusion®, the Apollo RA770 stereo has an IPX6- and IPX7-rated water-resistant front panel and has been tested to a high level of protection against salt fog, temperature, vibration, and UV.

Modern Design And Aesthetics
Providing uniformity across the helm, the brilliantly designed black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy, uniform, and elegant installation.

Fusion MS-RA770 Features:

• Custom Audio Profiles For Each Zone On Your Boat To Deliver Superior Quality Audio.
• Audio Streaming With Wi-fi Technology Provides High-quality Audio With A Faster Data Transfer Rate1.
• Experience Seamless High-quality Audio Streaming From Your Music App Via The Airplay 2 Feature1 From Apple®.
• Enjoy The Freedom Of Musical Choice With Partybus™-network Technology1.
• This 4.3-inch Touchscreen Includes Play, Pause, And Skip Functions Using Touch Display Commands.
• Control Your Music From A Compatible Multifunction Display (Mfd), Smart Device, Or Garmin Watch.

Fusion MS-RA770 Specifications:

GENERAL

• Stereo Dimensions (H X W X D): 82 X 192 X 119.4 MM
• Weight 750G
• Water Rating Ipx6 And Ipx7 (Front Panel Only, When Properly Installed)
• Power Input10.8-16 Vdc
• Operating Temperature Range 0­° To 50° C
• Current (Max.)15 A
• NMEA 2000 Len1 (50 Ma)
• Bluetooth Wireless Range Up To 10 Metres
• Ant Wireless Range Up To 3 Metres
• Wireless Frequencies/protocols Wi-fi 2.4 GHZ @ +15 DDM Nominal
• Bluetooth 2.4 GHZ @ +10 DBM Nominal
• Ant 2.4 GHZ @ +4 DBM Nominal
• Compass-safe Distance 150 MM

STEREO

• Display 4.3-inch Capacitive Touch Glass Colour LCD
• Built-in Amplifier Class-d (2 Ohm Stereo-stable)
• Peak Power 280 W
• Rated Power Output (2 Ohm) 43 W Rms X 4 @ 14.4 V Input < 10% Thd
• Rated Power Output (4 Ohm) 26 W Rms X 4 @ 14.4 V Input < 10% Thd
• Built-in Digital Signal Processing Yes (With Preconfigured Dsp Profiles)
• Partybus™-network Capabilities Yes (Wired Or Wireless)
• Fusion-link™ Control Yes (With MFD, Smartphone And Garmin Watch)
• Multi-zone™ Technology 4 Zones
• Built-in Wi-fi Yes
• Bluetooth Wireless Technology Yes
• Ant Wireless Technology Yes
• Siriusxm-ready Yes (Requires Siriusxm Connect Vehicle Tuner)
• Dab+ Ready Yes (Requires Dab100a Antenna Module)
• Optical Audio Input Yes
• NRX Remote Compatibility Yes
• Multi-language InterfaceBulgarian / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Italian / Japanese / Korean / Norwegian / Polish / Portuguese (Br) / Portuguese (Pt) / Slovenian / Spanish / Swedish / Thai / Turkish
• Software Updates Over-the-air Software Updates Via The Fusion-link App, USB
• Warranty 3 Years

SOURCES

• Sources AM/FM/Bluetooth/Apple Airplay 2/Digital Optical Input/USB Audio/Iphone/Ipod /AUX X2/UPNP/MTP/Siriusxm-ready (USA Only, Requires Optional Siriusxm Connect Vehicle Tuner) / Dab+ Ready (Available In Europe And Australia Only)

CONNECTIVITY

• Auxiliary Input Two RCA Inputs (Aux1, Aux2)
• Optical Audio Input One Digital Optical Input (SPDIF) Port
• Ethernet One Ethernet Port
• NMEA 2000 One NMEA 2000 Port
• USB 2.0 One USB 2.0 Port
• Siriusxm Satellite Radio One Siriusxm Port (Requires Siriusxm Connect Vehicle Tuner; Does Not Support Traffic And Weather)
• AM/FM Radio One Motorola Antenna Connector Port
• Speaker 4 X Speaker Connections (2 Zone Amplified)
• RCA Pre-out (Left, Right And Subwoofer) 4 Zones (Requires External Amplification)
• Line Out 4 (1 X L + R Per Zone, Requires External Amplification)
• Subwoofer Out 1 X Mono Output (Requires External Amplification)

What's in the Box:

• Mounting Gasket
• Four 8-gauge, Self-tapping Screws
• Two Screw Covers
• Power And Speaker Wiring Harness
• Auxiliary-in, Line-out, And Subwoofer-out Wiring Harnesses
• 2 Metre NMEA 2000® Drop Cable
• Dust Cover
• Documentation
