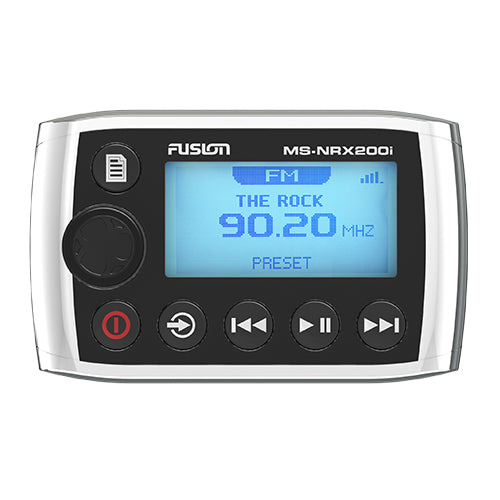

Fusion MS-NRX200i NMEA 2000 Marine Wired Remote

NMEA 2000 Marine Wired Remote

Introducing the MS-NRX200i NMEA 2000 Certified Wired Remote Control, which is out of the box NMEA 2000 ready and includes all necessary cables to connect to an existing network.

Install a MS-NRX200i Wired Remote in each of the independent audio zones of your vessel, for localised zone volume level and global source control. Control each audio zone independently from multiple remotes connected to your compatible FUSION marine stereo, or manage the entire entertainment experience from a single remote control.

The Large 2.6" Daylight viewable LCD will display multiple lines of text, for easy navigation of your iPod music library and full track, artist and song duration display.

The fully sealed enclosure of the MS-NRX200i is rated IPx5 water resistant, ideal for installation around the boat or on the deck.

The MS-NRX200i comes complete with all the necessary cabling for quick and simple integration to an existing NMEA 2000 network, there is no need to run additional cabling to the FUSION marine stereo. Simply connect the marine stereo and the MS-NRX200i to the same backbone for instant communication.

The MS-NRX200i is also compatible with all FUSION-Link partnerd Multi-Function-Displays connected to a supported FUSION marine stereo.

FUNCTIONS AS A NMEA 2000® REPEATER
The MS-NRX200i wired remote can communicate with other NMEA 2000 devices connected to the same NMEA 2000 network, to display information like depth, speed and wind direction.
The NRX200i remote control can be configured to display NMEA2000 network data, the following options are available:

• Wind Direction
• Wind Speed
• Depth
• Speed over Ground
• Speed through Water
• Heading
• Position
• Water Temperature
• Atmospheric Pressure
• ETA

Product Specifications

• Compatible With MS-UD750, MS-AV750, MS-RA70N, MS-BB100, MS-UD650, MS-AV650, MS-BB300 and MS-RA205. Note: MS-BB100 and MS-RA70N require an existing powered NMEA 2000 network.
• NMEA 2000 LEN:3 (150mA)
• Operating Voltage 10.8 - 16Vdc
• Current Consumption @12V 110mA
• Operating Temperature From 0 to 50°C (from 32 to 122°F)
• Storage Temperature From -20 to 70°C (from -4 to 158°F)

What's In the Box

• Included NMEA 2000 Cabling
• 1 x NMEA 2000 T-Connector
• 1 x In-line Terminator
• 1 x Female Terminator
• 1 x Male Terminator
• 1 x 6Mtr NMEA 2000 Extension Cable
  Note: the MS-NRX200i requires an additional cable for connection to a MS-IP700, MS-AV700 and 1st Gen MS-RA205 marine stereos. Two cables are available (CAB000860 For NMEA 2000 networks and CAB000859 for FUSION audio only networks).
