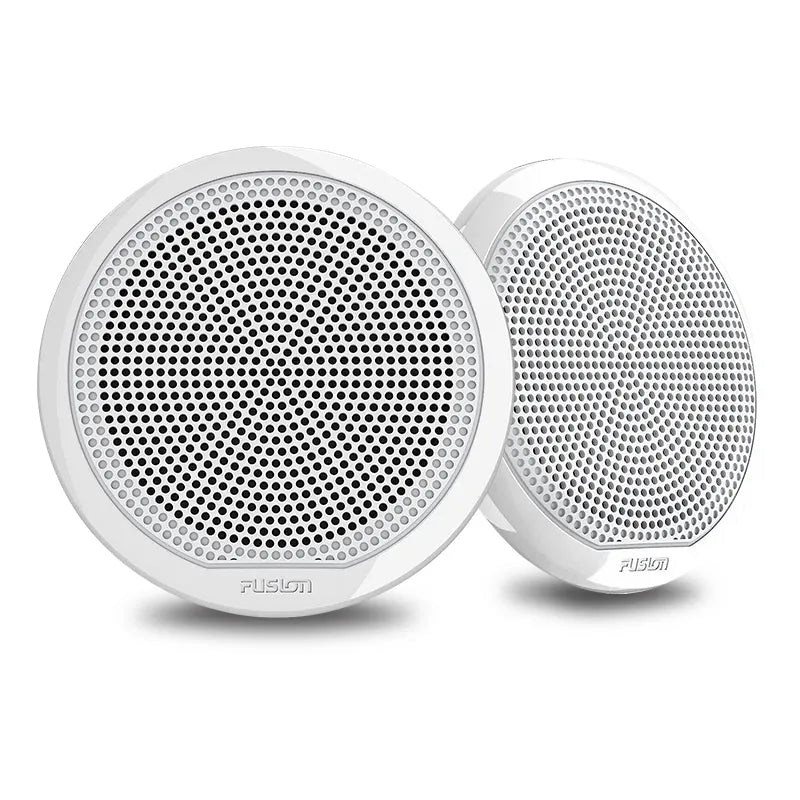

Fusion EL Series white marine speakers, front and angled view
Fusion EL Series white marine speakers, front and angled view
Click to open expanded view
FUSION logo

Fusion EL-F653W 6.5 Inch Shallow Mount Marine Speakers Classic White

SKU: ELF653W
Price
$153.06
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Fusion EL Series white marine speakers, front and angled view

Fusion EL-F653W 6.5 Inch Shallow Mount Marine Speakers Classic White

$153.06

Product features

Boats rarely have the depth behind a panel for a speaker with a big magnet. The Fusion EL-F653W is a shallow mount 6.5 inch marine speaker needing just 1.69 inches (43mm) behind the cut out.

It is IP65 rated against water and dust, with UV resistant grilles and a classic white finish without lighting.

Problems it solves

  • Speakers that fail after a season of spray. Sealed water resistant construction meets IP65.
  • Grilles that yellow in the sun. The grilles are UV resistant and meet ASTM salt fog and UV standards.
  • A stereo too weak to drive marine speakers. 88dB sensitivity runs well from a regular marine stereo.

EL-F653W specifications

  • Size: 6.5 inch
  • Power: 20W RMS, 80W peak
  • Impedance: 4 ohm
  • Frequency response: 45Hz to 16kHz
  • Sensitivity: 88dB
  • Cut out: 5.12 inch (130mm)
  • Mounting depth: 1.69 inch (43mm)
  • Rating: IP65
  • Finish: classic white, non illuminated
  • Sold as: pair

Fitment and compatibility

Deck, cabin or side panel locations with at least 43mm of depth.

What is in the box

  • 1 pair of EL-F653W speakers
  • 12 Phillips stainless steel mounting screws (4.2 x 25.4mm)
  • 2 x 6m speaker cables
  • Documentation

Install notes

Cut a 130mm hole and check nothing sits within 43mm behind it.

Seal the cable entry so water cannot track into the hull.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

EL-F653W FAQs

How deep do the EL-F653W need to be mounted?

1.69 inches, which is 43mm.

Do the Fusion EL speakers light up?

No, this is the non illuminated white model.

Can I run the EL-F653W off a basic boat stereo?

Yes, they are made to work from a regular marine head unit.
