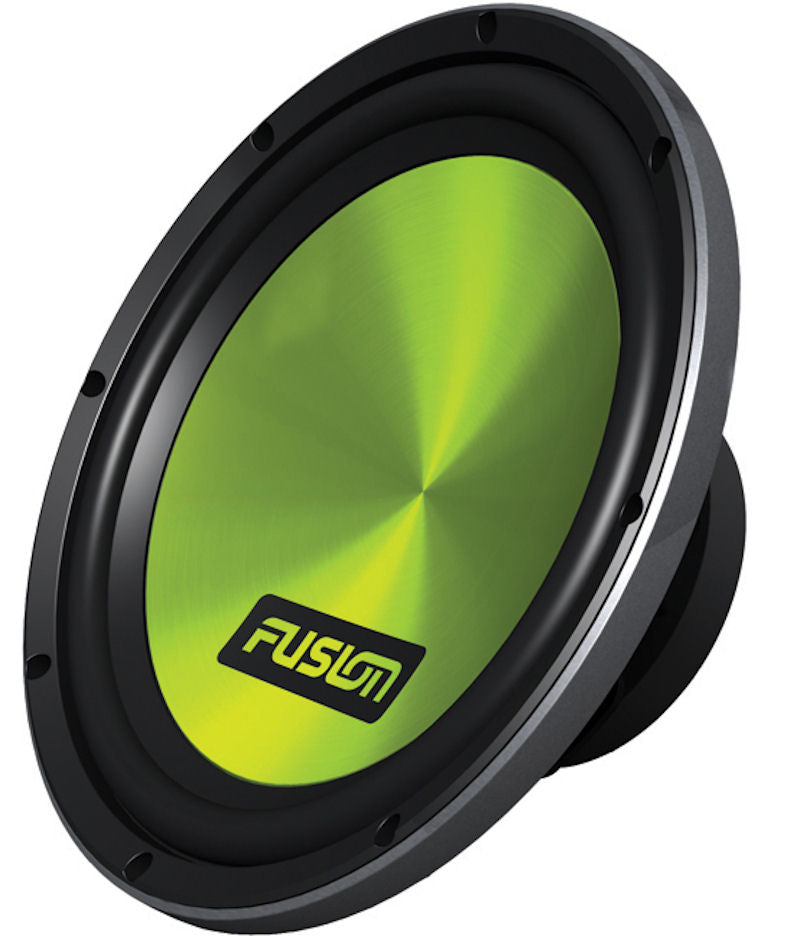

Fusion CS-SW120 12" 800W Car Subwoofer

SKU: CSSW120

No Longer Available. Please contact us for recommendations or alternatives. (02) 4257 2636

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Items we order in from a supplier usually dispatch within 3 to 7 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail

Product features

Punches Well Above Their Weight

FUSION CS Subwoofers offer performance that “Punches well above their weight”. Incorporating technology found in higher ranged products and the latest cone designs, combined with highly efficient motor assemblies result in bass that has to be heard to be believed.

Specifications

  • Peak Power (Watts): 800
  • Rated Power (Watts): 200
  • Frequency Response: 33Hz - 1.2kHz
  • Sensitivity (dB): 87
  • Cone Material: Pressed Paper

Thiele Small Parameters

  • D.C. Coil Resistance (Re): 3.900 Ohm
  • Cone Area (Sd) (cm²): 356.000
  • Compliance (Cms) (M/N): 271.431u M/N
  • Force Factor (Bl) (TM): 12.703
  • Mechanical Q (Qms): 7.376
  • Electrical Q (Qes): 0.493
  • Total Loudspeaker Q (Qts): 0.462
  • Voice Coil Impedance: 4 Ohm

Mounting Dimensions

  • Mounting Depth: 120mm <4-23/32”>
  • Mounting Diameter: 228mm <9">
  • Outside Diameter: 269mm <10-19/32">
