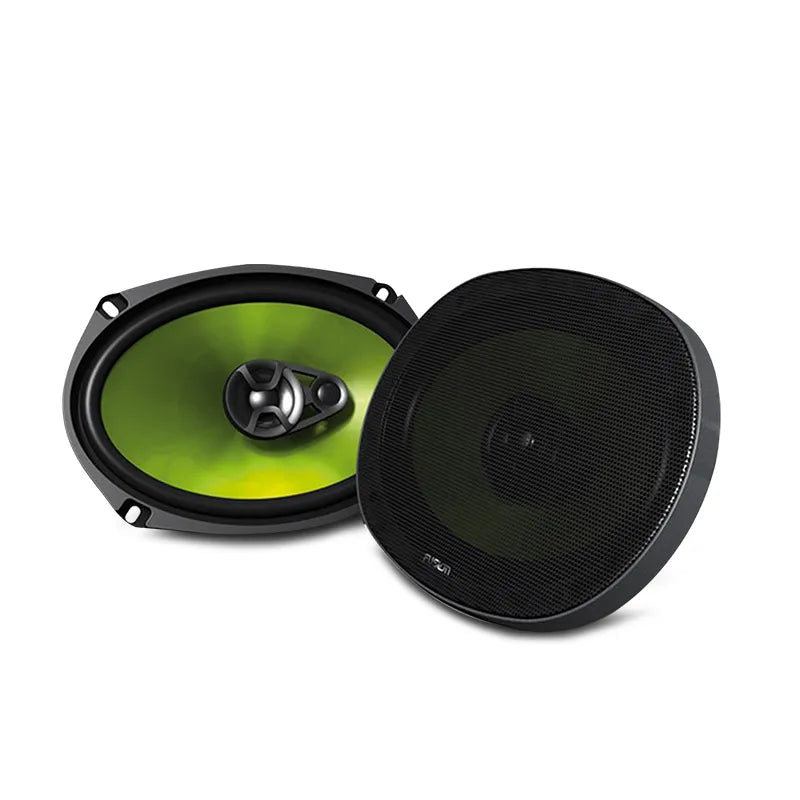

Fusion CS-FR6930 6 X 9” 3 Way Full Range Speakers

3 Way Full Range Speakers

Massive performance in a small package is the hallmark of the fusion cs speaker range. Industry-leading technology, combined with state of the art design ensures a “no compromise” speaker range that can be installed in most vehicle situations.

Specifications:

• Mounting Depth 71.5mm (2-14/16”)
• Mounting Diameter 156mm (6-3/16”) X 222mm (8-24/32”)
• Peak Power (Watts) 310
• Rated Power (Watts) 55
• Frequency Response 28hz - 25khz
• Sensitivity (Db) 87
• Cone Material Polypropylene
• Surround Material Rubber
• Basket Steel Frame
• Protection Boot No
• Tweeter Type Pei
• Crossover Type 1st Order

Thiele Small Parameters:

• D.C Coil Resistance (Re) (Ohm) 3.3
• Free Air Resonance (Fs) 57.489
• Cone Area (SD) (Cm²) 209
• Vas (L) 22.769
• Vas (CUFT) 0.804
• Compliance (CMS) (?m/n) 367
• Diaphragm Mass (MMD) (Kg) 0.0191
• Force Factor (BL) (Tm) 3.878
• Mechanical Q (QMS) 2.13
• Electrical Q (QES) 1.654
• Total Loudspeaker Q (QTS) 0.931
• Voice Coil Impedance 4 Ohm
