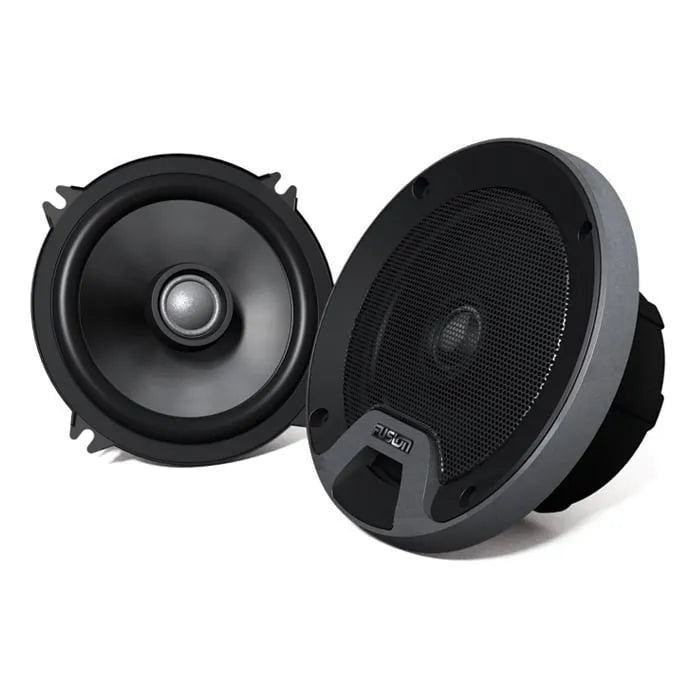

Fusion CP-FR5020 Performance Series 5.25" 2-Way Full Range Speakers

SKU: CPFR5020
Regular price
$69
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Product features

Delivering High Audiophile Performance from Speaker Features Normally Only Found in High-End Home Audio!

Features:

  • Injection molded polypropylene cone - A lighter, thinner yet more rigid cone material.
  • Large magnet assembly - High-efficiency output, high power handling.
  • Silk dome tweeters - Very accurate, high-frequency response tweeters.
  • FFFT ferro fluid-filled tweeters - High heat dissipation - greater reliability.
  • 5"x7" Adapter Plate

Specifications:

  • Basket: Steel Frame
  • Cone Material: IMPP
  • Frequency Response: 35Hz-25kHz
  • Peak Power (Watts): 220
  • Rated Power (Watts): 40
  • Protection Boot: Yes
  • Sensitivity (dB): 88
  • Surround Material: PU

Thiele Small Parameters:

  • Compliance (Cms) (?M/N): 914.263
  • Cone Area (Sd) (cm²): 82
  • D.C. Coil Resistance (Re) (Ohm): 3.2
  • Diaphragm Mass (Mmd) (Kg): 0.00743
  • Electrical Q (Qes): 0.489
  • Force Factor (Bl) (TM): 4.378
  • Free Air Resonance (Fs): 59.395
  • Mechanical Q (Qms): 3.447
  • Total Loudspeaker Q (Qts): 0.428
  • VAS (CuFt): 0.308
  • VAS (L): 8.729
  • Voice Coil Impedance: 4 Ohm

Mounting Dimensions:

  • Mounting Depth: 2-1/4"
  • Mounting Diameter: 4-13/16"
  • Weight: 6.50kg
