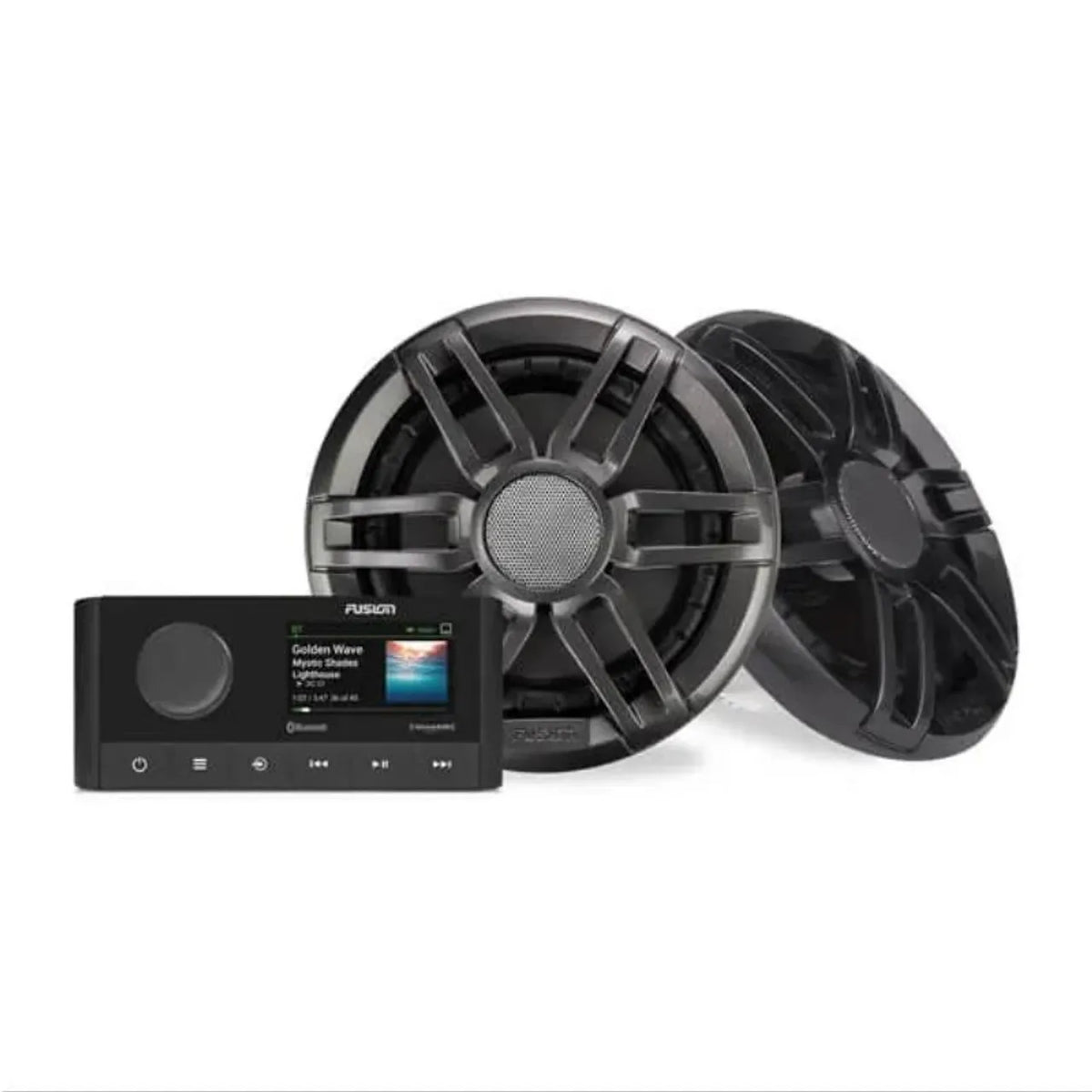

Fusion 010-02250-60 Stereo Speaker Kits MS-RA210 XS Sports Speakers

Everything You Need To Amplify The Moment

IPX6 And IPX7 Ingress Protection

Designed and engineered for the harsh marine environment, the Fusion stereos have an IPX6 and IPX7-rated water-resistant front panel to perform and last on board.

Modern Design And Aesthetics

Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.

Designed And Engineered For The Marine Environment

The Fusion speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.

Modern Design And Aesthetics

Tested to international standards for pressure and water ingress, the Fusion speakers are designed and built for superior quality and robustness.

Quality Materials And Acoustic Engineering

The Fusion speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.

Specifications:

• Physical dimensions (HxWxD) MS-RA210: 2.68″ x 6.18″ x 4.99″ (68 x 157 x 126.6 mm)
• Weight MS-RA210: 12.4 oz (350 g)
• Water rating IPX6 and IPX7 (front panel only, when properly installed)
• Power input 10.8-16 VDC
• Operating temperature range 32° to 122° F (0° to 50° C)
• Current (max.) 15 A
• NMEA 2000® LEN MS-RA210: 1 (50 mA)
• Bluetooth® wireless range Up to 30 ft (10 metres)
• ANT wireless range Up to 10 ft (3 metres)
• Wireless frequencies/protocols Bluetooth 2.4 GHz @ +12 dBm nominal
• Compass-safe distance 5.9″ (150 mm)
• Display MS-RA60: 2.3″ perimeter bonded monochrome dot matrix LCD
• MS-RA210: 2.7″ optically bonded colour LCD
• Built-in amplifier Class-D (minimum 4 Ohm impedance)
• Peak power MS-RA210: 200 W
• MS-RA60: 180 W
• Rated power output (4 Ohm) MS-RA60: 22 W RMS x 4 @ 14.4 V input < 10% THD
• MS-RA210: 26 W RMS x 4 @ 14.4 V input < 10% THD
• Built-in Digital Signal Processing MS-RA210: Yes (with preconfigured DSP profiles)
• Fusion-Link™ control MS-RA60: Yes (with smartphone and Garmin watch)
• MS-RA210: Yes (with MFD, smartphone, and Garmin watch)
• Multi-Zone™ technology 2 zones
• Bluetooth wireless technology Yes
• ANT wireless technology Yes
• SiriusXM-ready MS-RA210: Yes (requires SiriusXM Connect vehicle tuner)
• DAB+ ready MS-RA60: Yes (DAB tuner built-in)
• MS-RA210: Yes (requires DAB100A antenna module)
• NRX remote compatibility MS-RA210: Yes
• Multi-language interface MS-RA60: Dutch, English, French, German, Italian, Spanish
• MS-RA210: Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR/PT), Slovenian, Spanish, Swedish, Thai, Turkish
• Software updates MS-RA60: Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app
• MS-RA210: USB
• Sources MS-RA60: AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only)
• MS-RA210: AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/MTP/SiriusXM-Ready (USA only, requires optional SiriusXM
• Connect vehicle tuner)/DAB+ ready (available in Europe and Australia only)
• Auxiliary input One RCA input (AUX)
• NMEA 2000 MS-RA210: 1 port
• USB 2.0 MS-RA210: 1 port
• SiriusXM satellite radio MS-RA210: 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)
• AM/FM radio One Motorola antenna connector port
• Speaker MS-RA60: 4 x speaker connections (2 zone amplified)
• MS-RA210: 4 x speaker connections (2 zones amplified)
• RCA Pre-out (left, right, and subwoofer) MS-RA60: 1 zone (requires external amplification)
• MS-RA210: 2 zones (requires external amplification)
• Line out MS-RA60: Zone 1 (L + R, requires external amplification)
• MS-RA210: Zone 1, Zone 2 (1 x L + R per zone, requires external amplification)
• Subwoofer out MS-RA60: Zone 1 (requires external amplification)
• MS-RA210: Zone 1, Zone 2 (requires external am
• Physical dimensions (HxWxD) XS Sports Speaker: 6.97″ x 3.27″ (177 x 83 mm)
• Water rating IP65
• Configuration EL Speaker: Full range
• XS Speaker: Coaxial
• Speaker size 6.5″
• Peak power (Watts) EL Speaker: 80 W XS Speaker: 200 W EL Speaker: 20 W
• RMS power (Watts) XS Speaker: 50 W EL Speaker: 88 dB
• Sensitivity (1 watt/1 metre) XS Speaker: 91 dB EL Speaker: 45 Hz-16 kHz
• Frequency response XS Speaker: 80 Hz-18 kHz
• Nominal impedance 4 ohm
• Recommended amplifier power (RMS) EL Speaker: 20-40 W/Ch XS Speaker: 20-150 W/Ch
• Operating temperature range 32° to 122° F (0° to 50° C) EL Speaker: 0.79″
• Voice coil diameter XS Speaker: 1.18″
• Cone material Polypropylene cone with cloth surround
• Tweeter type XS Speaker: Aluminium dome EL Speaker: 100″ (254 cm)
• Compass-safe distance XS Speaker: 122″ (310 cm)
• Mounting diameter clearance EL Speaker: 5.12″ (130 mm) XS Speaker: 5.31″ (135 mm) EL Speaker: 1.69″ (43 mm)
• Mounting depth clearance XS Speaker: 2.64″ (67 mm)
• Sealed enclosure volume XS Speaker: 0.28 cubic ft (8 L)
