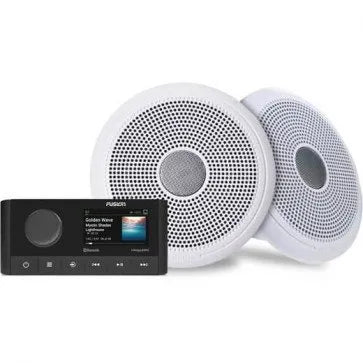

Fusion 010-02250-50 Stereo Speaker Kits MS-RA210 XS Series Classic Speaker White

Everything You Need To Amplify The Moment

Outfit your boat with an exceptional sound system at an outstanding value. A Fusion® MS-RA210 and XS Series classic speaker kit put the perfect soundtrack at your fingertips.

Features:

• Enjoy your music ASAP. Your marine stereo and both speakers come ready to install.
• Easily control music from your compatible Garmin MFD, smart device, or Garmin watch.
• Built-in Class D amplifier brings aboard higher efficiency and greater output.
• Multi-Zone™ Technology makes you the captain of two separate audio zones.
• Grow your audio system with compatible Fusion speakers, subwoofers, and amplifiers.
• World-class stereos optimise your audio.
• Modern Design And Aesthetics
• 6.5” Fusion speakers produce quality sound on the water.
• Designed And Engineered For The Marine Environment
• Designed To Comply With Iso12216
• Quality Materials And Acoustic Engineering

Specifications:

• Physical dimensions (HxWxD) MS-RA60: 2.68″ x 6.18″ x 4.06″ (68 x 156.9 x 103.2 mm)
• MS-RA210: 2.68″ x 6.18″ x 4.99″ (68 x 157 x 126.6 mm)
• Weight MS-RA60: 11.1 oz (316 g)
• MS-RA210: 12.4 oz (350 g)
• Water rating IPX6 and IPX7 (front panel only, when properly installed)
• Power input 10.8-16 VDC
• Operating temperature range 32° to 122° F (0° to 50° C)
• Current (max.) 15 A
• NMEA 2000® LEN MS-RA210: 1 (50 mA)
• Bluetooth® wireless range Up to 30 ft (10 metres)
• ANT wireless range Up to 10 ft (3 metres)
• Wireless frequencies/protocols Bluetooth 2.4 GHz @ +12 dBm nominal
• ANT 2.4 GHz @ +7 dBm nominal
• Compass-safe distance 5.9″ (150 mm)
• Display MS-RA60: 2.3″ perimeter bonded monochrome dot matrix LCD
• MS-RA210: 2.7″ optically bonded colour LCD
• Built-in amplifier Class-D (minimum 4 Ohm impedance)
• Peak power MS-RA210: 200 W
• MS-RA60: 180 W
• Rated power output (4 Ohm) MS-RA60: 22 W RMS x 4 @ 14.4 V input < 10% THD
• MS-RA210: 26 W RMS x 4 @ 14.4 V input < 10% THD
• Fusion-Link™ control MS-RA60: Yes (with smartphone and Garmin watch)
• MS-RA210: Yes (with MFD, smartphone, and Garmin watch)
• Built-in Digital Signal Processing MS-RA210: Yes (with preconfigured DSP profiles)
• Multi-Zone™ technology 2 zones
• Bluetooth wireless technology Yes
• ANT wireless technology Yes
• DAB+ ready MS-RA60: Yes (DAB tuner built-in)
• MS-RA210: Yes (requires DAB100A antenna module)
• SiriusXM-ready MS-RA210: Yes (requires SiriusXM Connect vehicle tuner)
• Multi-language interface MS-RA60: Dutch, English, French, German, Italian, Spanish
• MS-RA210: Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek,
• Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR/PT), Slovenian, Spanish, Swedish, Thai, Turkish
• NRX remote compatibility MS-RA210: yes
• Software updates MS-RA60: Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app
• MS-RA210: USB
• Sources MS-RA60: AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only)
• MS-RA210: AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/MTP/SiriusXM-Ready (USA only, requires optional SiriusXM
• Connect vehicle tuner)/DAB+ ready (available in Europe and Australia only)
• Auxiliary input One RCA input (AUX)
• NMEA 2000 MS-RA210: 1 port
• USB 2.0 MS-RA210: 1 port
• SiriusXM satellite radio MS-RA210: 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)
• AM/FM radio One Motorola antenna connector port
• Speaker MS-RA60: 4 x speaker connections (2 zone amplified)
• MS-RA210: 4 x speaker connections (2 zones amplified)
• RCA Pre-out (left, right, and subwoofer) MS-RA60: 1 zone (requires external amplification)
• MS-RA210: 2 zones (requires external amplification)
• Line out MS-RA60: Zone 1 (L + R, requires external amplification)
• MS-RA210: Zone 1, Zone 2 (1 x L + R per zone, requires external amplification)
• Subwoofer out MS-RA60: Zone 1 (requires external amplification)
• MS-RA210: Zone 1, Zone 2 (requires external amplification)
• Line out MS-RA60: Zone 1 (L + R, requires external amplification)
• Subwoofer out MS-RA60: Zone 1 (requires external amplification)
• Physical dimensions (HxWxD) EL Classic Speaker: 6.93″ x 2.26″ (176 x 57.5 mm)
• EL Sports Speaker: 6.93″ x 2.32″ (176 x 59 mm)
• XS Classic Speaker: 6.97″ x 3.19″ (177 x 81 mm)
• XS Sports Speaker: 6.97″ x 3.27″ (177 x 83 mm)
• Water rating IP65
• Configuration EL Speaker: Full range
• XS Speaker: Coaxial
• Speaker size 6.5″
• Peak power (Watts) EL Speaker: 80 W
• XS Speaker: 200 W
• RMS power (Watts) EL Speaker: 20 W
• XS Speaker: 50 W
• Sensitivity (1 watt/1 metre) EL Speaker: 88 dB
• XS Speaker: 91 dB
• Frequency response EL Speaker: 45 Hz-16 kHz
• XS Speaker: 80 Hz-18 kHz
• Nominal impedance 4 ohm
• Recommended amplifier power (RMS) EL Speaker: 20-40 W/Ch XS Speaker: 20-150 W/Ch
• Operating temperature range 32° to 122° F (0° to 50° C)
• Voice coil diameter EL Speaker: 0.79″
• XS Speaker: 1.18″
• Cone material Polypropylene cone with cloth surround
• Tweeter type XS Speaker: Aluminium dome
• Compass-safe distance EL Speaker: 100″ (254 cm)
• XS Speaker: 122″ (310 cm)
• Mounting diameter clearance EL Speaker: 5.12″ (130 mm)
• XS Speaker: 5.31″ (135 mm)
• Mounting depth clearance EL Speaker: 1.69″ (43 mm)
• XS Speaker: 2.64″ (67 mm)
• Sealed enclosure volume XS Speaker: 0.28 cubic ft (8 L)

What's in the Box:

• MS-RA210 marine stereo
• One pair of XS Series classic white marine speakers
• AM/FM stealth antenna
• 6 ft (2 metre) NMEA 2000® drop cable
• Two 19 ft (6 metre) speaker wires
• Dust cover
• Wiring harnesses and mounting accessories
• Mounting gasket
• Four 6-gauge, self-tapping screws
• Two screw covers
• Power and speaker wiring harness
• Auxiliary-in, line-out, and subwoofer-out wiring harnesses
• 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1″)
