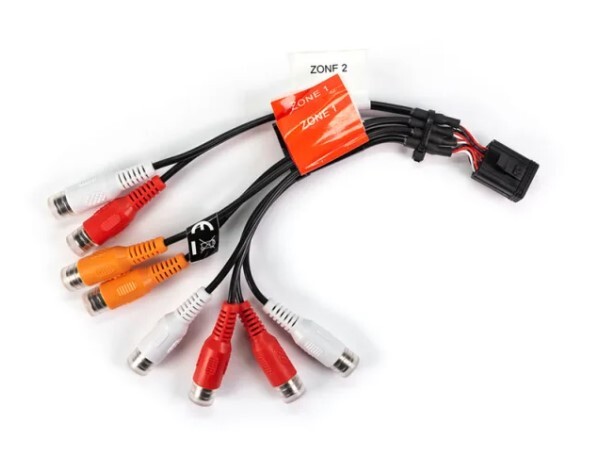

Short loom with red, white and orange RCA plugs fanning out from a multi pin plug
Short loom with red, white and orange RCA plugs fanning out from a multi pin plug
Loom with an orange block, short leads ending in red and white RCA plugs and a black multi pin plug
Loom with an orange block, short leads ending in red and white RCA plugs and a black multi pin plug
Click to open expanded view
FUSION logo

Fusion 010-12812-01 Zone 1&2 Wiring Loom RCA Marine Amplifier Connection

SKU: 0101281201
Price
$29
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Short loom with red, white and orange RCA plugs fanning out from a multi pin plug

Fusion 010-12812-01 Zone 1&2 Wiring Loom RCA Marine Amplifier Connection

$29

Product features

Fusion's 010-12812-01 wiring loom connects a compatible Fusion marine stereo to a Fusion marine amplifier through the Zone 1 and Zone 2 RCA outputs, for amplified speaker or subwoofer zones. It also carries RCA inputs for the AUX 1 source.

What it fixes

Many Fusion stereos have zone outputs on a combined loom, and once the factory lead is lost or damaged you cannot feed an amp. This is the genuine replacement, so each zone gets a clean RCA feed to its amplifier channel and the cockpit, the bow and the flybridge can run at their own volume.

Specifications

Part number 010-12812-01
Function Zone 1 and 2 wiring loom
RCA inputs AUX 1
Use Fusion marine stereo to Fusion marine amplifier
Weight 0.1kg
UPC 753759212292

Compatible stereos

  • Fusion Apollo RA670 and RA770
  • Fusion Apollo WB670
  • Fusion Apollo MS-RA800
  • Fusion Apollo MS-WB675 hideaway
  • Fusion BB100 Black Box
  • Fusion RA210
  • Fusion RA70 series
  • Fusion stereo and speaker kits

Install notes

Run RCA cables away from the main amp power cable and the engine harness to keep alternator whine out. Seal the joins behind the dash or helm, because salty air corrodes RCA plugs.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ

Does it work with any amplifier?

Fusion designed it for Fusion marine amplifiers. The RCA ends will connect to other amps with RCA inputs.

Will it suit my RA670?

Yes, the Apollo RA670 is on the list.

What does AUX 1 do?

It lets you plug an external audio source into the stereo through RCA.
