Product features

Set the Vibe For Your Ride - Seamless Integrated Lighting Control System!

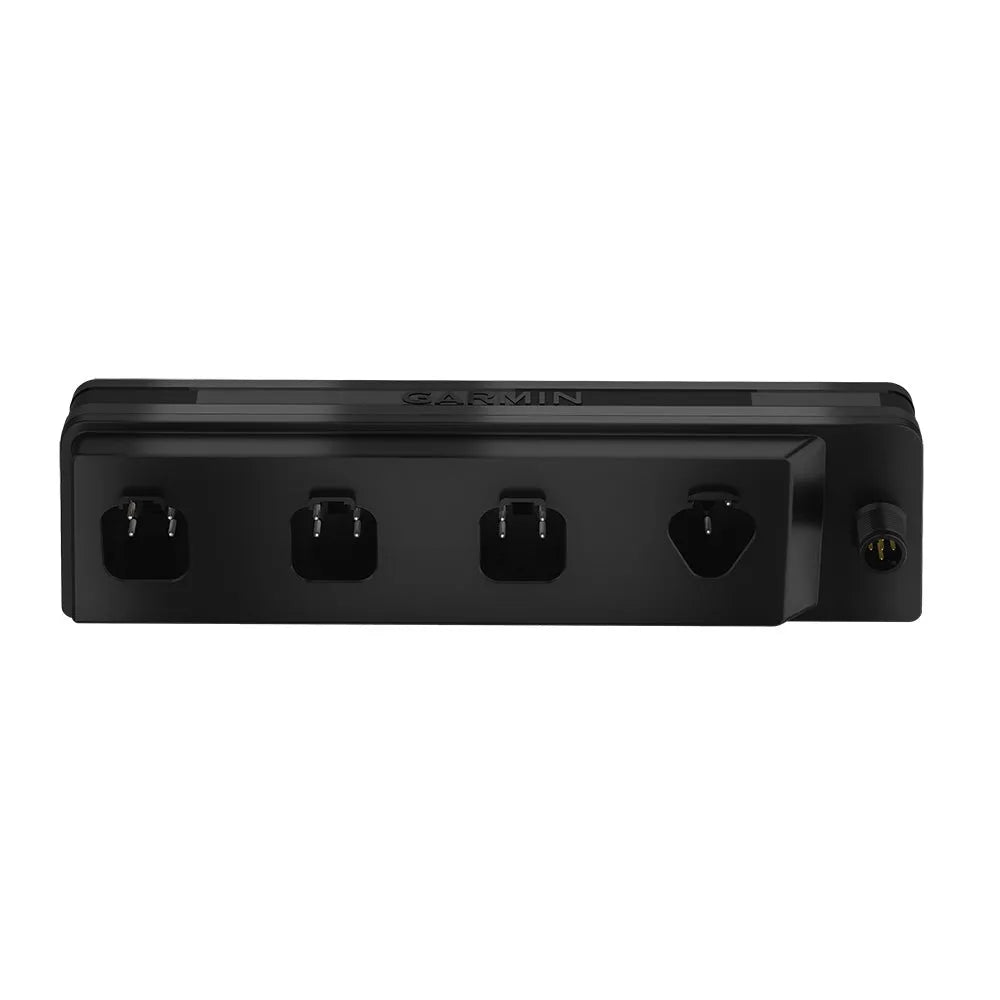

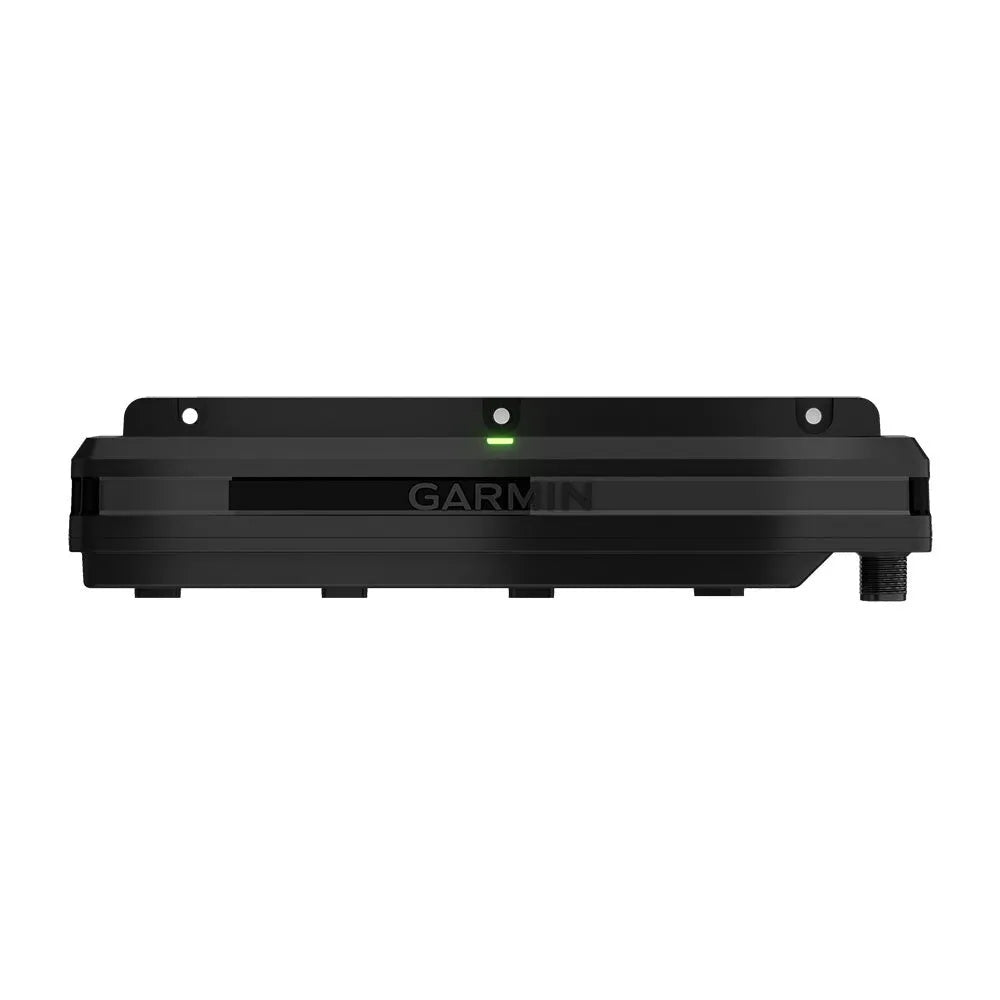

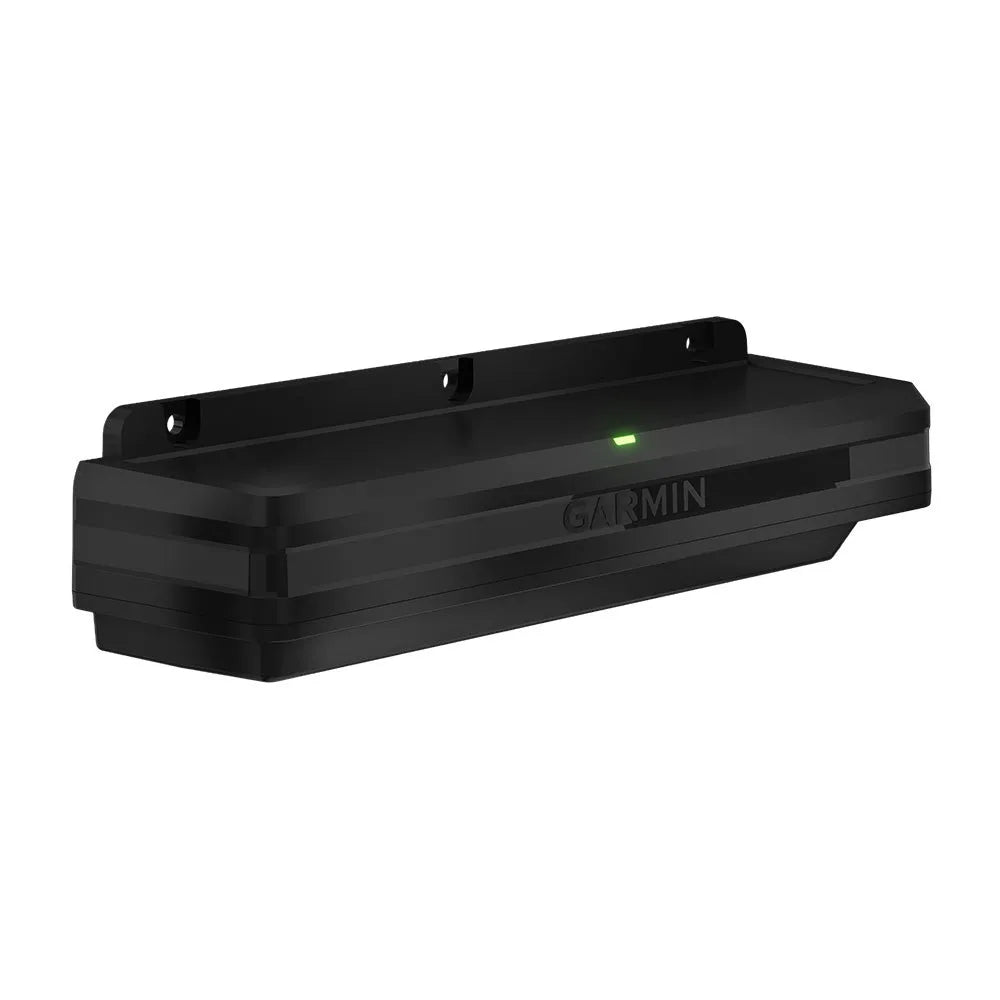

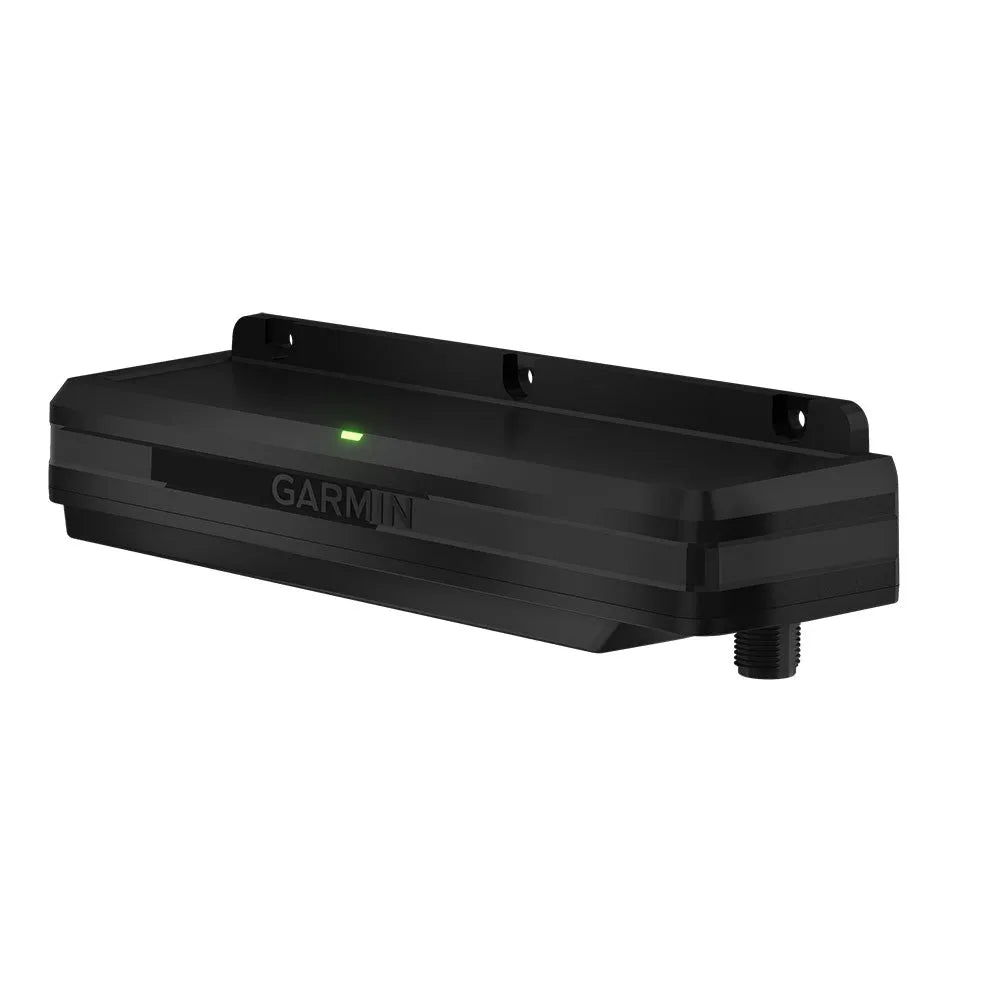

Garmin Spectra™ LC302 LED Control Module
Control LED lights on your boat from your compatible chartplotter or smartphone with the Garmin Spectra light control module (Lights Not Included). Assign and control different light groups for cup holders, speakers, strip or courtesy lights, and more to create your own vibe.

Features:

  • BE THE LIGHT DJ: From bow to stern and everything in between, this module lets you control and set up different light groups and scenes.
  • IN YOUR CONTROL: Control lights over the NMEA 2000® network with your compatible chartplotter or with the ActiveCaptain® App on your compatible smartphone.
  • MATCH THE BEAT: See the beat by syncing the LED lights to the music track with the audio sync feature.
  • FUSION® AND JL AUDIO COMPATIBLE: Control LED lighting on Fusion and JL audio boat speakers and subwoofers plus wake tower speakers (Sold Separately).
  • GROW THE SYSTEM: Add more lights after the initial installation with a scalable system.
  • RUGGED DESIGN: Built to withstand the abuse of life on the water (In accordance with IP66/IP67 Ratings)

Specifications:

  • Input Voltage:
    10.8 ~ 16V (12V System)
    21.6 ~ 32V (24V System)
  • Input Current: 6A (Max)
  • Output Current: 2A (Max) Per Output Connector
  • NMEA 2000® LEN: 2 (≤ 70mA)
  • Over-Voltage Protection: Yes
  • Over-Current Protection: Yes
  • LED Connection Types: RGB, RGBW, CRGBW, Single-Channel
  • Lighting Modes: Colour Pick, Audio Sync (Colour Blend/Audio Spectrum), Effects
  • Premium Control & Setup Via: MFD or ActiveCaptain® App.
  • Control Via: Fusion Apollo™ Stereo
  • Water Rating: IP66/IP67
  • Operating Temperature Range: 0° ~ 50°C (32° ~ 122°F)
  • Compass-Safe Distance: 20cm
  • Cable Construction: Multistrand Tinned Copper with White PVC Outer Jacket
  • Dimensions: (W) 197mm x (H) 52mm x (D) 47mm
  • Weight: 0.16kg
