SKU: EPBC1290

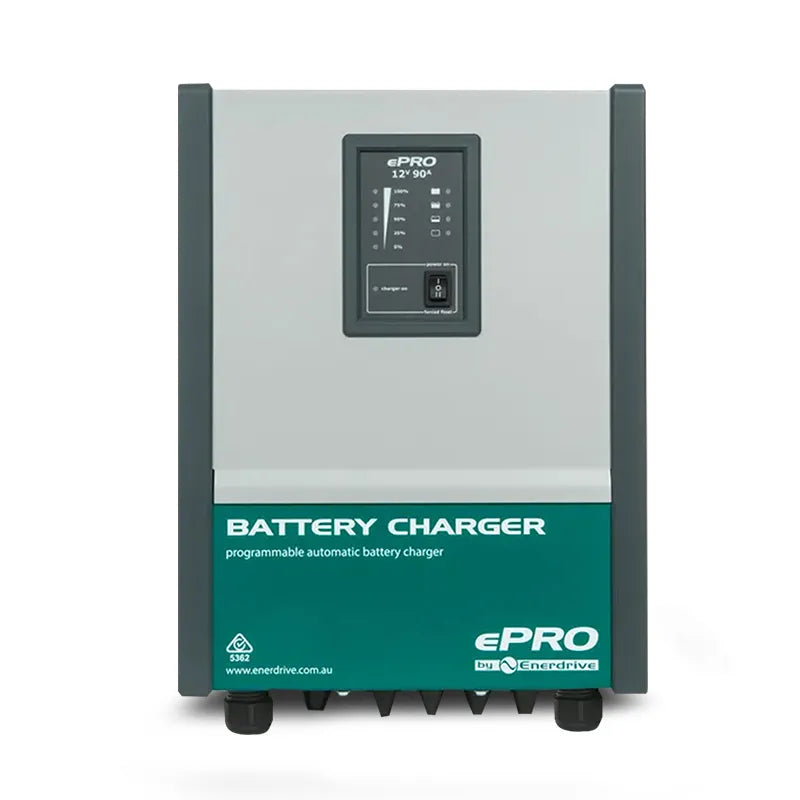

ePRO EPBC-1290 12V/90Amp Battery Charger

Price
$2,163
Buy now, pay later
  • image
  • image
  • image
In stock and ready for shipping
Product features

Developed to Perform Without Problems in the Most Demanding Environments

Enerdrive have a new programmable ePRO battery charger that takes battery charging technology to new heights. The ePRO battery chargers are equipped with the latest power conversion techniques to set new reliability and efficiency standards.

The ePRO 12V 90A, 24V 50A and 80A models combine new power conversion techniques and the best available parts with years of power electronics design expertise. The ePRO battery chargers are developed to perform without problems in the most demanding environments. A unique active rectifier output stage ensures unmatched efficiency figures. Combined with active PFC, the ePRO battery chargers are very energy efficient. This will reduce running costs and guarantees a maximum charge current per AC Watt.

All ePRO battery chargers are equipped with advanced 4 stage charging algorithms and temperature compensation for optimal battery performance and long lifetimes. Users are also allowed to create a custom charging algorithm for their specific battery, using the “Dashboard” software. ePRO battery chargers are also suitable to charge Lithium Iron Phosphate (LiFePo4) batteries. The standard available TBSLink port enables remote control and readout via the optional TBS Remote Controls.

All ePRO battery charger models, are equipped with 3 full current isolated outputs, allowing simultaneous charging of 3 battery banks. Additionally, these models allow up to 6 units to be connected in parallel, reaching charging current levels of up to 540Amps!

ePRO applications
The features and built quality of the ePRO programmable battery chargers allow these chargers to be used in a wide range of applications. Some of these applications include industrial-, marine- and recreational vehicle power systems.

Features:

  • Fully programmable
  • Robust design
  • Universal input with PFC
  • 3 full current outputs
  • Protected against high temp., short circuit, reverse polarity
  • Parallel connectable (up to 6 units)
  • Variable-speed fan for silent operation
  • Intelligent charging algorithms
  • Remote on/off and alarm relay connections

Specifications:

  • AC input voltage 100-260Vac / 47-63Hz / PF > 0.9
  • Full load power consumption 1550VA
  • AC input current (115V/230V) 13.5A / 6.8A
  • Total DC output current 90A
  • Nominal DC output voltage 12Vdc
  • Number of full current outputs 3 (internally isolated)
  • Charge characteristic IUoUoP, intelligent 4-stage, temp. compensated
  • Standard absorption voltage 14.4Vdc
  • Standard float voltage 13.5Vdc
  • Standard equalize voltage 15.8Vdc
  • Supported battery types Flooded / Gel / AGM / LiFePO4 / Custom
  • Recommended battery capacity 180-900Ah
  • DC current draw (charger off) < 0.1mA
  • Operating temp. Range -10°C…+55°C (humidity max. 90% non condensing)
  • Storage temp. Range -20°C…+70°C (humidity max. 90% non condensing)
  • Cooling Variable speed fan
  • ePRO Link-enabled Yes
  • Protections Low AC input voltage, output short circuit, high temperature, battery overcharging and reverse polarity (fuse)
  • Indications Power on, output current, state of charge, error
  • DC output connections 4x M8 bolts
  • AC input connections Screw terminals
  • Enclosure body size (HxWxD) 370 x 271 x 132mm
  • Total weight 6.2kg
  • Protection class IP21 (mounted in upright position)
  • Standards CE marked. EMC : EN55016-2-1(/A1), EN55016-2- 3(/A1), EN 61000-4-2(3/4/5/6). Safety: EN60335-1, EN60335-2-29 Complies with AS/NZS 60335.2.29 Including Australian deviations.
