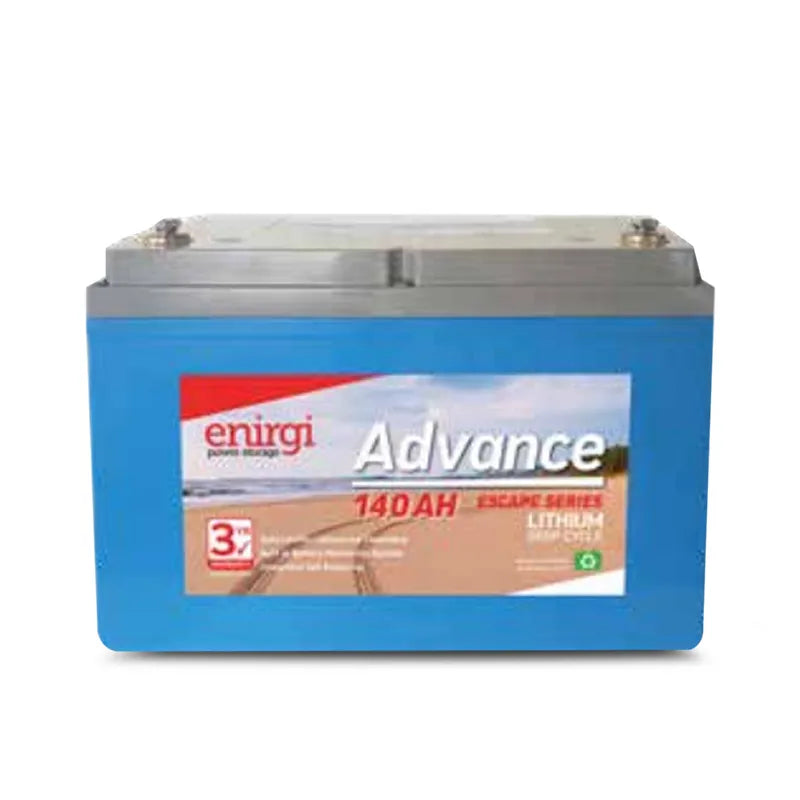

Enirgi AL-12.8-140 Escape Series Lithium Cell Deep Cycle Battery (12.8V, 140Ah)

Advanced Battery Technology for Cyclic & Motive Power Applications

Enirgi Escape Lithium Cell 140Ah Deep Cycle Battery
Rechargeable Lithium LiFePO4 high power modules to handle anything SLA can. Get 100% capacity utilisation at less than half the weight. Advanced battery technology for cyclic and motive power applications such as mobility, recreational caravan & RV, marine, medical equipment, solar applications and more.

WHY ADVANCE ESCAPE?

• Proven Quality - Advance Escape is manufactured in a fully integrated facility, to international standards of excellence in quality, environment and safety: ISO9001, ISO14001 and ISO45001.
• Certified Safety - Advance Escape has been certified and tested to the highest international safety standards at both cellular and battery level: UL1642, UN38.3

WHY LITHIUM ION FERROUS PHOSPHATE (LiFePO4)

• The safest of all the known lithium ion technologies globally
• Smaller than any other commercial size battery type
• Less than half the weight of a lead-acid battery
• Wider temperature range and higher temperature
• Higher cycle life than any other commercial sized battery
• Ultra low self discharge makes it ideal for intermittent use
• LiFePO4 is the most robust chemistry under extreme conditions
• Environmentally friendly: LiFePO4 batteries have no poisonous or harmful substances, whether in production or in use.
• Best direct replacement for deep cycle duty.

Applications:

• Caravans, Camping & 4WD.
• Marine
• Solar/Wind Energy Storage.
• UPS & Back-Up Power.
• Electric Vehicles & Mobility.

Specifications:

• Nominal Voltage: 12.8V
• Nominal Capacity: 140 ± 5Ah (0.2C)
• Nominal Energy: 1790Wh
• Internal Resistance: ≤ 35mΩ
• Cycle Life: BMS: Over Charge, Over Discharge, & Over & Under Temperature Protection, & Cell Balancing.
  • ≥ 2,000 @ 0.2C (100% DOD)
  • ≥ 3,200 @ 0.2C (80% DOD)
  • ≥ 5,600 @ 0.2C (50% DOD)
• Charge Voltage: 14.4 ± 0.15V
• Charge Profile: CC @ 0.2C to 14.4V, then CV @ 14.4V. Current ≤ 0.01C (CC/CV)
• Charge Current: 30A
• Max. Charge Current:75A
• Continuous Current: 75A
• Max Continuous Current: ≤ 100A
• Max Pulse Current: 100-450A (≤ 20ms)
• Cut-Off Voltage: About 10.0V
• Charge Temperature: 0ËšC to 45ËšC
• Discharge Temperature: -20ËšC to 60ËšC
• Storage Temperature: 0ËšC - 40ËšC
• Material System: LiFePO4
• Case Material: Plastic
• Weight: 16.5 ± 0.5kg
• Terminal: M8
• Warranty: 3 Years * Private Use * Do Not Use Under Bonnet.
